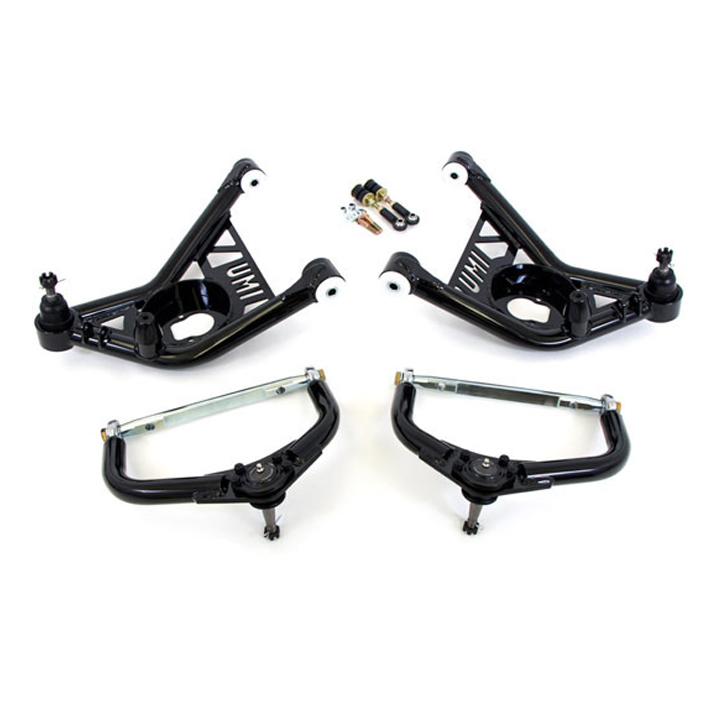

1970-1981 Camaro UMI Front Control Arm Kit, Delrin, Adjustable, Taller Ball Joints, Black 265256-1-B

UMI's 2nd Generation F-body performance control arms are perfect for the Camaro enthusiast seeking to improve the performance and blur the lines between race and street use. This kit features caster relocation of both the upper and lower ball joints to enhance steering feel and improve high speed stability. As designed, the caster potential is 8+ degrees. The spindle pin location remains unchanged so fender clearance is like stock. The adjustable upper control arms reduce the need for shims in addition to providing an easy way to achieve desired camber and caster settings. They also include a tall ball joint to improve camber gain. Upper and lower control arms are designed to allow proper suspension movement and approved steering response using UMI built Delrin bushings and Teflon lined rod ends. The heavy duty lower spring bucket accepts factory and aftermarket coil springs as well as the popular hybrid coilover units. Laser cut UMI reinforcement plates add a great appearance and excellent strength. UMI's double shear swivel sway bar end links are included and work nicely with UMI P/N 4035 sway bar and also most aftermarket stock eyelet type sway bars. Available in UMI red or gloss black powder coat. 100% designed, manufactured and raced with pride in Philipsburg, PA - USA.
Features:

• Performance a-arm kit is a direct bolt-in for 1970-1981 Camaro & Firebird
• Adjustable upper a-arm uses rod ends for easy alignment
• Total of 8+ degrees caster potential
• Upper ball joint moved rearward to add 5-6 degrees caster potential
• Lower ball joint relocated forward to increase caster 2 degrees, which improves steering feel and straight line stability
• Rod ends feature superior friction reduction for quick response
• UMI built Delrin bushings improve steering response and reduce deflection
• 1/2 inch taller upper ball joint to improve camber gain and traction during cornering
• Upper and lower a-arms built from USA made DOM steel tubing
• Heavy duty spring bucket accepts factory and aftermarket coil springs
• Spring bucket is compatible with popular hybrid coils such as Viking and QA1
• Double shear swivel sway bar mounts and hardware work with UMI-4035 and most other factory eyelet style sway bars
• Made in the USA

Manufacturer Part Number : 265256-1-B
