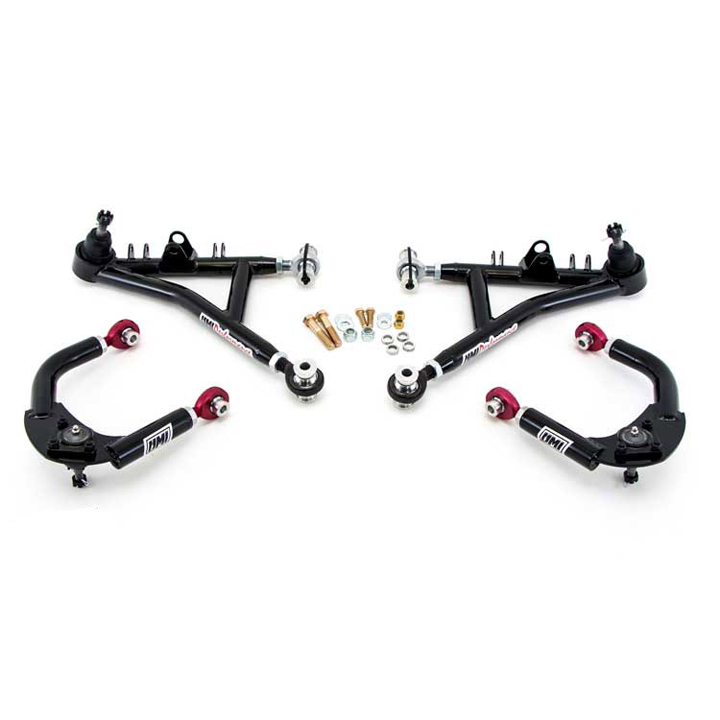

1993-2002 Camaro UMI Front Control Arm Kit, Adjustable, Chromoly, Drag - Black 231716-B

UMI's drag specific control arms for 1993-2002 Camaro use every trick we know to shave weight, reduce friction and still provide plenty of strength. On the upper arms, our industry leading high clearance geometry tucks into the wheel well just like stock to afford maximum suspension travel when dropping from a wheel stand. Strong CrMo tube construction and a streamlined ball joint plate combined with high strength aluminum racing rod ends save one half pound per side over the stamped stock arms. The lowers feature CrMo construction and our newly redesigned tube configuration ensures performance and safety whether you're landing a wheel stand or powering through the traps at 160+. They accept most major brands of racing coilovers with the 1/2 inch x 1-1/4 inch wide mount. There are provisions for a travel limiting chain and also an optional sway bar tab for light street use. These arms save 5-1/2 lbs. per side, come assembled with premium ball joints, race quality rod ends and are ready to bolt on.
Features:

• Direct bolt-on for 1993-2002 GM F-body
• 11 lbs. of weight savings
• +2 degrees additional caster with relocated upper ball joint pad
• 1-1/4 inch USA CrMo tubing
• Heavy duty aluminum racing rod ends in uppers
• Race quality rod ends in lowers including high misalignment rod end on rear strut
• Uses racing industry standard 1/2 inch shock mount, up to 1-1/4 inches wide
• Maintains factory track width
• Heavy duty double reinforced ball joint cup
• Sway bar mount installed. Use UMI-2649 optional sway bar end link kit
• Limiter chain mount installed
• Factory ball joint installed
• 100% manufactured, tested and raced out of Philipsburg, PA - USA

Manufacturer Part Number : 231716-B
