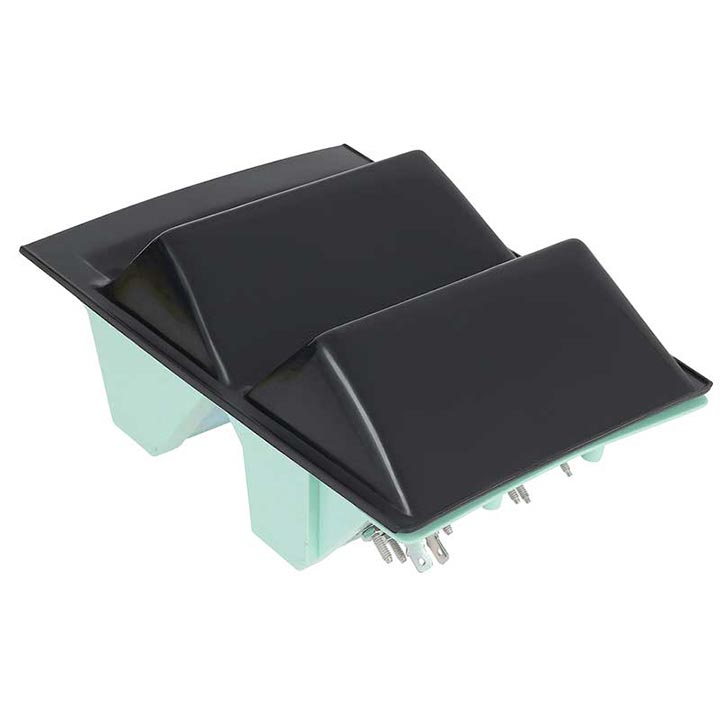

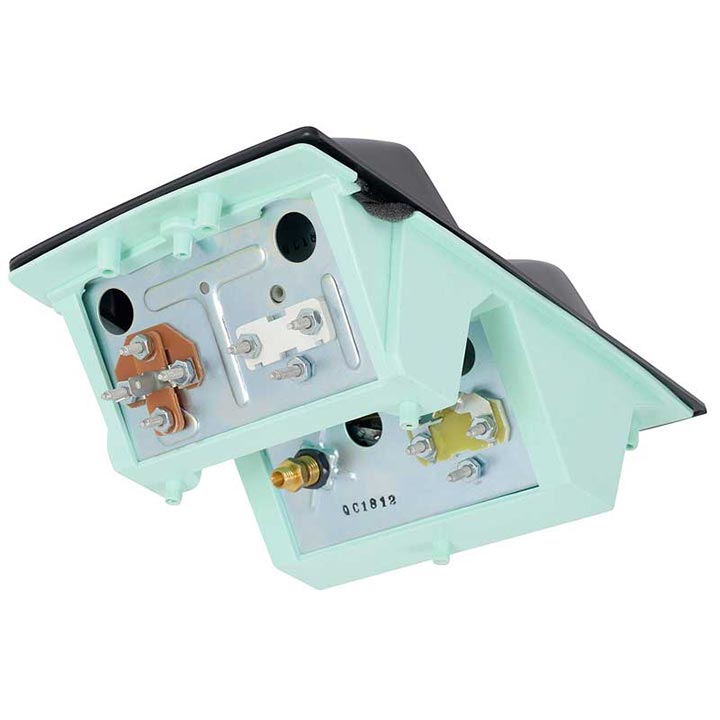

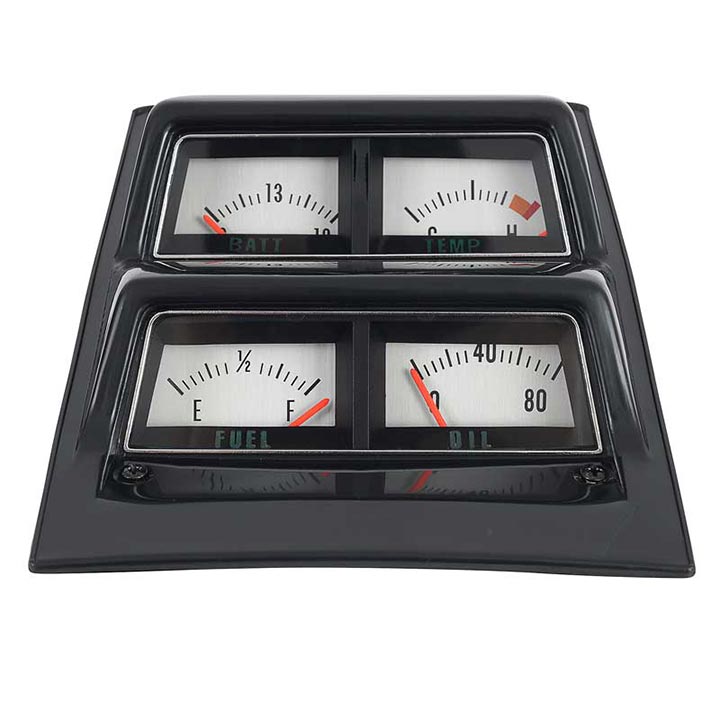

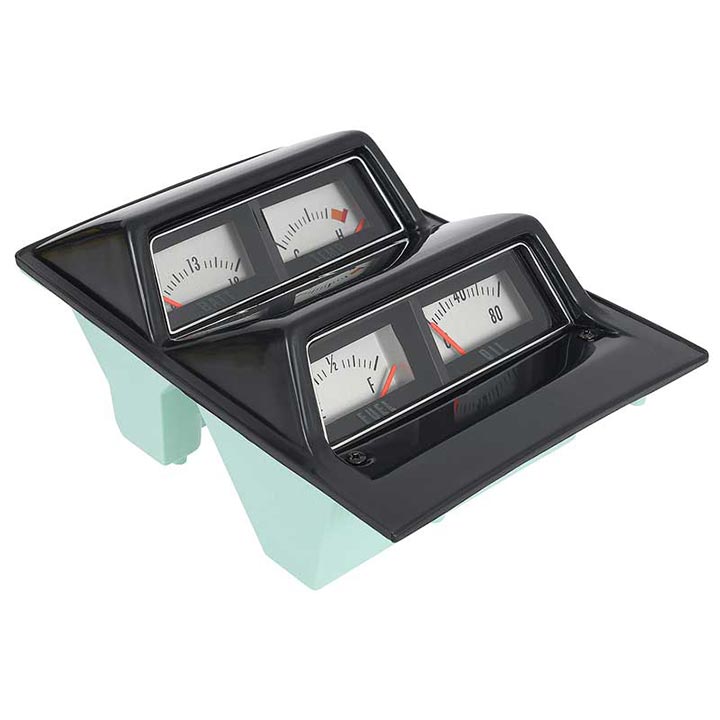

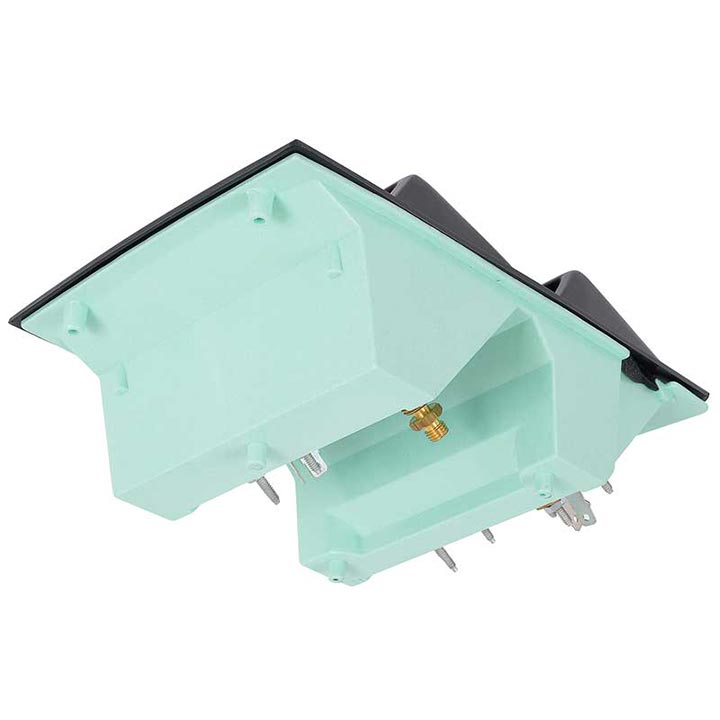

1968-1969 Camaro Console Gauge Assembly ; with Volt Meter ; Silver Face ; Pre-Assembled 3952635V

Get the high performance look in your 1968-69 Camaro with this complete, pre-assembled gauge cluster assembly. Reproduction of the original silver-faced console gauge assembly designed for use on 1968-69 Camaro models. Manufactured by OER, this fully pre-assembled and ready-to-install console gauge assembly features the temperature gauge, battery gauge, oil pressure gauge and fuel gauge.

Each console gauge is an exact replication of the original GM unit offering authenticity and functionality. This gauge assembly will fit and install on original GM or OER reproduction consoles. The auxiliary gauge package was normally found on high performance models, including Z/28, however, this gauge pack can be installed in any 1968-69 Camaro with a console (wiring harness may be required). Each individual gauge component is also available separately. Note: Can also be installed in 1968-76 Chevy II and Nova models originally equipped with a center console.

• 1 - Fuel Gauge (silver face)
• 1 - Temperature Gauge (silver face)
• 1 - Oil Gauge (silver face)
• 1 - Battery Gauge (Volt Gauge) (silver face)
• 1 - Console Gauge Cover (with chrome trim)
• 1 - Console Gauge Base (translucent green)
• 1 - Console Gauge Mounting Connectors (set)
• 1 - Battery / Temperature Gauge Bezel
• 1 - Fuel / Oil Gauge Bezel
• 2 - Console Gauge Lenses
• 1 - Front Gauge Mounting Plate
• 1 - Rear Gauge Mounting Plate

Manufacturer Part Number : 3952635V

Part Notes:

If console gauges are being added to a non-console vehicle, new wiring will be needed. The oil line and screw kit are sold separately
