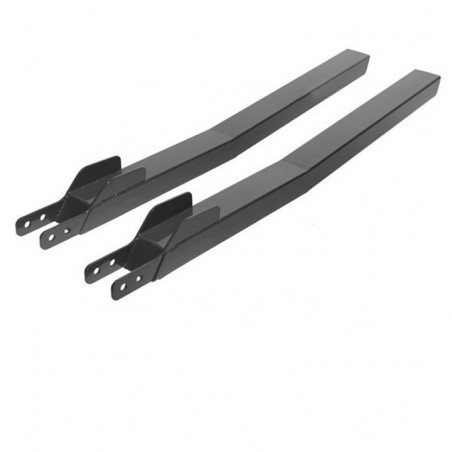

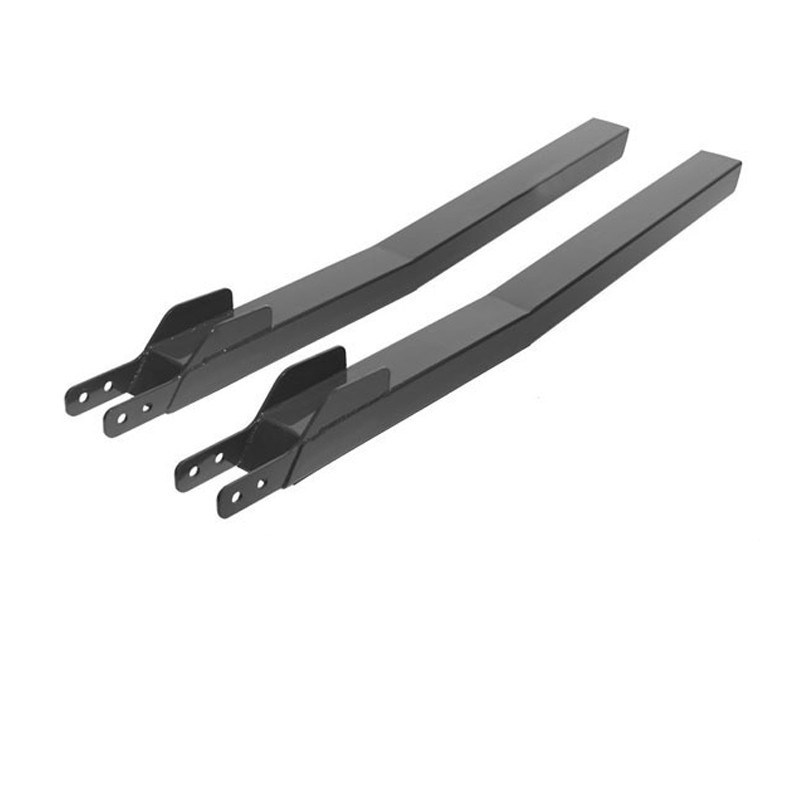

1962-1967 Chevy 2 Nova Subframe Connectors

Detroit Speed's uniquely designed weld in subframe connectors increase your car's stiffness by connecting the front subframe to the rear frame rails. DSE's subframe connectors are fabricated from 2" x 3" x 0.120" wall rectangular steel tubing. Laser cut brackets are included that attach the rear of the subframe to the connector for an easy, strong, and simple welded joint. Unlike others, the DSE subframe connectors are barely visible from underneath the car. The rear of the connector is tapered to attach to the rear frame rails and also has a laser cut slot that conforms to the rear seat floor pan. The connectors are bent and TIG welded in a fixture for accuracy and repeatability. DSE's subframe connectors do not interfere with seat attachment hardware or the installation and removal of the rear leaf spring pocket. The subframe connectors can be installed on convertibles. Additionally, the molded factory carpet will still fit over the subframe connectors. DSE's weld-in connectors are supplied with templates, pictures, and detailed instructions for installation.

  • Ground Up Part # DSE010104
  • Manufacturer Part # 10104
  • Brand DETROIT SPEED
  • Sold As: Pair
  • Part Eligible For Discounting No
  • Part Eligible For Free Shipping No
  • Shipping Details: This item ships UPS Ground.

Retail Price

$220.95

Your Price

$198.95

You Save: 10%

9.96%)


Detroit Speed's uniquely designed weld in subframe connectors increase your car's stiffness by connecting the front subframe to the rear frame rails. DSE's subframe connectors are fabricated from 2" x 3" x 0.120" wall rectangular steel tubing. Laser cut brackets are included that attach the rear of the subframe to the connector for an easy, strong, and simple welded joint. Unlike others, the DSE subframe connectors are barely visible from underneath the car. The rear of the connector is tapered to attach to the rear frame rails and also has a laser cut slot that conforms to the rear seat floor pan. The connectors are bent and TIG welded in a fixture for accuracy and repeatability. DSE's subframe connectors do not interfere with seat attachment hardware or the installation and removal of the rear leaf spring pocket. The subframe connectors can be installed on convertibles. Additionally, the molded factory carpet will still fit over the subframe connectors. DSE's weld-in connectors are supplied with templates, pictures, and detailed instructions for installation.

Part Notes: If not installing the Chevy 2 Quadralink you will need to purchase the DSE torque boxes.

Parts Application:

Average Customer Review: Not yet rated

Click here to write an review and share your thoughts with others.

Part Notes: If not installing the Chevy 2 Quadralink you will need to purchase the DSE torque boxes.
