1991 Camaro Restoration Information

1991 Camaro Specifications

 Images: Hemmings

The 1991 model-year Camaros hit the market early in 1990, cutting the previous model year short. But with early arrival came another upgrade to the Camaro lineup in the form of a facelift for the model.

Ground effects were part of facelifts for both RS and Z28 sub-models, while the more performance oriented Z28 also received a high-rise spoiler, hood blisters and new wheels.

In 1991, a new B4C Special Service option debuted, which was basically an RS Camaro with a Z28 drivetrain produced for law enforcement and military agencies. Less than 600 of these cars were produced.

Having gained some notice, the 1LE option combination returned in 1991, this time available only on G92 Performance Axle-equipped Z28 coupes with the C41 base ventilation option, as the IROC-Z was no longer around. Once again, this option combination set the 1LE cars up to be bare-bones track cars. Still, only 478 were produced.

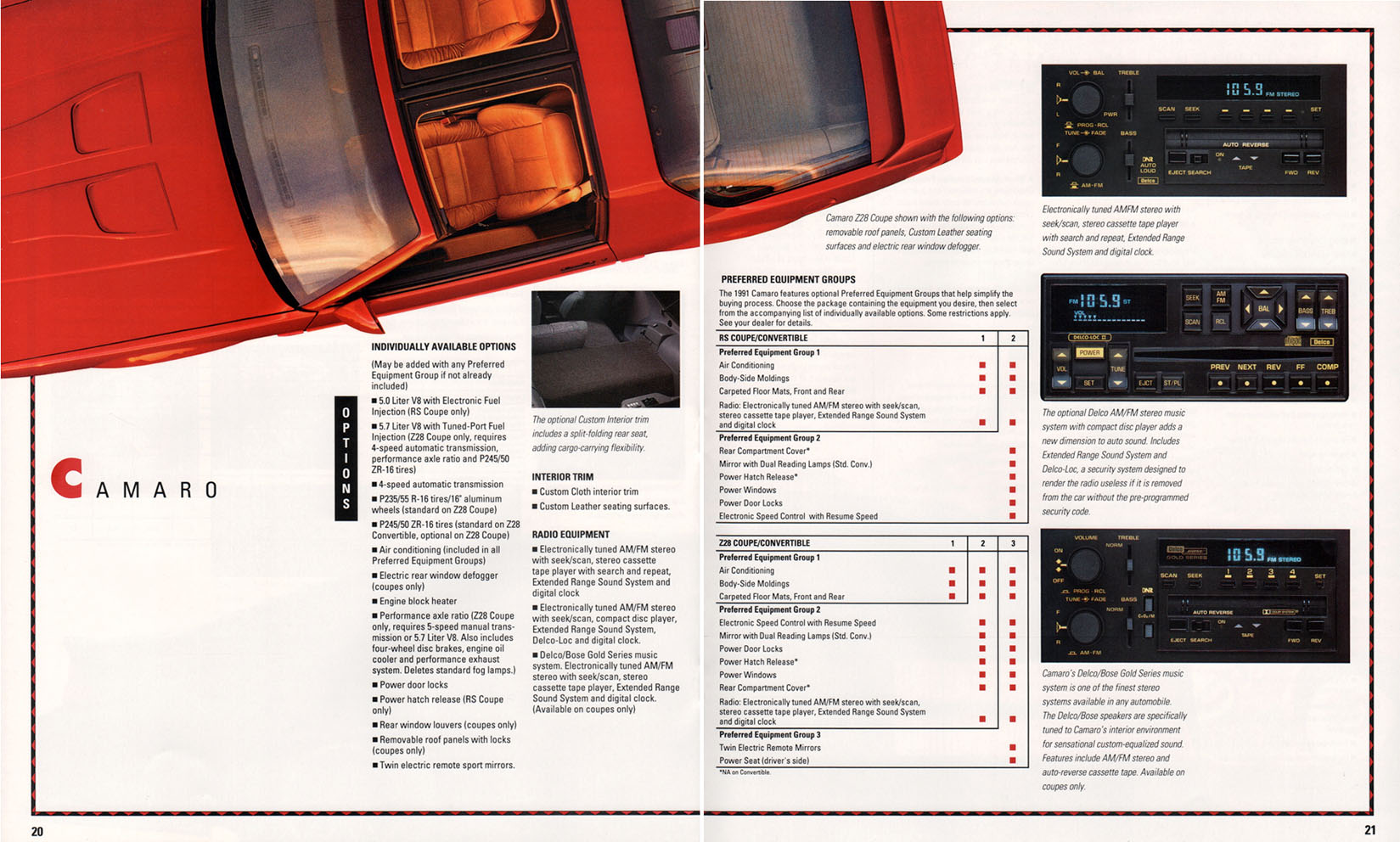

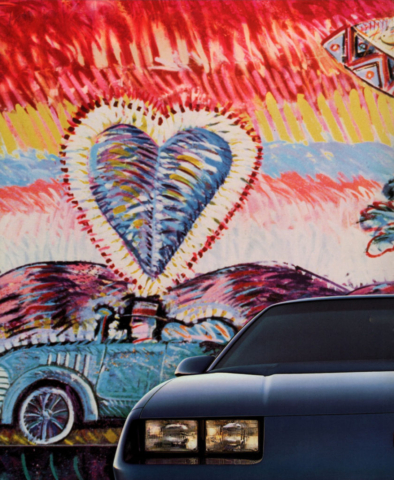

1991 Camaro OEM Brochure


1991 Camaro Model Options:


Sub-Models: (all 2-door models, convertibles now available)
  • Camaro RS
  • Z28
  • 1LE (not really a sub-model but a car produced based on a specific group of options)
  • B4C

Engine Options:
  • 191ci  V6
  • 305ci  V8 170hp
  • 305ci  TPI V8 up to 230hp
  • 350ci  L98 TPI V8 245hp

Transmission Options:
  • Borg-Warner 5-speed manual
  • TH700-R4 4-speed automatic with overdrive

1991 Camaro Production:
  • 31,722 V6
  • 69,116 V8
  • 100,838 Total


Vehicle Identification Number Example:
1G1FP23EXML100001 thru 1G1FP23EXML200838

  • Fifth digit is model level: P = Camaro (all models)
  • Sixth digit is body style: 2 = Hatchback Coupe, 3 = Convertible.
  • Eighth digit is engine code: F = 305ci V8 (LB9), E = 305ci V8 (L03), T = 191ci V6 (LH0), 8 = 350ci V8 (B2L or L98)
  • Ninth digit is check digit and varies.
  • Tenth digit is model year: M = 1991
  • Eleventh digit is assembly plant code: L = Van Nuys
  • Last six digits increased one for each car built.

Dimensions:
  • Length: 192.6″
  • Height: 50.4″
  • Width: 72.4″
  • Wheelbase: 101.0″

1991 Camaro Engine Codes & Specs

Available Engine Specifications

Type

Size

Fuel Injection

RPO

Horsepower

Torque

Compression Ratio

Application

V6

191 cid / 3.1L

MFI

LH0

140 hp @ 3600 RPM

180 lb-ft @ 3600 RPM

8.5:1

RS (Base Engine)

V8

305 cid / 5.0L

TBI

L03

170 hp @ 4000 RPM

255 lb-ft @ 2400 RPM

9.3:1

RS

V8

305 cid / 5.0L

TPI

LB9

205 hp @ 4200 RPM

285 lb-ft @ 3200 RPM

9.3:1

Z28 (Base Engine)

V8

305 cid / 5.0L

TPI

LB9

230 hp @ 4200 RPM

300 lb-ft @ 3200 RPM

9.3:1

Z28 (Manual Only)

V8

350 cid / 5.7L

TPI

L98

245 hp @ 4400 RPM

345 lb-ft @ 3200 RPM

9.3:1

Z28 (Auto Only)

Note

  • MFI = multi-port fuel injection
  • TBI = throttle body injection
  • TPI = tuned-port injection
6-Cylinder Engine Codes

Code

Size

RPO

Transmission

CDC

191 cid

LH0

Automatic Transmission

CFA

191 cid

LH0

Manual Transmission

CFD

191 cid

LH0

8-Cylinder Engine Codes

Code

Size

RPO

Transmission

CLC

305 cid

Manual Transmission

CLD

305 cid

Automatic Transmission

CLF

305 cid

Manual Transmission

CLH

305 cid

Automatic Transmission

CLJ

305 cid

CLW

305 cid

Manual Transmission

CMB

350 cid

L98

Automatic Transmission

CMP

350 cid

L98

Automatic Transmission

1991 Camaro Transmission Codes

Warner 5-Speed Manual Codes

Chevrolet #

RPO

Type

10142027

MB1

Borg-Warner 5-Speed Manual

10142025

MK6

Borg-Warner 5-Speed Manual

10042026

M39

Borg Warner 5-Speed Manual

Turbo Hydramatic 700-R4 Codes

Code

Engine Size

Note

FB

191 cid

MD8

FT

305 cid

MD8 / TBI

FZ

305 cid

MD8 / FMI

FU

350 cid

MD8

1991 Camaro Factory Options

Regular Production Option (RPO)

RPO Description Quantity 1991 Price Est. Current Price
1FP87 Camaro RS Coupe 79,854 $12,180.00 $23,143.79
1FP87 Camaro RS Convertible 5,329 $17,960.00 $35,562.72
1FP87 Camaro Z28 Coupe 12,452 $15,445.00 $30,582.75
1FP87 Camaro Z28 Convertible 3,203 $20,815.00 $41,215.93
1LE Special Performance Components Package 478 n/a n/a
AG9 Power Seat, Driver Side 11,325 n/a n/a
AU3 Power Door Locks 66,830 $175.00 $346.52
A31 Power Windows 65,179 n/a n/a
A90 Power Hatch Release 66,251 $50.00 $99.01
B2L Engine, 350 ci, 245 hp V8 (Z28 Coupe Only) 6,080 $300.00 $594.03
B4C Special Service Package ($3,950 w/o RPO B2L) 592 $3,135.00 $6,207.64
B34 Floor Mats, Carpet Insert, Two Front 94,792 n/a n/a
B35 Floor Mats, Carpet Insert, Two Rear 94,792 n/a n/a
B84 Moldings, Body Side 95,236 n/a n/a
CC1 Roof Panels, Removable Glass 38,836 $866.00 $1,714.77
C49 Defogger, Rear Window 57,202 $160.00 $316.82
C60 Air Conditioning 97,433 $805.00 $1,593.99
DC4 Mirror w/ Dual Reading Lamps 57,035 n/a n/a
DE1 Louvers, Rear Window 4,892 $210.00 $415.82
DG7 Mirrors, Electric Twin Remote 26,390 $91.00 $180.19
D42 Cover, Rear Compartment Cargo Area 57,452 n/a n/a
G80 Rear Axle, Limited Slip 16,333 $100.00 $198.01
G92 Rear Axle, Performance Ratio (Z28 Coupe Only) 6,813 $466.00 $922.73
J65 Brakes, Power Front Disc and Rear Disc 4,938 $179.00 $354.44
KC4 Cooler, Engine Oil (Z28 Coupe Only) 7,234 $110.00 $217.81
K05 Heater, Engine Block 3,321 $20.00 $39.60
K34 Speed Control, w/ Resume 65,145 n/a n/a
LB9 Engine, 305 ci, 210 hp V8 (Base Z28) 9,996 n/c n/c
L03 Engine, 305 ci, 170 hp V8 (for RS Coupe) 53,040 $350.00 $693.04
MX0 Transmission, Automatic w/ Overdrive 85,321 $515.00 $1,019.76
N96 Aluminum Wheels, 16 Inch 53,249 $520.00 $1,029.66
QLC Tires, P245/50ZR16 Blackwall 11,651 n/a n/a
QMT Tires, P235/55R16 Blackwall 41,598 n/a n/a
QPH Tires, P215/65R15 All Season Blackwall 47,589 n/a n/a
UL5 Radio, Delete 796 -$165.00 -$326.72
UM7 Radio, Stereo, Clock, Seek/Scan 3,622 n/a n/a
UN6 Radio, Stereo, Cassette, Clock, Seek/Scan 86,516 n/a n/a
UU8 Radio, Stereo, Delco Bose, Clock, Seek/Scan 103 n/a n/a
UX1 Radio, Stereo, Cassette, Clock, S/S, EQ 1,593 n/a n/a
U1C Radio, Compact Disc System w/ Clock 8,208 n/a n/a
U75 Antenna, Power 1,603 $70.00 $138.61
YF5 Emission Equipment, Required for California 14,374 $100.00 $198.01
FCAB RS Coupe Base Group n/a n/c n/c
FCA1 RS Coupe Group 1 n/a $1,060.00 $2,098.91
FCA2 RS Coupe Group 2 n/a $1,847.00 $3,657.26
CCAB RS Convertible Base Group n/a n/c n/c
CCA1 RS Convertible Group 1 n/a $1,060.00 $2,098.91
CCA2 RS Convertible Group 2 n/a $1,705.00 $3,376.08
FZAB Z28 Coupe Base Group n/a n/c n/c
FZA1 Z28 Coupe Group 1 n/a $900.00 $1,782.10
FZA2 Z28 Coupe Group 2 n/a $1,847.00 $3,657.26
FZA3 Z28 Coupe Group 3 n/a $2,228.00 $4,411.68
CZAB Z28 Convertible Base Group n/a n/c n/c
CZA1 Z28 Convertible Group 1 n/a $900.00 $1,782.10
CZA2 Z28 Convertible Group 2 n/a $1,660.00 $3,286.98
CZA3 Z28 Convertible Group 3 n/a $2,021.00 $4,001.80

Note
Option prices are retail for base model. Prices could be reduced or option could be had at no charge if it was included as standard equipment on the Z28.

1991 Camaro Paint Codes

Exterior Paint Codes

Paint / WA Code

Color

Quantity

Model

Interior Availability

10 / 9567

Arctic White

18,313

Rs-Rsc-Z-Zc

Bk-Br-G-R

23 / 9537

Medium Maui Blue

3,873

Rs-Rsc

Bk-G

37 / 9238

Dark Bright Teal

22,093

Rs-Rsc

Bk-G

41 / 8555

Black

12,801

Rs-Rsc-Z-Zc

Bk-Br-G-R

75 / 9540

Brilliant Red

9,784

Rs-Rsc-Z-Zc

Bk-Br-G-R

81 / 8774

Bright Red

19,082

Rs-Rsc-Z-Zc

Bk-G-R

87 / 9536

Gunmetal

3,715

Rs-Rsc

Bk-G-R

98 / 9591

Ultra Blue

11,038

Rs-Rsc-Z-Zc

Bk-Br-G

Interior Trim Codes

Color Code

Interior Style

19B

Black Standard Cloth

19C

Black Custom Cloth

66B

Light Brown Standard Cloth

66C

Light Brown Custom Cloth

662

Light Brown Leather

73B

Red Standard Cloth

73C

Red Custom Cloth

732

Red Leather

82B

Gray Standard Cloth

82C

Gray Custom Cloth

822

Grey Leather

Abbreviations: Bk = Black, Br = Light Brown, cc = Custom Cloth, G = Gray, le = Leather, R = Red, Rs = RS Coupe, Rsc = RS Convertible, sc = Standard Cloth, Z = Z28 Coupe, Zc = Z28 Convertible

Disclaimer
The numbers in this have been compiled from many sources to make these pages as correct as possible. There is no guarantee that the numbers are complete or accurate, therefore, we cannot accept any liability or responsibility for damages incurred from the use of this information.
