1984 Camaro Restoration Information

1984 Camaro Specifications

The Camaro saw few changes in 1984 when it came to the body, however, a number of interior changes were made. The dashboard for all Camaros was upgraded and now featured smaller controls for a sleeker look.

There was also a new overhead console and pod-mounted controls for things like cruise control, windshield wipers and headlights. The radio was mounted on a swivel so it could be made to face either the driver or passenger.

In the Berlinetta, electronic gauges replaced the standard instrument cluster.

The Z28 remained virtually unchanged except for the fiberglass hood on the L69-equipped models, which was replaced with a similar steel version.

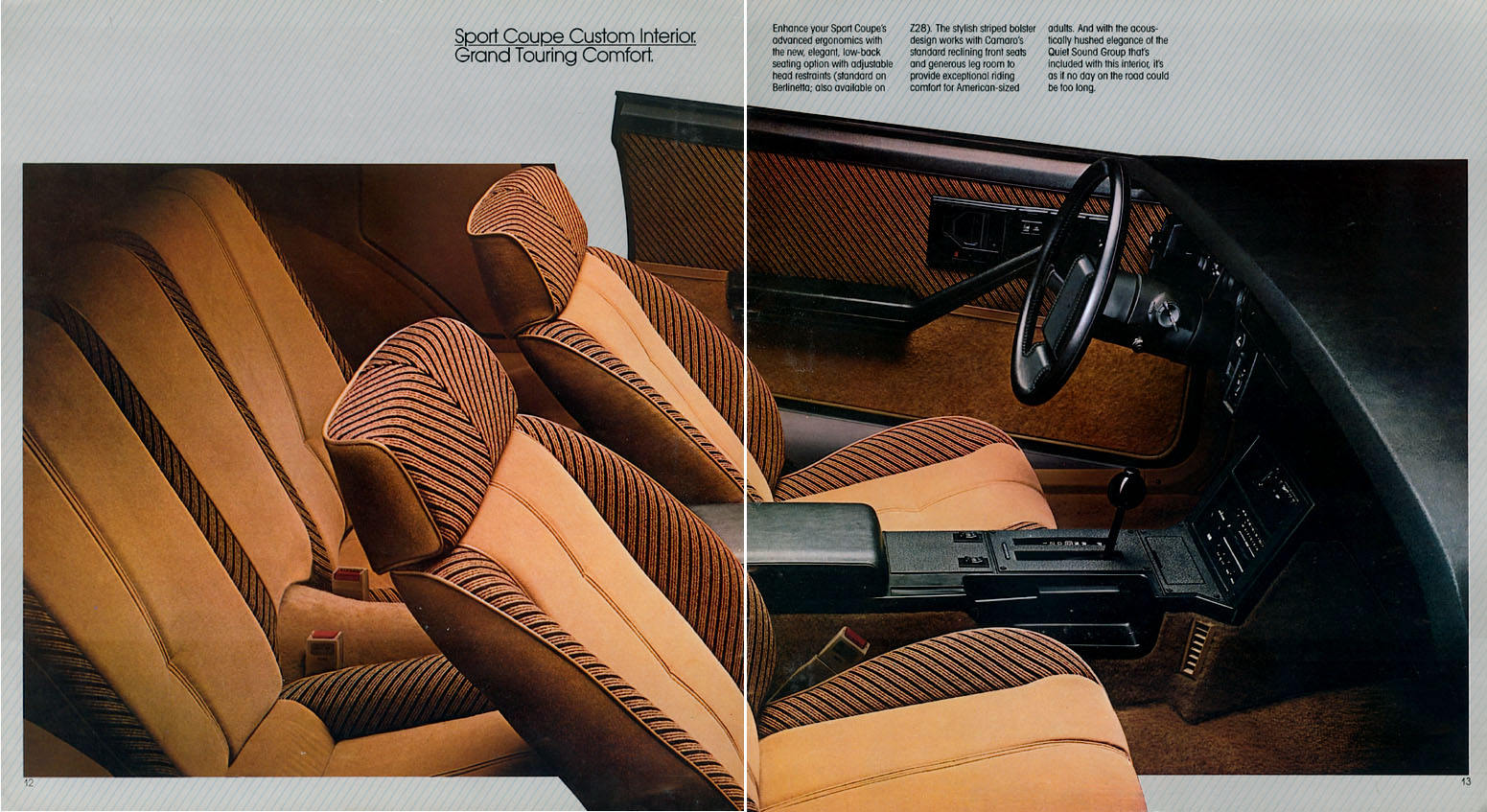

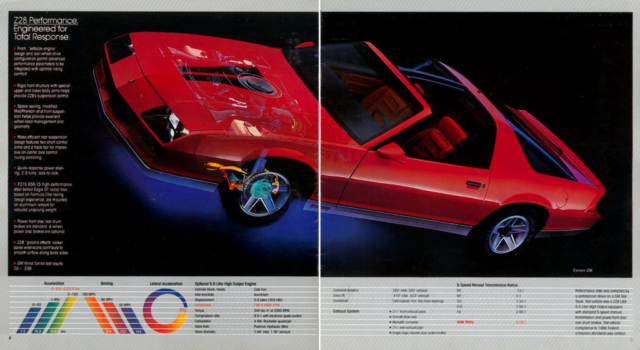

1984 Chevrolet Camaro OEM Brochure


1984 Camaro Model Options:


Sub-Models: (all 2-door models)

  • Sport Coupe
  • Berlinetta
  • Z28


Engine Options:

  • 151ci LQ9 4-cylinder (Sport Coupe Base)
  • 173ci LC1 V6 (Berlinetta Base, Sport Coupe Optional)
  • 305ci LG4 V8 145hp (Carbureted; Z28 Base, Sport Coupe and Berlinetta Optional)
  • 305ci L69 V8 190hp (Fuel Injected; Z28 Optional starting in April 1983)


Transmission Options:

  • Borg-Warner 5-speed manual
  • TH700-R4 4-speed automatic with overdrive
1984 Camaro Production:
  • 10,687 4-Cyl
  • 98,471 V6
  • 152,433 V8
  • 261,591 Total

Vehicle Identification Example: 1G1AP87HXEN100001

  • Fifth digit is model level: P = Sport Coupe, Z28 Sport Coupe, S = Berlinetta
  • Eighth digit is engine code: 1 = 173ci V6 (LC1), 2 = 151ci 4-cyl (LQ9), G = 305ci V8 (L69), H = 305ci V8 (LG4)
  • Tenth digit is model year: E = 1984
  • Eleventh digit is N for Norwood assembly, L for Van Nuys.
  • Last six digits increased one with each car built at each plant.

Dimensions:
  • Length: 187.8″
  • Height: 49.8″
  • Width: 72.0″
  • Wheelbase: 101.0″

1984 Camaro Ads

1984 Camaro Model Option Breakouts

Z28 Special Performance Package

Modified McPhearson Strut, Special chassis bracing. Full Instrumentation. Special front fascia with integral airdam. Ground effects rockers.

Total Production:

  • 100,899

Engine:

Base engine was LG4 305 w/ 4 barrel Quadrajet. Dual exhaust.


Transmission:

4 speed (RPO MM4) w/ 3.42:1 low standard. TH-200c (RPO MX1) automatic optional. Mandatory for LU5 until midyear when MM4 4 speed with 2.88 low became available.


Clutch:

10.34 inches


Rear Axle:

Positraction (G80) manditory when equiped with 4 wheel disc brakes.


Brakes:

J65 4 wheel disc brakes available.


Suspension:
  • Stiffer bracing and bushing material than base Camaro.
  • 58/32 N/mm Front/Rear Spring Rate (SC = 58/18, F41 = 58/18)
  • 31/21 mm Front/Rear Sway bar diameter (SC = 27/12, F41 = 29/12)

Steering:

7 ply-joint vs 4 ply in base Camaro improves rag joint stiffness and offers better angular deflection. Recirculating-ball power steering with fast 12.7:1 ratio, plus limited boost to improve road feel.


Wheels & Tires:

5 spoke aluminum 15 x 7 inch. Goodyear P215/65R-15 white letter , steel belted radials.



1984 Camaro Engine Codes & Specs

Available Engine Specifications

Type

Size

Carb/Fuel Injection

RPO

Horsepower

Torque

Compression Ratio

Application

I4

151 cid / 2.5L

TBI*

LQ9

92 hp @ 4000 RPM

134 lb-ft @ 2800 RPM

9.0:1

Sport Coupe (Base Engine)

V6

173 cid / 2.8L

1x2bbl

LC1

107 hp @ 4800 RPM

145 lb-ft @ 2100 RPM

8.5:1

Berlinetta (Base Engine), Sport Coupe

V8

305 cid / 5.0L

1x4bbl

LG4

150 hp @ 4000 RPM

240 lb-ft @ 2400 RPM

8.6:1

Z28 (Base Engine)

V8

305 cid / 5.0L

1x4bbl

L69/HO

190 hp @ 4800 RPM

240 lb-ft @ 3200 RPM

9.5:1

Z28

*Denotes Throttle Body Injection

4-Cylinder Engine Codes

Code

Size

RPO

Transmission

Notes

Z3F

151 cid TBI

LQ9

Manual Transmission

Z3H

151 cid TBI

LQ9

Automatic Transmission

Z5F

151 cid TBI

LQ9

Manual Transmission

6-Cylinder Engine Codes

Code

Size

RPO

Transmission

Notes

C3A

173 cid 1x2bbl

LC1

Manual Transmission

Export

C3B

173 cid 1x2bbl

LC1

Automatic Transmission

Export

C3C

173 cid 1x2bbl

LC1

Manual Transmission

Export

C3D

173 cid 1x2bbl

LC1

Automatic Transmission

Export

SAC

173 cid 1x2bbl

LC1

Manual Transmission

SAD

173 cid 1x2bbl

LC1

Automatic Transmission

8-Cylinder Engine Codes

Code

Size

RPO

Transmission

Notes

C4C

305 cid 1x4bbl

Automatic Transmission

Export

C4D

305 cid 1x4bbl

Manual Transmission

Export

SDN

305 cid 1x4bbl

Automatic Transmission

SDR

305 cid 1x4bbl

Manual Transmission

SUH

305 cid 1x4bbl

Manual Transmission

SUJ

305 cid 1x4bbl

Automatic Transmission

SXB

305 cid 1x4bbl

Manual Transmission

California Emissions

Note
Codes SDN, SDR and SUJ used in all fifty states.
Codes Z3F, Z3H and Z5F used in all fifty states plus Canada.

1984 Camaro Transmission Codes

Manual Transmissions

Code

Type

Plant

R

4-Speed Manual (Saginaw)

Muncie

5-Speed Manual

Warner

Turbo Hydramatic 700-R4

Code

Engine Size

Note

PQ

151 cid I4

MD8

YH

173 cid V6

MD8

Y7

173 cid V6

MD8

YW

305 cid V8

MD8

YF

305 cid V8

MD8

YG

305 cid V8

MD8

YP

305 cid V8

MD

Y8

305 cid V8

MD8

1984 Camaro Manual Transmission Ratios



LQ9

LQ9

LC1

LG4

L69

C.I.

151

151

173

305

305

First Gear

3.50:1

3.76:1

3.50:1

2.95:1

2.95:1

Second Gear

2.48:1

2.18:1

2.69:1

1.94:1

1.94:1

Third Gear

1.66:1

1.42:1

1.39:1

1.34:1

1.34:1

Fourth Gear

1.00:1

1.00:1

1.00:1

1.00:1

1.00:1

Fifth Gear

0.72:1

0.78:1

0.73:1

0.73:1

Reverse

3.50:1

3.76:1

3.39:1

2.76:1

2.76:1

Clutch

9.69

9.69

9.69

10.34

10.34

Axle Ratio S

3.42:1

3.73:1

3.42

3.23:1

3.73:1

Axle Ratio P

3.73:1

1984 Camaro 700-R4 Automatic Transmission Ratios



LQ9

LC1

LG4

L69

First Gear

3.06:1

3.06:1

3.06:1

3.06:1

Second Gear

1.63:1

1.63:1

1.63:1

1.63:1

Third Gear

1.00:1

1.00:1

1.00:1

1.00:1

Fourth Gear

0.70:1

0.70:1

0.70:1

0.70:1

Reverse

2.29:1

2.29:1

2.29:1

2.29:1

Torque Converter Dia

9.65

9.65

11.75

11.75

Axle Ratio S

3.73:1

3.23:1

3.08:1

3.73:1

Axle Ratio P

3.23:1

Axle Ratio Key

  • S = Standard Ratio
  • P = Performance Ratio (G92)

    1984 Camaro Rear Axle Codes

    Code

    Axle Ratio

    Notes

    4PR

    3.42:1

    Locking

    6EB

    3.73:1

    6EC

    3.73:1

    6EP

    3.42:1

    Locking

    6EQ

    3.23:1

    6ER

    3.23:1

    6ES

    3.08:1

    6ET

    3.08:1

    6EU

    3.08:1

    Locking

    6EV

    3.08:1

    6EV

    3.23:1

    6EW

    3.23:1

    6EX

    3.23:1

    6HF

    3.23:1

    6HG

    3.23:1

    6HH

    3.23:1

    6HJ

    3.08:1

    Locking

    6HK

    3.08:1

    Locking

    6HL

    3.23:1

    Locking

    6HM

    3.23:1

    Locking

    6HN

    3.23:1

    Locking

    6HO

    3.42:1

    Locking

    6HP

    3.73:1

    Locking

    6HR

    3.73:1

    Locking

    6HS

    3.73:1

    Locking

    6JH

    3.23:1

    6JJ

    3.42:1

    6JK

    3.73:1

    6JM

    3.73:1

    6JQ

    3.73:1

    Locking

    6JZ

    3.23:1

    Locking

    6KK

    3.73:1

    6KM

    3.73:1

    6PJ

    3.42:1

    6PK

    3.73:1

    6PM

    3.73:1

    6PQ

    3.73:1

    Locking

    6PZ

    3.08:1

    Locking

    1984 Camaro Factory Options

    Regular Production Option (RPO)

    RPO Description Quantity 1984 Price Est. Current Price
    1FP87 Camaro Sport Coupe, 4-Cylinder 127,292 $7,995.00 $19,914.40
    1FS87 Camaro Berlinetta Coupe, 6-Cylinder 33,400 $10,895.00 $27,137.88
    1FP87 Camaro Z28 Sport Coupe, 8-Cylinder 100,899 $10,620.00 $26,452.90
    1A3 Special Olympics Package 3,722 n/a n/a
    AG9 Power Seat, Driver Side 44,340 $215.00 $535.53
    AU3 Power Door Locks 100,242 $125.00 $311.36
    A01 Tinted Glass, All Windows 240,666 $110.00 $273.99
    A31 Power Windows 130,522 $185.00 $460.81
    A90 Power Hatch Release 130,528 $40.00 $99.63
    BS1 Quiet Sound Group 24,838 $82.00 $204.25
    BX5 Moldings, Black Roof Drip 141,281 $29.00 $72.23
    B34 Floor Mats, Carpet Insert, Two Front 160,936 $20.00 $49.82
    B35 Floor Mats, Carpet Insert, Two Rear 153,371 $15.00 $37.36
    B48 Luggage Compartment Trim 38,827 $164.00 $408.50
    B84 Moldings, Body Side 156,111 $55.00 $137.00
    B91 Moldings, Door Edge (Black) 52,762 $15.00 $37.36
    CC1 Roof Panels, Removable Glass 90,278 $825.00 $2,054.96
    CD4 Windshield Wipers, Intermittent 100,008 $50.00 $124.54
    C25 Rear Window Wiper, w/ Washer 12,268 $120.00 $298.90
    C49 Defogger, Rear Window 171,461 $140.00 $348.72
    C60 Air Conditioning 196,120 $730.00 $1,818.33
    C67 Air Conditioning, Electronic (Berlinetta Only) 31,746 $730.00 $1,818.33
    DG7 Mirrors, Electric Twin Remote 26,354 $139.00 $346.23
    DK6 Console, Roof 33,274 $50.00 $124.54
    D27 Cover, Locking Rear Storage 20,952 $80.00 $199.27
    D35 Mirrors, Sport Right and Left Remote Exterior 118,709 $53.00 $132.02
    D42 Cover, Rear Compartment Cargo Area 85,694 $69.00 $171.87
    D80 Spoiler (included w/ Z28) 81,869 $69.00 $171.87
    F41 Suspension, Sport 17,211 $49.00 $122.05
    G80 Rear Axle, Limited Slip 17,837 $95.53 $237.95
    G92 Axle, Performance Ratio (Z28 Only) 834 $21.00 $52.31
    J65 Brakes, Power Front Disc and Rear Disc 17,494 $179.00 $445.86
    K05 Heater, Engine Block 8,119 $20.00 $49.82
    K34 Speed Control, w/ Resume 127,582 $175.00 $435.90
    LC1 Engine, 173 ci, 107 hp V6 (Std. Berlinetta) 98,471 $250.00 $622.71
    LG4 Engine, 305 ci, 150 hp V8 (Std. Z28) 99,976 $550.00 $1,369.97
    L69 Engine, 305 ci, 190 hp V8 (Optional Z28 Only) 52,457 $530.00 $1,320.15
    MM5 Transmission, 5-Speed Manual 47,441 $125.00 $311.36
    MX0 Transmission, Automatic w/ Overdrive 68,844 $525.00 $1,307.70
    N33 Tilt Steering Column 197,638 $110.00 $273.99
    P01 Wheel Covers, Full 7,396 $52.00 $129.52
    QHW Tires, P205/70R14 White Letter, Steel Radial 24,155 $146.00 $363.67
    QHX Tires, P205/70R14 Blackwall, Steel Radial 7,350 $58.44 $145.57
    QHY Tires, P205/70R14 White Stripe, Steel Radial 19,710 $124.44 $309.96
    QMZ Tires, P195/75R14 White Stripe, Steel Radial 57,676 $62.00 $154.43
    QYZ Tires, P215/65R15 Blackwall (Credit w/ Z28) 52,440 -$92.00 -$229.16
    TR9 Lighting, Auxiliary 107,123 $72.00 $179.34
    TT5 Headlamps, Halogen Highbeam 78,338 $10.00 $24.91
    UA1 Battery, Heavy Duty 100,404 $26.00 $64.76
    UL5 Radio, Berlinetta Delete 181 -$331.00 -$824.47
    UT4 Radio, Stereo, Tape, Clock, S/S, EQ (Berlinetta) 27,657 $203.00 $505.64
    U05 Horns, Dual (Std. Berlinetta) 26,631 $12.00 $29.89
    U21 Instrumentation, Special 27,853 $149.00 $371.14
    U35 Clock, Quartz 1,840 $35.00 $87.18
    U63 Radio, AM 9,526 $112.00 $278.98
    U69 Radio, AM/FM 12,940 $171.00 $425.94
    U73 Antenna, Fixed Mast 6,890 $41.00 $102.13
    U75 Antenna, Power 35,238 $60.00 $149.45
    U81 Speakers, Two Rear 6,554 $30.00 $74.73
    V08 Cooling, Heavy Duty 16,640 $70.00 $174.36
    YE1 Radio, AM/FM Stereo 44,673 $302.00 $752.24
    YE2 Radio, AM/FM Stereo Cassette, Clock, Seek/Scan 38,531 $605.00 $1,506.97
    YE4 Radio, AM/FM Stereo w/ Cassette & Clock 68,146 $402.00 $1,001.32
    YF1 Radio, AM/FM Stereo 19,252 $263.00 $655.10
    YF5 Emission Equipment, Required for California 29,451 $99.00 $246.59
    ZJ7 Rally Wheels 114,347 $112.00 $278.98

    Note
    Option prices are retail for base model. Prices could be reduced or option could be had at no charge if it was included as standard equipment on the Z28 or Berlinetta model.

    1984 Camaro Paint Codes

    Exterior Paint Codes

    Paint Code

    Color

    Quantity

    Model

    Interior Availability

    11

    White

    36,930

    Bc-Spc-Zc

    B-Br-C-Ch-Chro-Sg

    15

    Silver

    19,987

    Bc-Spc-Zc

    B-C-Ch-Chro-Sg

    19

    Black

    38,585

    Bc-Spc-Zc

    C-Ch-Chro-Sg

    22

    Light Blue

    14,886

    Bc-Spc

    B

    27

    Dark Blue

    28,082

    Spc-Zc

    B

    59

    Beige

    16,120

    Bc-Spc-Zc

    Br-C-Ch

    62

    Light Brown

    13,862

    Bc-Spc

    Br

    65

    Dark Gold

    13,428

    Bc-Spc-Zc

    C-Ch

    67

    Dark Brown

    8,198

    Spc-Zc

    Br

    75

    Red

    45,749

    Bc-Spc-Zc

    C-Ch-Chro-Sg

    82

    Charcoal

    25,764

    Bc-Spc-Zc

    C-Ch-Chro-Sg

    Interior Trim Codes

    Color Code

    Interior Style

    17B

    Charcoal Standard Cloth

    17C

    Charcoal Custom Cloth

    17D

    Charcoal Conteur Custom Cloth

    17E

    Charcoal Conteur Standard Cloth

    17N

    Charcoal Custom Vinyl

    17R

    Charcoal Standard Vinyl

    22B

    Blue Standard Cloth

    22C

    Blue Custom Cloth

    22D

    Blue Conteur Custom Cloth

    22E

    Blue Conteur Standard Cloth

    22N

    Blue Custom Vinyl

    22R

    Blue Standard Vinyl

    60B

    Sandstone Gray Standard Cloth

    60C

    Sandstone Gray Custom Cloth

    60N

    Sandstone Gray Custom Vinyl

    60R

    Sandstone Gray Standard Vinyl

    64B

    Camel Standard Cloth

    64C

    Camel Custom Cloth

    64R

    Camel Standard Vinyl

    67B

    Brown Standard Cloth

    67C

    Brown Custom Cloth

    67D

    Brown Conteur Custom Cloth

    67E

    Brown Conteur Standard Cloth

    67N

    Brown Custom Vinyl

    67R

    Brown Standard Vinyl

    Abbreviations: B = Blue, Br = Brown, Bc = Berlinetta Coupe, C = Camel, cc = Custom Cloth, ccc = Conteur Custom Cloth, Ch = Charcoal, Chro = Charcoal w/ Red-Orange Trim, csc = Conteur Standard Cloth, cv = Custom Vinyl, sc = Standard Cloth, Sg = Sandstone Gray, Spc = Sport Coupe, sv = Standard Vinyl, Zc = Z28 Sport Coupe

    Disclaimer
    The numbers in this have been compiled from many sources to make these pages as correct as possible. There is no guarantee that the numbers are complete or accurate, therefore, we cannot accept any liability or responsibility for damages incurred from the use of this information.

    Additional 1984 Camaro Links


    Shop For 1984 Camaro Parts


    Request Camaro Catalog


    1984 Camaro Resources

    Share This Information With Your Friends!

    Share on facebook
    Facebook
    Share on twitter
    Twitter
    Share on email
    Email

Now Hiring in Florida!

Looking to get into the Automotive Industry? Here's your chance, click below to see what positions are opening soon!

Operation Status

See what we're doing at Ground Up SS396.com

Parts Catalog

Chevelle & El Camino, Camaro, & Nova
Free

We Want To See Your Car!

Submit your car to be featured today!

Follow Us On Social

MORE ARTICLES FROM SS396.COM!

1967 Camaro
Camaro

Doug L’s 1967 Camaro

Doug has a 1967 Camaro Convertible that he built from parts from Groundup/SS386 when they were in Long Island. Also, from parts from their booth

Read More »
