1971 Nova Parts and Restoration Information

dscf1183

Introduced in 1971, the Rally Nova was a new offering for buyers who wanted the appearance of a muscle car, but without the hassles associated with owning a muscle car during this era of increased insurance premiums and fuel scarcity.

Many manufacturers were forced to lower the compression on their powerful motors from previous model years, due to new requirements for unleaded fuel and increased fuel efficiency, which drastically reduced horsepower and torque ratings. Rather than focus on performance, the Rally Nova was a loud statement that featured full racing stripes, Rally Nova stickers and badging, as well as Rally wheels. Overall, 7,700 Rally Novas were built during 1971.

Another popular Nova model for 1971 was the Super Sport. Although there were minimal changes to the styling between 1970 and 1971 (such as the removal of the front fender vents), the overall performance of the Super Sport also took a hit as Chevrolet had removed the optional big block 396 V8 from the Nova lineup.

Despite this change, Chevrolet still produced 7,015 Super Sport Novas during the 1971 model year. However, overall sales were down from the 19,558 Super Sports produced for 1970, likely a combination of the many factors at play during this transitional period of the American automotive industry.

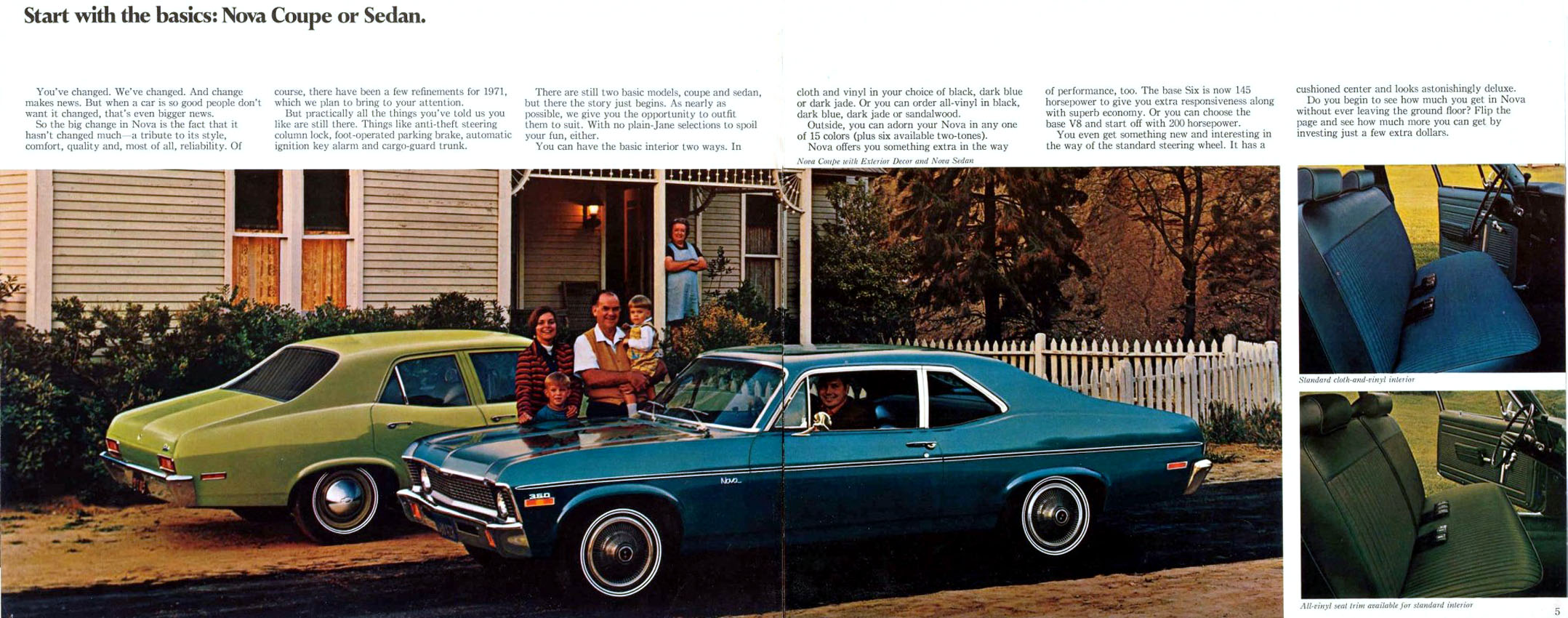

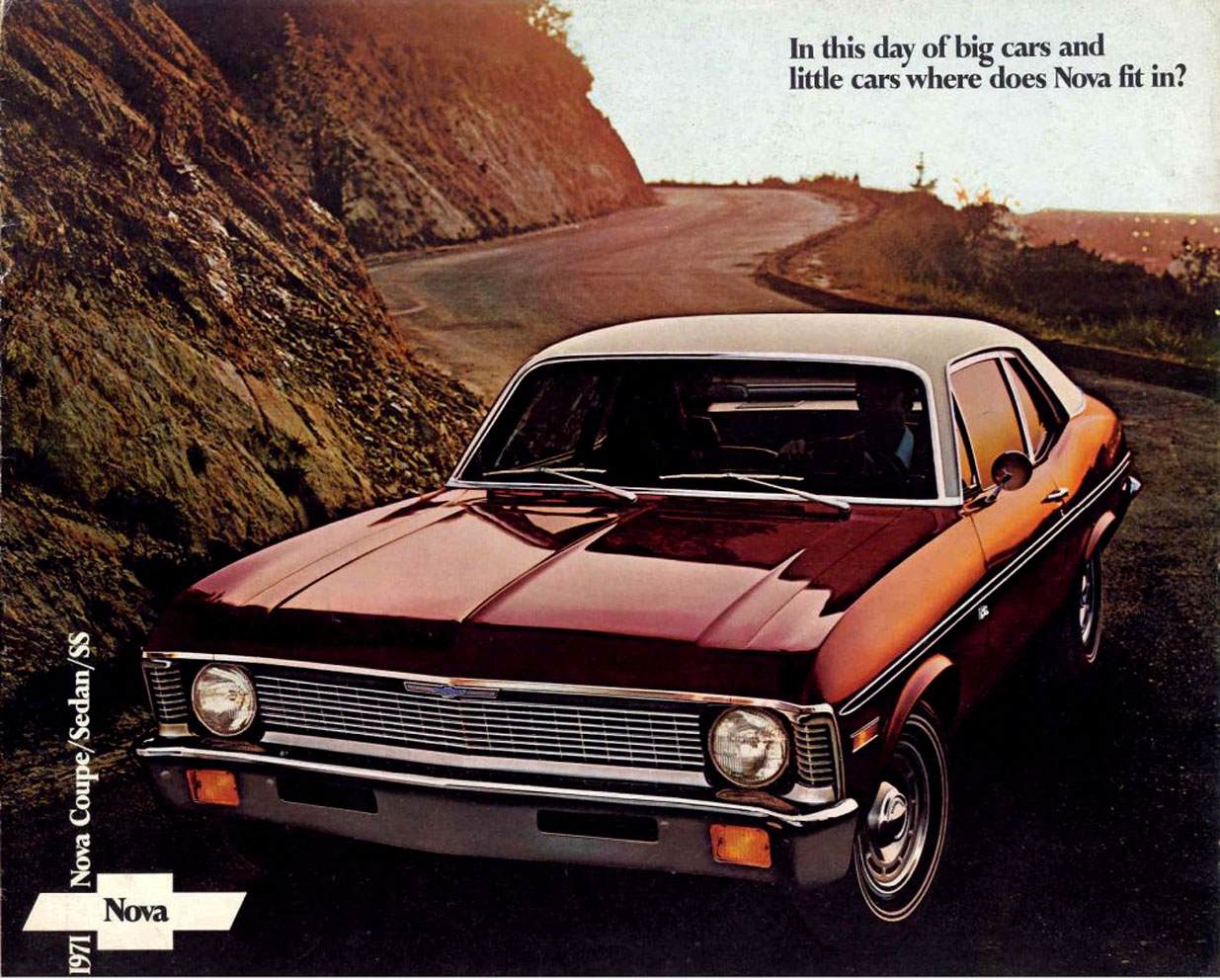

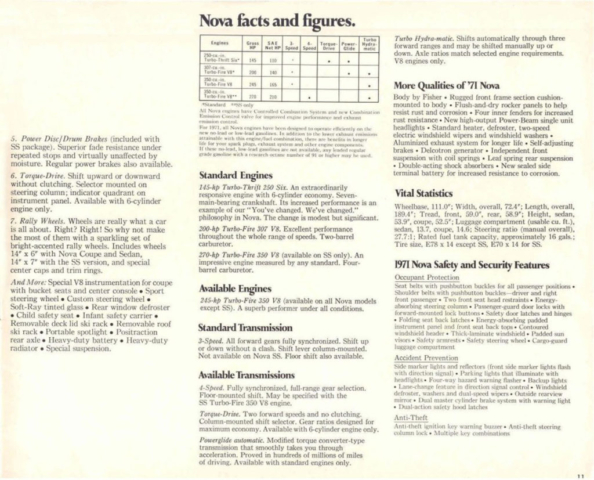

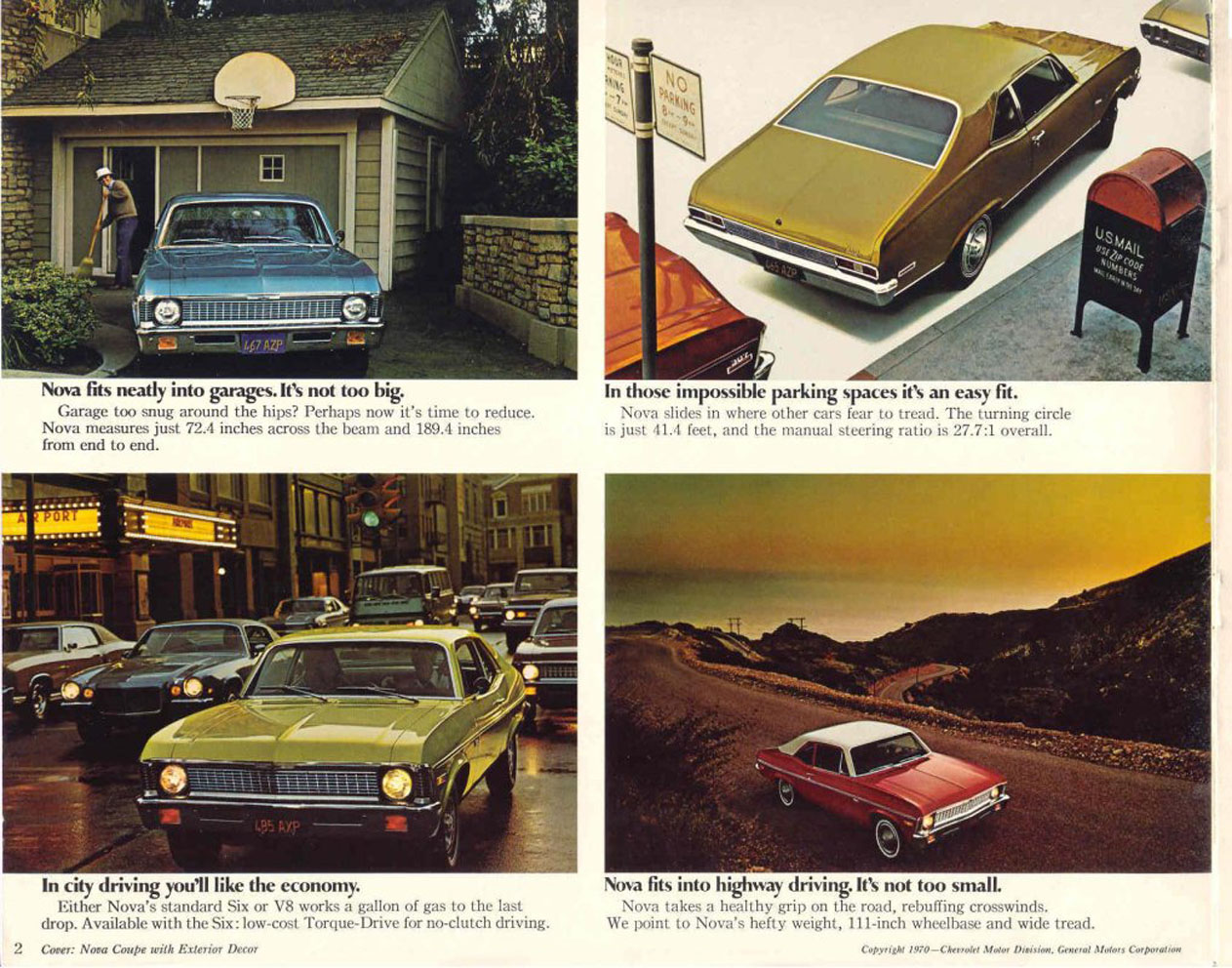

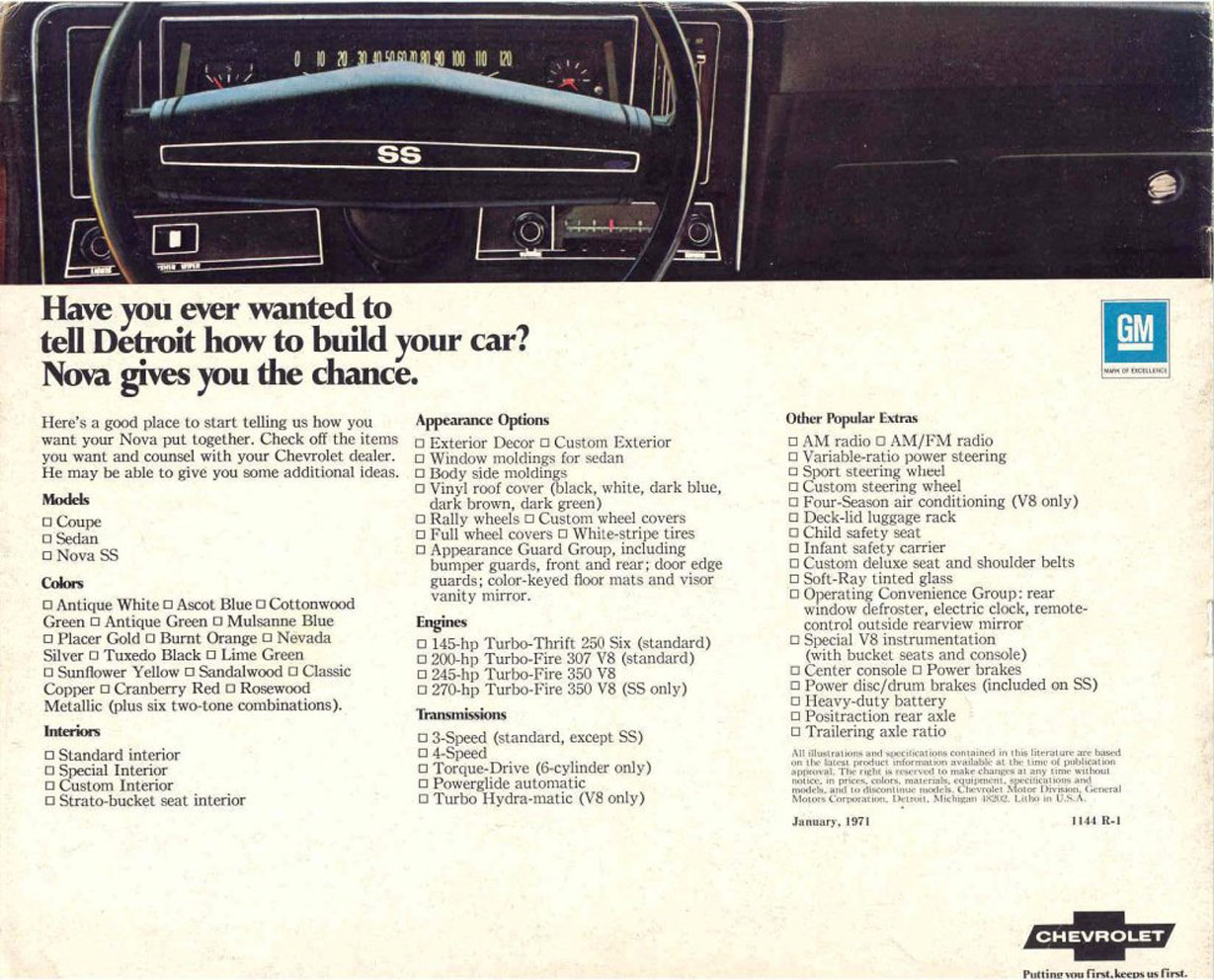

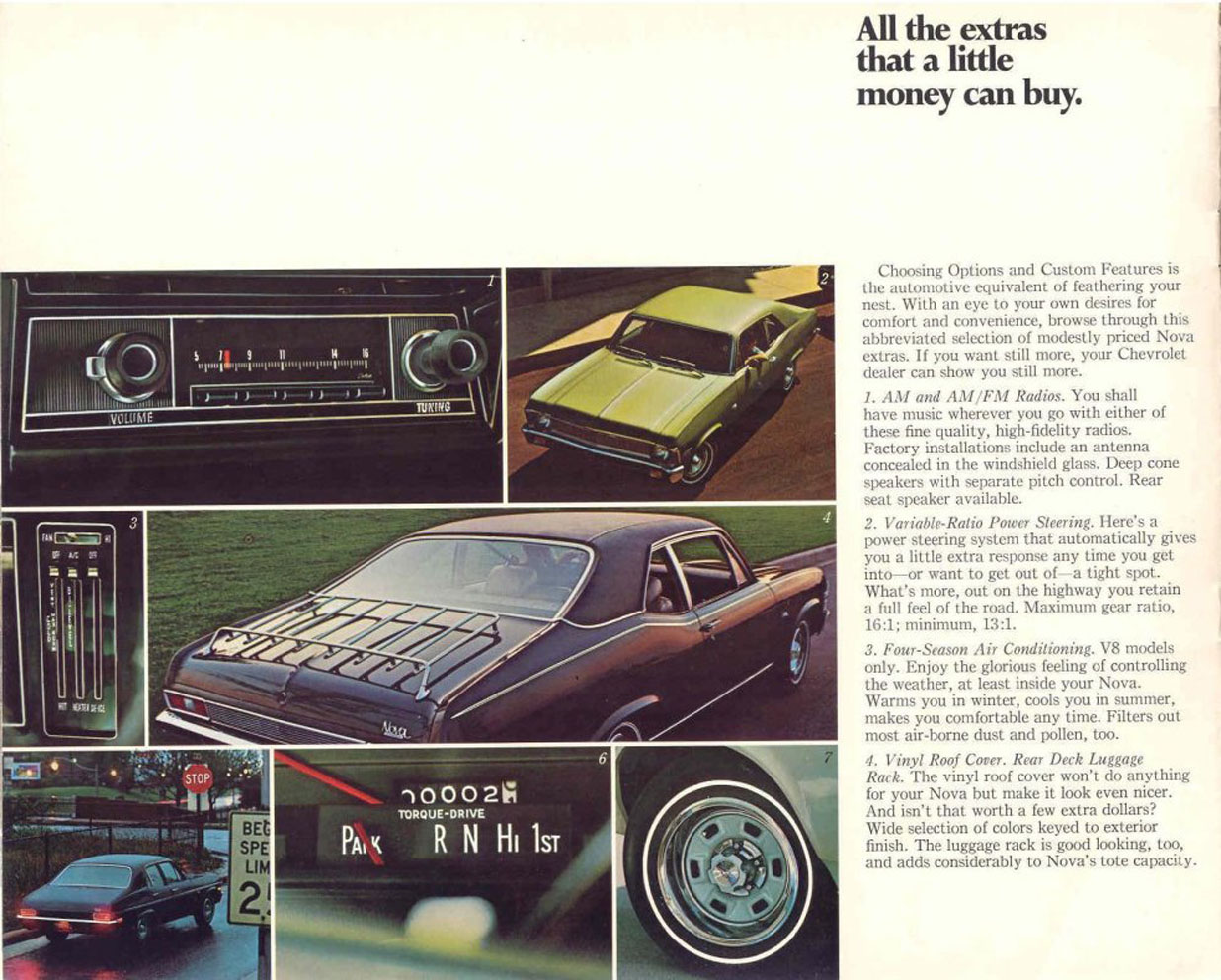

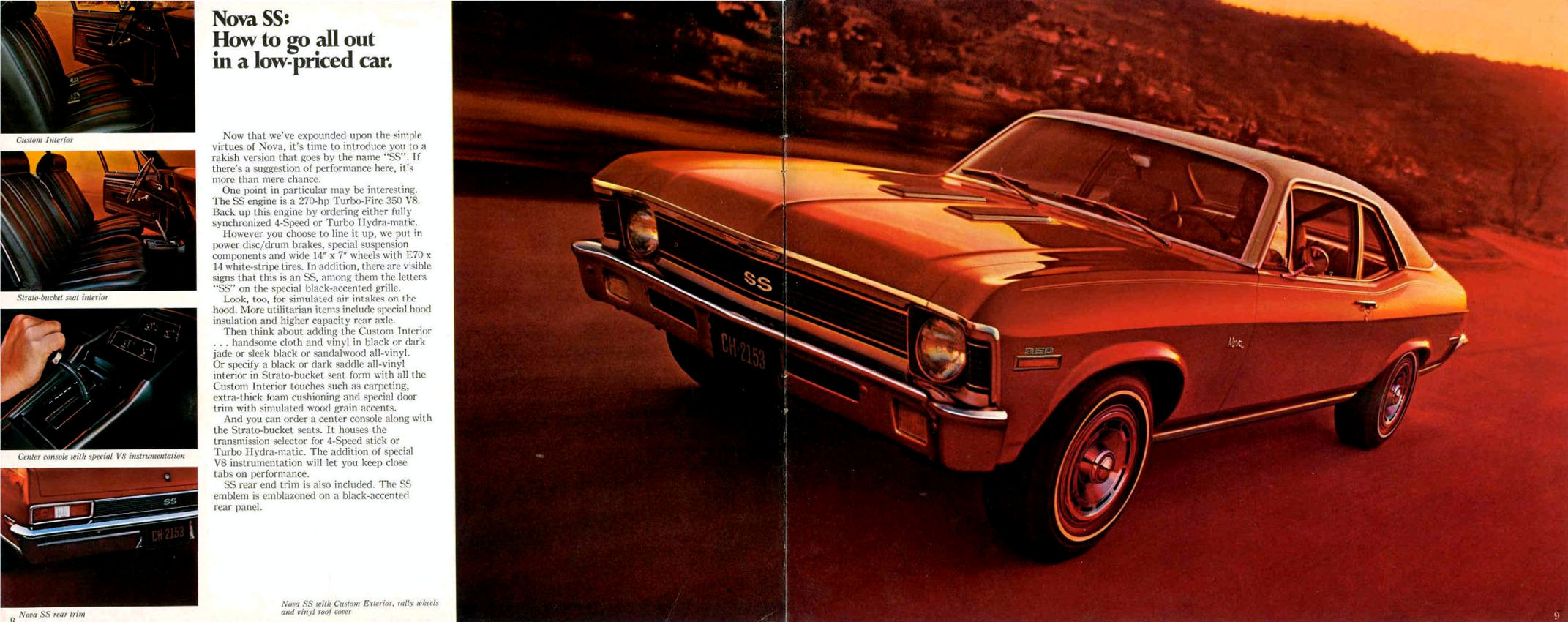

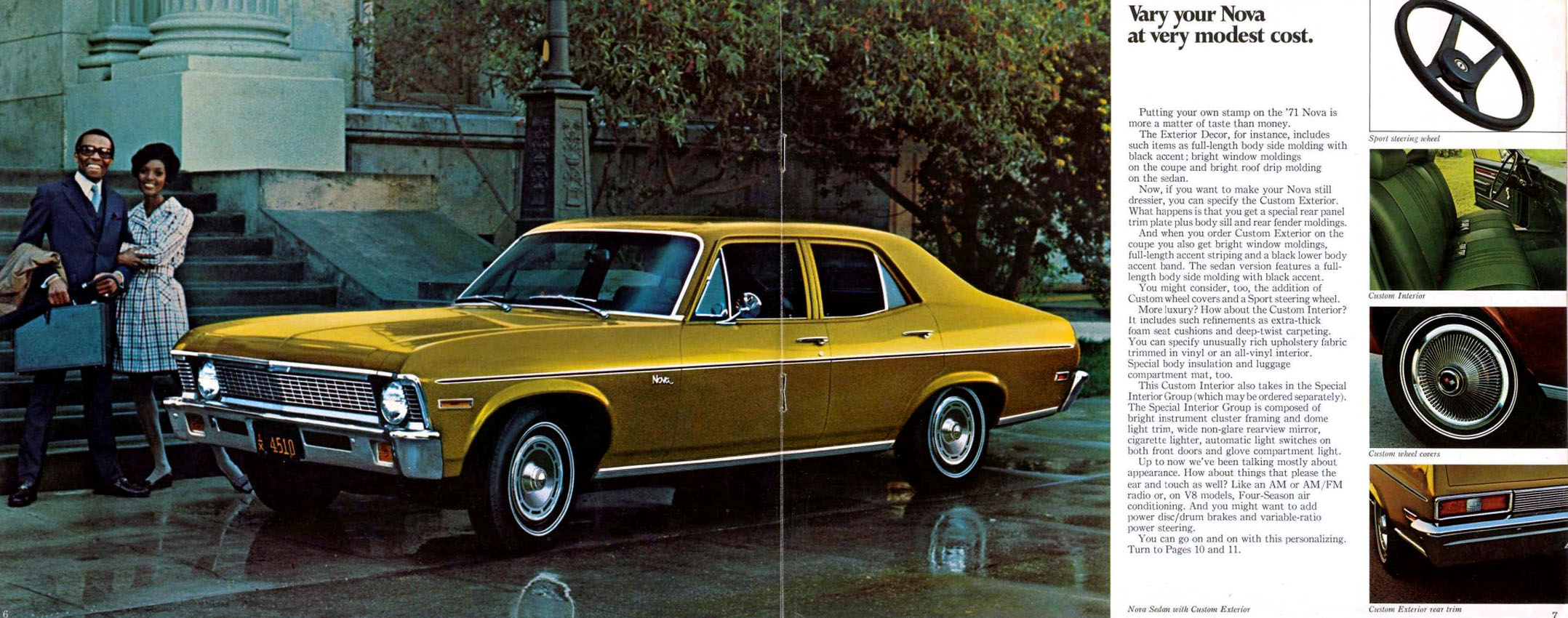

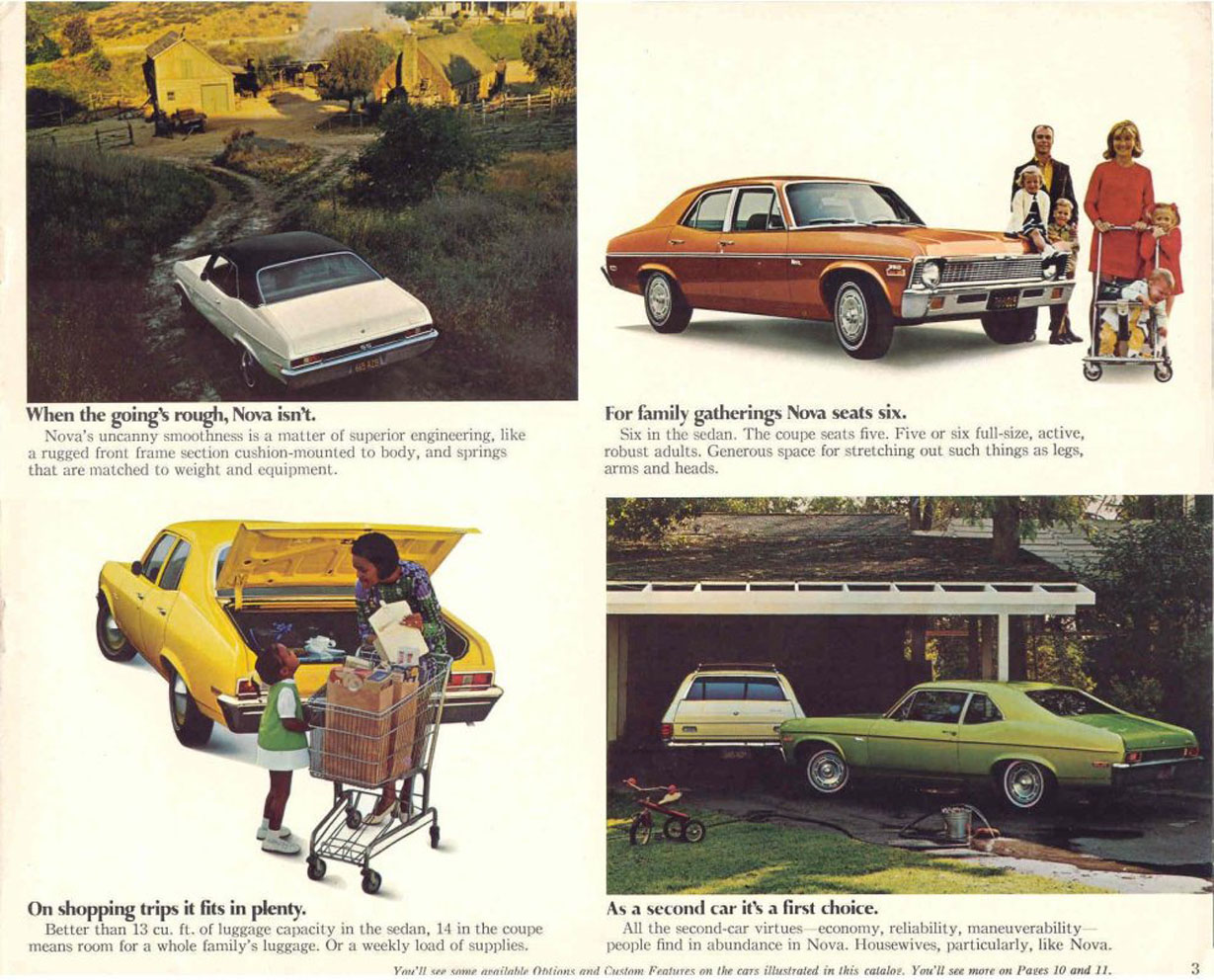

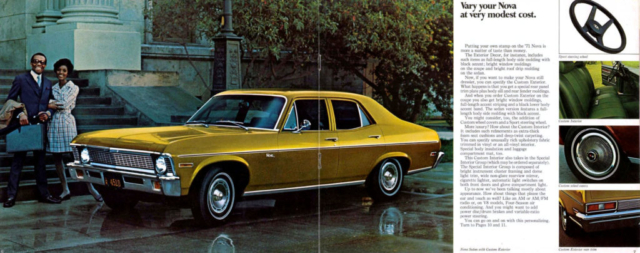

1971 Nova Brochure


1971 Nova Model Options


Body Styles & Model Options:
  • Coupe
  • 4-Door Sedan

Engine Options:
  • L22 – Turbo-Thrift 250 | 250ci | 145hp L6
  • L14 – Turbo-Fire 307 | 307ci | 200hp V8
  • L65 – Turbo-Fire 350 | 350ci | 245hp V8
  • L48 – Turbo-Fire 350 | 350ci | 270hp V8

Available Transmissions:
  • Powerglide
  • 4-Speed Manual
  • 3-Speed
  • Torque-Drive
  • Turbo Hydra-Matic

Production Numbers:
  • Nova: 194,878
    • 2-Door Coupe: 0
    • 2-Door Convertible: 0
    • 2-Door Hatchback: 0
    • 2-Door Sedan: 143,235
    • 4-Door Sedan: 51,643
    • 4-Door Wagon: 0
    • Super Sport: 7,015

Dimensions & Capacities:
  • Length: 189.4 in / 15.78 ft
  • Width: 72.4 in / 6.03 ft
  • Height:
    • 2-door Sedan: 52.5 in / 4.37 ft
    • 4-Door Sedan: 53.9 in / 4.48 ft
  • Wheelbase: 111 in / 9.25 ft



1971 Nova Engine Codes & Specs

Available Engine Specifications

Type

Size

Carb

RPO

Horsepower

Torque

Bore & Stroke (in.)

Compression Ratio

L6

250ci

1x1bbl

L22

145 hp @ 4200 RPM

235 lb-ft @ 1600 RPM

3.875 x 3.538.5:1

V8

307ci

1x2bbl

L14

200 hp @ 4600 RPM

300 lb-ft @ 2400 RPM

3.875 x 3.258.5:1

V8

350ci

1x2bbl

L65

245 hp @ 4800 RPM

350 lb-ft @ 2800 RPM

4.000 x 3.488.5:1

V8

350ci

1x4bbl

L48

270 hp @ 4800 RPM

360 lb-ft @ 3200 RPM

4.000 x 3.488.5:1
6 Cylinder Engine Codes
Code

Size / Carb

HP / RPO

Transmission

Notes

250

CAA

250 cid 1x1bbl

145 hp L22

3-Speed Manual

-

CAB

250 cid 1x1bbl

145 hp L22

Powerglide or Torque Drive

-

CCI

250 cid 1x1bbl

145 hp L22

3-Speed Manual

-

CCL

250 cid 1x1bbl

145 hp L22

3-Speed Manual

-

8 Cylinder Engine Codes
Code

Size / Carb

HP / RPO

Transmission

Notes

307

CCA

307 cid 1x2bbl

200 hp L14

3-Speed Manual

-

CCC

307 cid 1x2bbl

200 hp L14

Powerglide

-

350

CGA

350 cid 1x2bbl

245 hp L65

3-Speed Manual

-

CGB

350 cid 1x2bbl

245 hp L65

Powerglide

-

CGC

350 cid 1x2bbl

245 hp L65

TH350

-

CGK

350 cid 1x4bbl

270 hp L48

Manual

-

CGL

350 cid 1x4bbl

270 hp L48

TH350

-

CJD

350 cid 1x4bbl

270 hp L48

TH350

-

CJG

350 cid 1x4bbl

270 hp L48

4-Speed Manual

-

1971 Nova Transmission Codes

Code

Description

Engines

Assembly Plants

R3

3-Speed

L6, V8

S = Muncie

WT

4-Speed

V8

P = Muncie

TL

Torque Drive

L6

A = Cleveland

TH

Powerglide

L6

C = Cleveland | E = McKinnon

TJ

Powerglide

V8

C = Cleveland | E = McKinnon

HW

TH350

V8

B = Cleveland | Y = Toledo

1971 Nova Rear Axle Ratio Codes

CodeAxle Ratio

Notes

BL

3.07:1

Open 12-bolt

BM

3.31:1

Open 12-bolt

BR

3.07:1

Positraction 12-bolt

BS

3.31:1

Positraction 12-bolt

PI

2.56:1

Open 10-bolt

PJ

2.56:1

Positraction 10-bolt

PO

3.08:1

Open 10-bolt

PR

3.08:1

Positraction 10-bolt

GJ

2.56:1

Open 10-bolt

GK

2.56:1

Positraction 10-bolt

GR

3.08:1

Open 10-bolt

GS

3.08:1

Positraction 10-bolt

GT

3.36:1

Open 10-bolt

GW

3.36:1

Positraction 10-bolt

1971 Nova Factory Options

Regular Production Option (RPO)

RPODescriptionUnits
AK1Deluxe belts & harness front13,617
AS4Rear seat shoulder harness - deluxe65
A01Tinted Glass - all windows84,513
A51Front bucket seat - Strato type6,399
B37Floor mats18,623
B84Body side molding60,249
B90Door and window frame molding22,386
B93Door edge guards41,429
C08Exterior soft trim roof cover37,555
C50Rear window defroster9,456
C60Air Conditioning - deluxe49,257
D33Outside mirror - remote control11,279
D34Vanity visor mirror2,907
D55Front compartment floor console6,493
F40Special heavy duty front & rear suspension15,238
F41Special performance front & rear suspension1,370
G80Rear axle - Positraction9,117
JL2Disc brakes front15,988
J50Vacuum power brake equipment25,656
L22L6 engine - 25096,756
L48V8 engine - 3507,016
L65V8 engine - 350 2-bbl18,273
MB1Torque-drive transmission2,993
M113-speed Floor shift transmission control16,998
M153-speed manual transmission31,676
M204-speed manual transmission3,950
M35Powerglide transmission126,921
M383-speed automatic transmission - TH35071,810
NK2Deluxe steering wheel485
NK4Sport steering wheel2,603
N40Power steering150,002
PK8E78-14/B tires - whitewall112,333
PL1E70-14-4 PR tires - B/B white stripe7,498
PL3E78-14/B tires - whitewalls - 2X253,568
P01Wheel trim cover93,065
P02Deluxe wheel trim cover705
P06Wheel trim ring21,331
T60Heavy duty battery7,666
U17Front compartment console instrument cluster1,680
U35Electric clock7,216
U63Radio - AM push button218,290
U69Radio - AM/FM push button4,133
U76Windshield antenna228,390
U80Auxiliary speaker12,490
V01Heavy duty radiator5,782
V30Front & rear bumper guards5,845
YD1Axle for trailering235
YF1Rally package7,700
ZJ1Custom interior package14,243
ZJ2Custom exterior package9,527
ZJ3Interior convenience package37,374
ZJ5Exterior decor package68,801
ZJ7Special wheel, hub cap and trim ring (Rally wheel)27,211
ZJ9Auxiliary lighting group5,613
Z26Super Sport7,015
751Interior trim - black vinyl33,207
753Interior trim - black vinyl4,915
757Interior trim - dark green vinyl16,006
760Interior trim - dark green vinyl18,987
763Interior trim - vinyl28,500
764Interior trim - vinyl3,345
956Color combination two-tone3,362
960Color combination two-tone2,210
968Color combination two-tone1,778
969Color combination two-tone2,325
971Color combination two-tone1,140
977Color combination two-tone2,104

1971 Nova Cowl Tag Information

1971 Nova Example Cowl Tag & Breakdown
1971 Nova

The Cowl Trim Tag, located on the cowl area identifies significant information about your car.

Click here for further cowl tag decoding information

Line 1: Year, GM Division, Model & Body, Assembly Plant, Sequence Number

Year

GM Division

Model Series

Body Code

Assembly Plant

Sequence Number

71 = 1971

1 = Chevrolet

13 = Nova, L6

27 = 2-Door Sedan

WRN = Willow Run, MI

Starts at 100001

14 = Nova, V8

69 = 4-Door Sedan

Line 2: Trim and Paint

Interior Trim

Exterior Paint (Lower/Upper)

750 = Black Cloth Bench (Standard)

11 = Antique White

751 = Black Vinyl Bench (Standard)

13 = Nevada Silver

752 = Black Cloth Bench (Custom)

19 = Tuxedo Black

753 = Black Vinyl Bench (Custom)

24 = Ascot Blue

754 = Black Vinyl Buckets

26 = Mulsanne Blue

756 = Dark Blue Cloth Bench (Standard)

42 = Cottonwood Green

757 = Dark Blue Vinyl Bench (Standard)

43 = Lime Green

759 = Dark Jade Cloth Bench (Standard)

49 = Antique Green

760 = Dark Jade Vinyl Bench (Standard)

52 = Sunflower Yellow

761 = Dark Jade Cloth Bench (Custom)

53 = Placer Gold

763 = Light Sandalwood Vinyl Bench (Standard)

61 = Sandalwood

764 = Light Sandalwood Vinyl Bench (Custom)

62 = Burnt Orange

767 = Dark Saddle Vinyl Buckets

67 = Classic Copper

75 = Cranberry Red

78 = Rosewood Metallic

A = White Vinyl Roof

B = Black Vinyl Roof

C = Dark Blue Vinyl Roof

F = Dark Brown Vinyl Roof

G = Dark Green Vinyl Roof

Line 3: Build Month and Week

Month

Week

01 = January

A = First Week

02 = February

B = Second Week

03 = March

C = Third Week

04 = April

D = Fourth Week

05 = May

E = Fifth Week

06 =June

07 = July

08 = August

09 = September

10 = October

11 = November

12 = December
