1970 Chevelle

The 1970 Chevelle featured further restyling from the 1969 model. Each head lamp was put in its own chrome housing and was no longer integrated into the grille.

The body lines were less swept and a new integrated rear bumper was used. The body was similar to the 1969 Chevrolet Chevelle, but some consider the 1970 model to be the best-looking Chevelle of all. With the 454 cubic inch big block now available in the form of the LS5 & LS6, the 1970 Chevelle symbolizes the height of the muscle car era.

The 1970 Chevelle was available in several trim levels including the base Chevelle, Chevelle Malibu, Chevelle Concours Estate, Chevelle SS396, and new SS454. Each configuration could be ordered with a six-cylinder (except SS) or V8 engine. Body style included 2 door sport coupes, 2 door sedans, 2 door convertibles, 4 door sedans, or 4 door wagons.

Interiors could be optioned with either bucket seats or bench seats and were available in many colors. The most popular were Black, Bright Blue, Dark Metallic Green, Pearl, Red, Saddle, or Gold. The buyer could have ordered a number of different exterior colors including White, Cortez Silver, Shadow Gray, Tuxedo Black, Astro Turquoise Blue, Fathom Blue, Misty Turquoise, Green Mist, Forest Green, Gobi Beige, Champagne Gold, Autumn Gold, Desert Sand, Cranberry Red, and Black Cherry.

To complement the wide variety of available colors were the available drive train combinations that could be opted for. Base power was had by one of two available six-cylinder. Buyers who wanted more power could opt for a V8. Big blocks were in abundance with the regular availability of both 396 and 454 cubic inch engines for the SS 396 & SS 454 packages.

Manual transmissions were either 3 speeds or 4 speeds and automatic transmissions were either the 2 speed Powerglide or 3-speed Turbo Hydramatics, including the Turbo 350 and Turbo 400 for small block & big block engines respectively.

About 634,000 1970 Chevrolet Chevelles were produced in total.

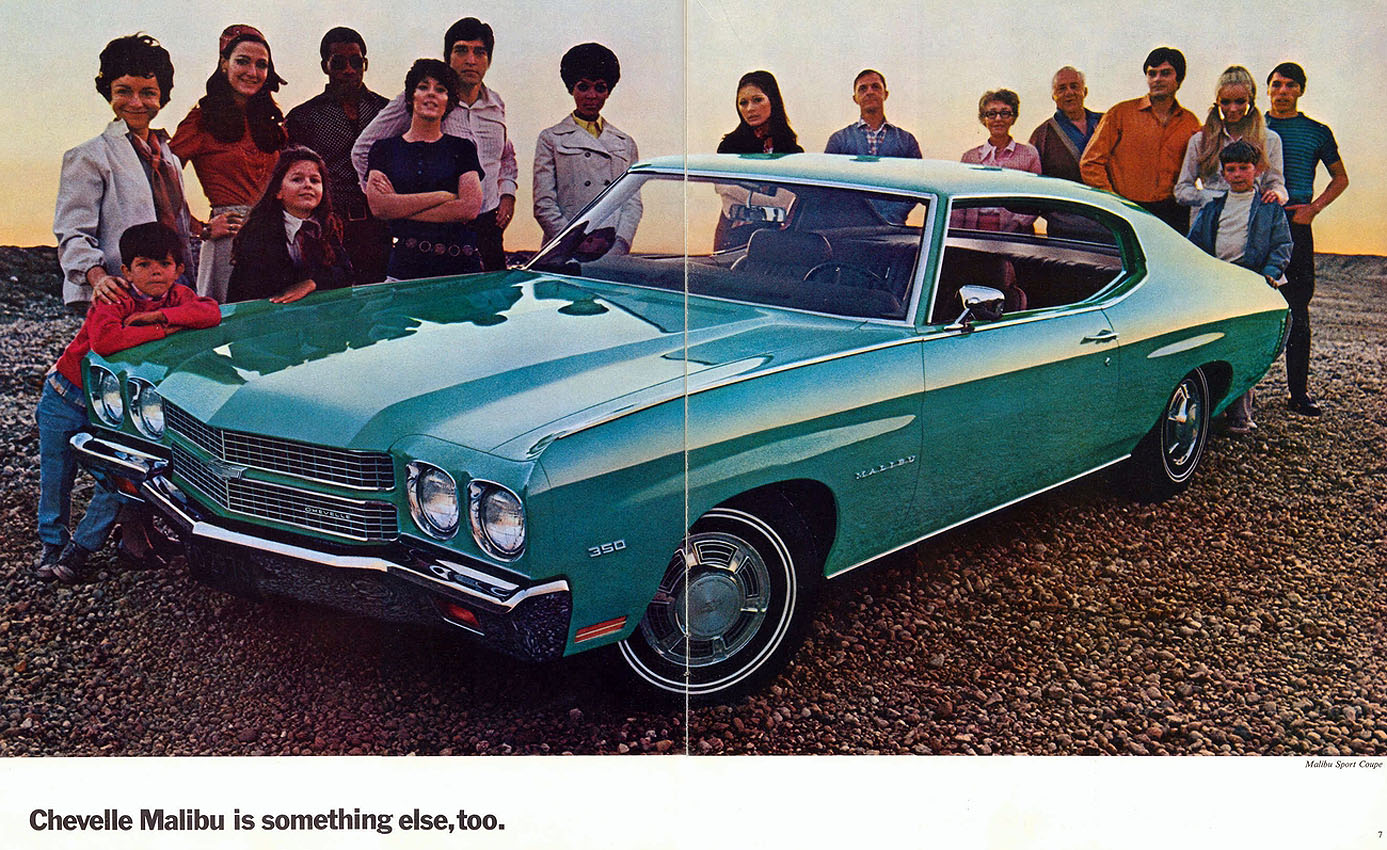

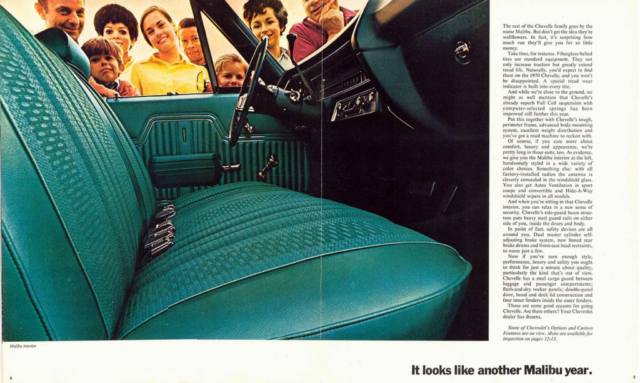

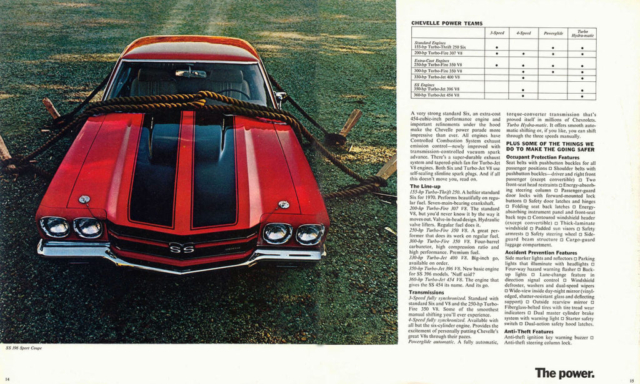

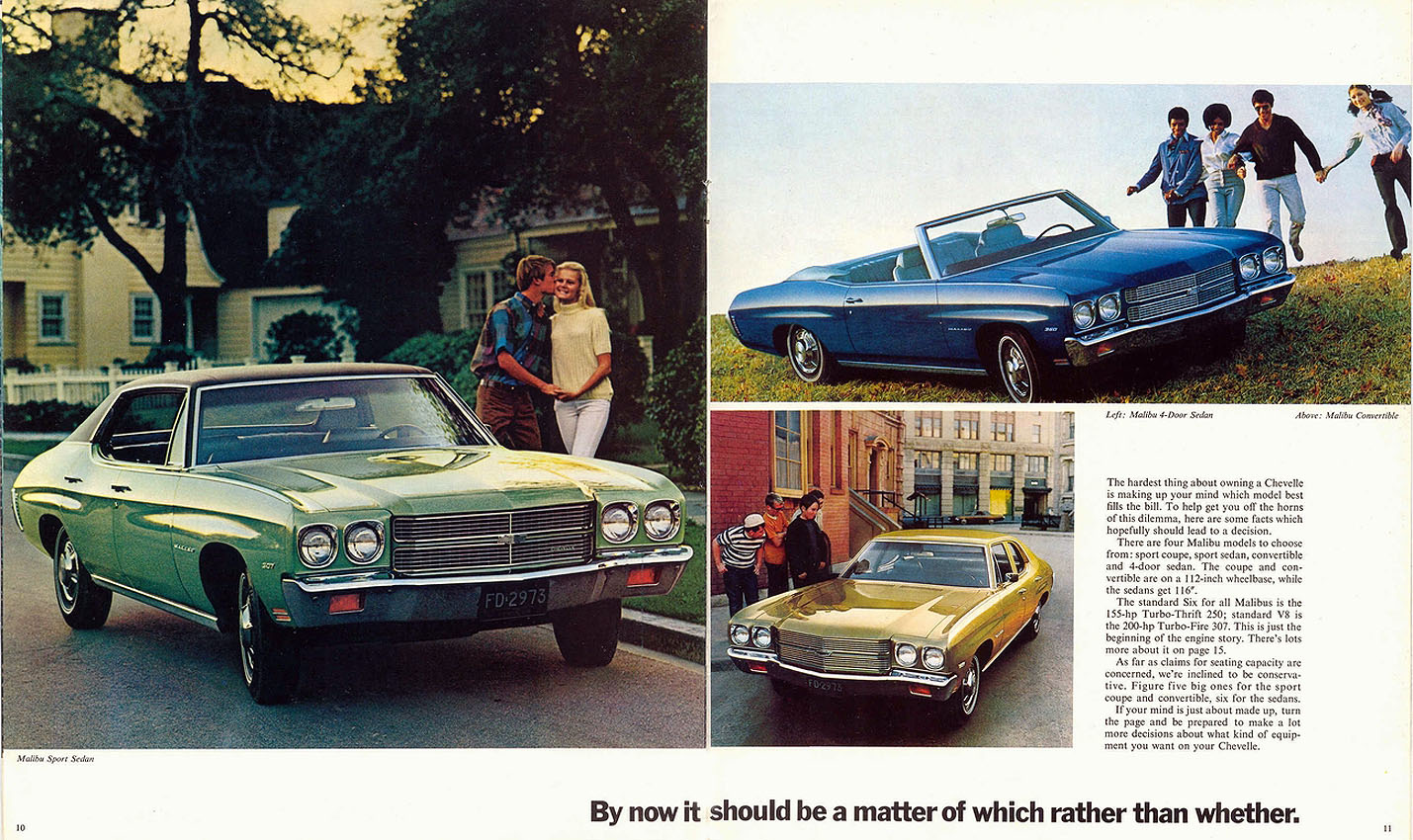

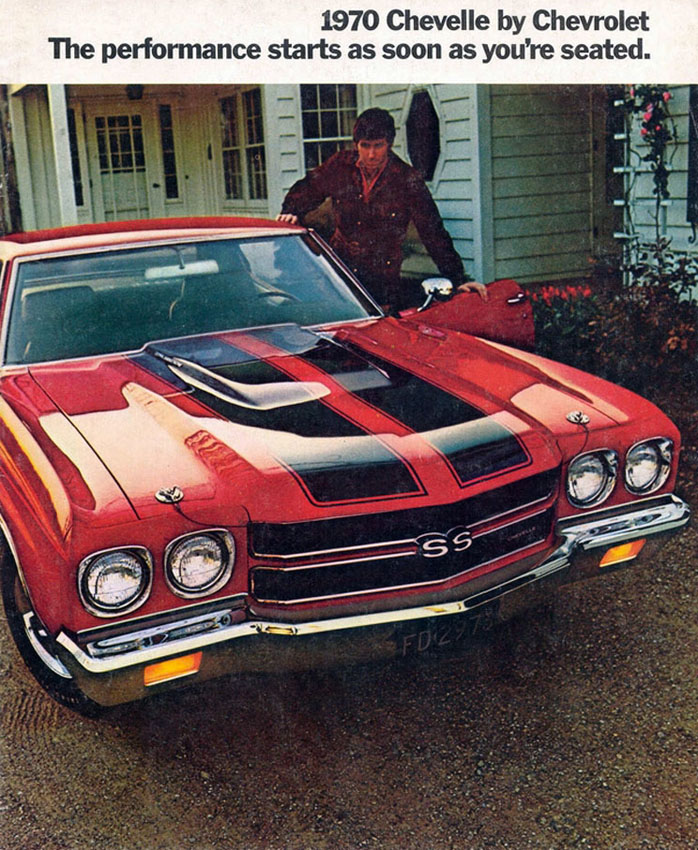

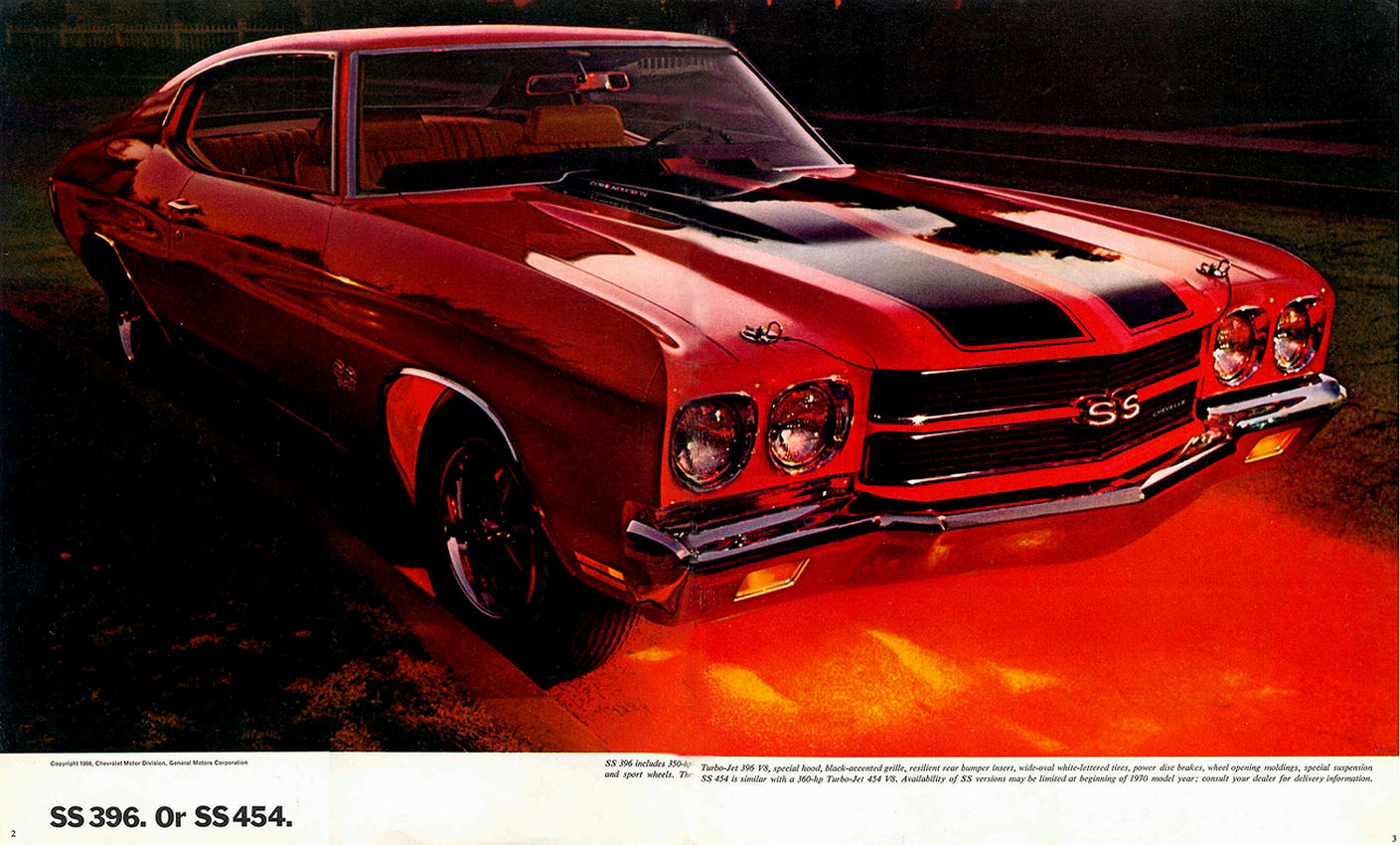

1970 Chevelle OEM Brochure


1970 Chevelle Model Options:


Chevelle Nomad Wagon Information
  • Body Styles
    • 4-Door Wagon
  • Engine Options
    • 250 cubic inch 155 horsepower 6 cylinder (base)
    • 350 cubic inch 250 horsepower V8 (base)
    • 350 cubic inch 300 horsepower V8 (optional)

Chevelle Information
  • Body Styles
    • 2-Door Sport Coupe
    • 4-Door Sedan
    • 4-Door Greenbrier Wagon
  • Engine Options
    • 250 cubic inch 155 horsepower 6 cylinder (base)
    • 350 cubic inch 250 horsepower V8 (base)
    • 350 cubic inch 300 horsepower V8 (optional)

Chevelle Malibu Information
  • Body Styles
    • 4-Door Sedan
    • 4-Door Sport Sedan
    • 2-Door Sport Coupe
    • 2-Door Convertible
    • 4-Door Concours Wagon
  • Engine Options
    • 250 cubic inch 155 horsepower 6 cylinder (base)
    • 307 cubic inch 200 horsepower V8 (base)
    • 350 cubic inch 250 horsepower V8 (optional)
    • 350 cubic inch 300 horsepower V8 (optional)
    • 400 cubic inch 330 horsepower V8 (optional)

Chevelle Malibu Concours Estate Wagon Information
  • Body Styles
    • 4-Door Wagon
  • Engine Options
    • 250 cubic inch 155 horsepower 6 cylinder (optional)

Chevelle SS396 (SuperSport) Information
  • Body Styles
    • 2-Door Sport Coupe
    • 2-Door Sedan
    • 2-Door Convertible
  • Engine Options
    • 396 cubic inch 325 horsepower V8 (base)
    • 396 cubic inch 350 horsepower V8 (optional)
    • 396 cubic inch 375 horsepower V8 (optional)

Chevelle SS454 (SuperSport) Information
  • Body Styles
    • 2-Door Sport Coupe
    • 2-Door Sedan
    • 2-Door Convertible
  • Engine Options
    • 454 cubic inch 360 horsepower V8 (optional)
    • 454 cubic inch 450 horsepower V8 (optional)


1970 Chevelle Engine Codes & Specs

1970 Chevelle 6-Cylinder Engine Codes

Code

Size / Carburetor

HP / RPO

Transmission

Notes

250

CRF

250 cid 1x1bbl

155 hp

3-Speed Manual

-

CCG

250 cid 1x1bbl

155 hp

Powerglide

-

CCK

250 cid 1x1bbl

155 hp

TH350

Taxi & Police Equipment

CCL

250 cid 1x1bbl

155 hp

3-Speed Manual

Taxi & Police Equipment

CCM

250 cid 1x1bbl

155 hp

Powerglide

Taxi & Police Equipment

1970 Chevelle 8-Cylinder Engine Codes

Code

Size / Carburetor

HP / RPO

Transmission

Notes

307

CNC

307 cid 1x2bbl

200 hp

3/4-Speed Manual

-

CND

307 cid 1x2bbl

200 hp

4-Speed Manual

-

CNE

307 cid 1x2bbl

200 hp

Powerglide

-

CNF

307 cid 1x2bbl

200 hp

TH350

-

CNG

307 cid 1x2bbl

200 hp

3-Speed Manual

Low Compression Engine

CNH

307 cid 1x2bbl

200 hp

Powerglide

Low Compression Engine

350

CNI

350 cid 1x2bbl

250 hp L65

3/4-Speed Manual

-

CNJ

350 cid 1x4bbl

300 hp L48

4-Speed Manual

-

CNK

350 cid 1x4bbl

300 hp L48

Powerglide

-

CNM

350 cid 1x2bbl

250 hp L65

Powerglide

-

CNN

350 cid 1x2bbl

250 hp L65

TH350

-

CRE

350 cid 1x4bbl

300 hp L48

TH350

-

400

CRH

400 cid 1x2bbl

265 hp LF6

TH350

Monte Carlo

CZX

400 cid 1x2bbl

265 hp LF6

4-Speed

Monte Carlo

402

CKN

402 cid 1x4bbl

330 hp LS3

TH400

-

CKO

402 cid 1x4bbl

375 hp L78

4-Speed Manual

-

CKP

402 cid 1x4bbl

375 hp L78 w/ L89

TH400

Aluminum Heads

CKQ

402 cid 1x4bbl

375 hp L78

4-Speed Manual

Heavy Duty Clutch

CKR

402 cid 1x4bbl

330 hp LS3

4-Speed Manual

-

CKS

402 cid 1x4bbl

330 hp LS3

4-Speed Manual

Heavy Duty Clutch / LS3

CKT

402 cid 1x4bbl

375 hp L78 w/ L89

4-Speed Manual

Aluminum Heads

CKU

402 cid 1x4bbl

375 hp L78 w/ L89

4-Speed Manual

Aluminum Heads / Heavy Duty Clutch

CTW

402 cid 1x4bbl

350 hp L34

TH400

-

CTX

402 cid 1x4bbl

350 hp L34

4-Speed Manual

-

CTY

402 cid 1x4bbl

375 hp L78

TH400

-

CTZ

402 cid 1x4bbl

350 hp L34

4-Speed Manual

Heavy Duty Clutch

454

CRN

454 cid 1x4bbl

360 hp LS5

TH400

Monte Carlo

CRQ

454 cid 1x4bbl

360 hp LS5

TH400

-

CRR

454 cid 1x4bbl

450 hp LS6

TH400

-

CRS

454 cid 1x4bbl

450 hp LS6 w/ L89

TH400

Aluminum Heads

CRT

454 cid 1x4bbl

360 hp LS5

4-Speed Manual M22

-

CRU

454 cid 1x4bbl

360 hp LS5

4-Speed Manual M22

Heavy Duty Clutch

CRV

454 cid 1x4bbl

450 hp LS6

4-Speed Manual M22

-

CRX

454 cid 1x4bbl

450 hp LS6

4-Speed Manual M22

Heavy Duty Clutch

CRY

454 cid 1x4bbl

450 hp LS6 w/ L89

4-Speed Manual M22

Aluminum Heads / Heavy Duty Clutch

1970 Chevelle Rear Axle Codes

Code

Axle Ratio

Notes

CCA

3.08:1

10-bolt (L14 & L22)

CCB

3.36:1

10-bolt

CCD

3.07:1

Positraction 12-bolt

CCE

3.08:1

Positraction 10-bolt

CCF

3.31:1

Positraction 12-bolt (L34 & L48)

CCG

3.36:1

Positraction 10-bolt

CCH

2.73:1

Positraction 12-bolt (L48)

CCL

2.56:1

-

CCM

2.56:1

Positraction

CCN

2.56:1

-

CCO

2.56:1

Positraction (El Camino, L34)

CCP

2.73:1

10-bolt (L14)

CCW

3.31:1

12-bolt (L34 & LS3 Monte)

CCX

3.07:1

12-bolt

CGA

2.56:1

10-bolt (L65)

CGB

2.56:1

Heavy Duty Positraction 10-bolt (L65)

CGC

2.73:1

Heavy Duty

CGD

2.73:1

Heavy Duty Positraction

CGE

3.08:1

Heavy Duty 10-bolt

CGF

3.08:1

Heavy Duty Positraction 10-bolt

CGG

3.36:1

Heavy Duty 10-bolt

CGI

3.36:1

Heavy Duty Positraction 10-bolt

CKC

2.73:1

Positraction

CKD

2.73:1

12-bolt (L48 & LS3)

CKF

3.55:1

Positraction 12-bolt (L78)

CKJ

3.55:1

12-bolt (L78)

CKK

4.10:1

Positraction 12-bolt (L78)

CRJ

2.56:1

-

CRK

2.56:1

Positraction 12-bolt (LS5 Monte Carlo)

CRL

3.07:1

12-bolt

CRM

3.07:1

12-bolt

CRU

3.31:1

12-bolt (LS5 & LS6)

CRV

3.31:1

Positraction 12-bolt (LS5 & LS6)

CRW

4.10:1

Heavy Duty 12-bolt (LS6)

1970 Chevelle Factory Options

Regular Production Option (RPO)

RPO

Equipment

Quantity

1970 Price (USD)

Today's Price (USD) * Est.

AK1

Seat Belts & Front Shoulder Harness - Deluxe

78,206

-

-

-

(coupe w/ buckets, 5 seat & 2 shoulder)

-

$12.15

$81.49

-

(coupe or sedan w/ bench, 6 seat & 2 shoulder)

-

$13.70

$91.88

-

(coupe or sedan w/ bench, 6 seat & 2 shoulder) (13680)

-

$9.15

$61.37

AQ2

Electric Seat Back Lock Release

663

$23.70

$158.95

AS4

Rear Seat Shoulder Harness - Deluxe

273

$26.35

$176.73

AU3

Electric Door Locks (coupe & convertible)

5,482

$44.80

$300.47

-

Electric Door Locks (sedan)

-

$68.50

$459.42

A01

Tinted Glass - All Windows

416,493

$36.90

$247.49

-

Tinted Glass - All Windows (13680)

-

$37.70

$252.85

-

Tinted Glass - All Windows (13857)

-

$42.15

$282.70

A02

Tinted Glass - Windshield

10,994

$24.25

$162.64

A31

Windows - Electric Control

20,792

$105.35

$706.58

-

Windows - Electric Control (13680)

-

$64.60

$433.27

A33

Tailgate Window - Electric

17,621

$34.80

$233.40

A39

Custom Deluxe Seat Belts - Front & Rear

754

-

-

-

(convertible w/ bench, 6 seat)

-

$10.55

$70.76

-

(convertible w/ bucket, 5 seat)

-

$9.00

$60.36

A41

Front Seat Electric Control - 4-way

637

$73.75

$494.64

A46

Front Seat Electric Control - 4-way Bucket

546

$73.75

$494.64

A51

Strato-Bucket Seats

99,138

$121.15

$812.54

-

Strato-Bucket Seats (13680)

-

$121.15

$812.54

A85

Deluxe Shoulder Harness

122

$26.35

$176.73

A90

Rear Compartment Lid Release - Electric Control

987

$14.75

$98.93

B37

2 Front & 2 Rear Color-Keyed Floor Mats

140,880

$11.60

$77.80

-

2 Front & 2 Rear Color-Keyed Floor Mats (13680)

-

$6.50

$43.60

B85

Belt Reveal Molding

906

n/a

n/a

B90

Door Window Frame Molding (4 door sedan)

5,203

$26.35

$176.73

B93

Door Edge Guards

197,408

$4.25

$28.50

-

Door Edge Guards (13680)

-

$4.35

$29.18

-

Door Edge Guards (13639)

-

$7.40

$49.63

CD2

Windshield Washer Fluid Level

40,630

n/a

n/a

CD3

Electro-Tip Windshield Wiper

331

$19.00

$127.43

C06

Electric Control Folding Top

6,626

$52.70

$353.46

C08

Exterior Soft Trim Roof Cover

287,052

$94.80

$635.82

-

Exterior Soft Trim Roof Cover (13680)

-

$64.60

$433.27

-

Exterior Soft Trim Roof Cover (13857)

-

$126.40

$847.76

C50

Rear Window Defroster

39,953

$26.35

$176.73

C51

Rear Window Deflector

7,713

n/a

n/a

C60

Air Conditioning - Four Season (incl. 61 amp generator & HD radiator)

303,326

$376.00

$2,521.81

-

Air Conditioning - Four Season (13680)

-

$384.15

$2,576.47

D33

Outside Mirror - Remote Control

68,830

$10.55

$70.76

D34

Vanity Visor Mirror

37,287

$3.20

$21.46

-

Vanity Visor Mirror (13680)

-

$3.25

$21.80

D55

Front Compartment Console

90,436

$53.75

$360.50

D88

Sport Stripes - Sport Coupe / Convertible

39,539

$68.50

$459.42

-

Sport Stripes - Sport Coupe / Convertible (13680)

-

$43.05

$288.73

F40

Special Front and Rear Suspension

17,255

$16.90

$113.35

-

Special Front and Rear Suspension (13680)

-

$17.25

$115.69

F41

Special Performance Front and Rear Suspension

56,051

$29.50

$197.85

G67

Rear Shock Absorber Level Control

3,929

n/a

n/a

G80

Rear Axle - Positraction

64,169

$42.15

$282.70

-

Rear Axle - Positraction (13680)

-

$43.05

$288.73

JL2

Front Disc Brakes

139,856

$64.25

$430.92

-

Front Disc Brakes (13680)

-

$65.65

$440.31

J50

Vacuum Power Brake Equipment

180,113

$42.15

$282.70

-

Vacuum Power Brake Equipment (13680)

-

$43.05

$288.73

K05

Engine Block Heater

6,068

$10.55

$70.76

K85

A/C Generator - 63 Amp (n/a with LS6)

2,447

-

-

-

(without air conditioning)

-

$26.35

$176.73

-

(with air conditioning)

-

$5.30

$35.55

LF6

Engine - V8, 400cid 2-bbl Carburetor - 265 hp

16,595

$50.00

$335.35

-

Engine - V8, 400cid 2-bbl Carburetor - 265 hp (13857)

-

$63.20

$423.88

LS3

Engine - V8, 400cid 4-bbl Carburetor - 330 hp

9,338

$162.50

$1,089.88

LS6

Engine - V8, 454cid Special Hi Performance - 450 hp

4,475

$263.30

$1,765.94

L48

Engine - V8, 350cid - 300 hp

85,212

$68.50

$459.42

-

Engine - V8, 350cid - 300 hp (13680)

-

$69.95

$469.15

L65

Engine - V8, 350cid 2-bbl Carburetor - 250 hp

112,686

$21.10

$141.52

-

Engine - V8, 350cid 2-bbl Carburetor - 250 hp (13857)

-

$47.40

$317.91

L78

Engine - V8, 396cid Special Hi Performance - 375 hp

2,144

$210.65

$1,412.82

L89

Aluminum Cylinder Heads

18

$394.95

$2,648.90

M20

4-Speed Transmission

28,131

$184.80

$1,225.71

M21

4-Speed Transmission - Close Ratio

11,830

$184.80

$1,239.44

M22

4-Speed Transmission - Heavy Duty

5,410

$221.80

$1,487.60

M35

Powerglide Transmission (L6)

106,849

$163.70

$1,097.92

-

Powerglide Transmission (V8)

-

$174.25

$1,168.68

M38

3-Speed Automatic Transmission, TH350 (L6)

368,871

$190.10

$1,274.99

-

3-Speed Automatic Transmission, Th350 (V8)

-

$200.65

$1,345.75

-

3-Speed Automatic Transmission, TH350 (13680)

-

$205.20

$1,376.26

-

3-Speed Automatic Transmission, TH350 (13857)

-

$221.80

$1,487.60

M40

3-Speed Automatic Transmission, TH400 (LS3, L34, LS5, LS6)

43,748

$221.80 (LS6 $290.40)

$1,487.60 (LS6 $ 1,947.69)

NA9

Evaporative Emission Control

66,214

$37.70

$252.85

-

Evaporative Emission Control (13680)

-

$37.70

$252.85

NK1

Steering Wheel - Cushioned Rim

3,078

$34.80

$233.40

N10

Dual Exhaust Equipment (250 hp & 300 hp)

22,395

$30.55

$204.90

N33

Steering Wheel - Tilt Type

37,760

$45.30

$303.82

-

Steering Wheel - Tilt Type (13680)

-

$46.30

$310.30

N40

Power Steering

508,181

$105.35

$706.58

-

Power Steering (13680)

-

$102.25

$685.78

-

Power Steering (13236)

-

$100.10

$671.36

PA3

Special Wheel Trim Cover

56,588

n/a

n/a

PK2

G78-14-B White Stripe

19,608

$30.20

$202.55

PL3

E78-14-B White Stripe

9,234

$26.05

$174.72

PL4

F70-14-B White Letter

64,758

$62.45

$418.85

PM6

G78-14-D White Stripe

4,763

n/a

n/a

PU8

G78-15-B White Stripe

114,422

$30.20

$202.55

PX6

F78-14-B White Stripe

248,753

$28.10

$188.46

-

F78-14-B White Stripe (13680)

-

$28.55

$191.48

PY4

F70-14-B White Stripe

15,341

$50.50

$338.70

-

F70-14-B White Stripe (13680)

-

$51.40

$344.74

PY5

F70-14-B Red Stripe

8

n/a

n/a

PY7

G70-14-B Red Stripe

2

n/a

n/a

P01

Wheel Trim Cover

215,176

$21.10

$141.52

-

Wheel Trim Cover (13680)

-

$21.55

$144.53

P02

Deluxe Wheel Trim Cover

3,358

$79.00

$529.85

P06

Wheel Trim Ring

3,633

$21.10

$141.52

P90

G70-15-B White Stripe

26,814

$46.95

$314.89

P91

G70-14-B Red Stripe

194

n/a

n/a

T58

Rear Wheel Opening Skirt

31,442

n/a

n/a

T60

Heavy Duty Battery

46,890

$15.80

$105.97

UM1

AM Push Button Radio & Tape Player

27,295

$194.85

$1,306.85

UM2

AM/FM Push Button Radio & Tape Player

4,532

$372.85

$2,500.68

U14

Instrument Panel Gauges

37,378

$84.30

$565.39

-

Instrument Panel Gauges (13680)

-

$86.10

$577.47

U35

Electric Clock

59,308

$15.80

$105.97

-

Electric Clock (13680)

-

$16.15

$108.32

U46

Lamp Monitoring

5,755

$26.35

$176.73

U63

Radio - Push Button

487,820

$61.10

$409.79

-

Radio - Push Button (13680)

-

$62.45

$418.85

U69

Radio - AM/FM Push Button

31,426

$133.80

$897.39

U80

Auxiliary Rear Speaker

113,627

$13.20

$88.53

V01

Heavy Duty Radiator (Incl. w/ AC or Performance Axle & LS6)

7,347

$14.25

$95.57

V31

Front Bumper Guard

48,448

$15.80

$105.97

-

Front Bumper Guard (13680)

-

$16.15

$108.32

V32

Rear Bumper Guard

36,595

$15.80

$105.97

V55

Roof Luggage Carrier

13,044

$52.70

$353.46

YD1

Axle For Trailering

1,019

$10.55

$70.76

ZJ7

Special Wheel, Hub Cap & Trim Ring

90,017

$35.85

$240.44

-

Special Wheel, Hub Cap & Trim Ring (13857)

-

$31.60

$211.94

-

Special Wheel, Hub Cap & Trim Ring (13680)

-

$36.60

$245.47

ZJ9

Auxiliary Lighting Group

40,945

-

-

-

Auxiliary Lighting Group (Malibu Convertible)

-

$15.80

$105.97

-

Auxiliary Lighting Group (Malibu Sedan & Sport Coupe)

-

$20.05

$134.47

-

Auxiliary Lighting Group (Chevelle Sedan & Sport Coupe)

-

$22.65

$151.91

-

Auxiliary Lighting Group (13637)

-

$25.30

$169.69

ZL2

Special Ducted Hood Air System

28,888

$147.45

$988.94

ZP5

Appearance Group

n/a

-

-

ZQ2

Operating Convenience Group

n/a

n/a

n/a

-

*All Except Sport Coupe & Convertible

-

$52.70

$353.46

-

*Sport Coupe w/o Instrument Panel Gauges

-

$52.70

$353.46

-

*Sport Coupe w/ Instrument Panel Gauges

-

$36.90

$247.49

-

*Convertible w/o Instrument Panel Gauges

-

$63.25

$424.21

-

*Convertible w/ Instrument Panel Gauges

-

$47.45

$318.24

ZQ9

Rear Axle - Performance Ratio

3,348

$10.55

$70.76

-

(LS6 - Includes HD Radiator)

-

$25.30

$169.69

Z15

SS 454

8,773

$503.45

$3,376.61

Z20

Monte Carlo SS

3,823

$420.25

$2,818.59

Z25

Super Sport

53,599

$445.55

$2,988.27

-

Super Sport (13680)

-

$455.15

$3,052.66

Follow Us On Social

Now Hiring in Florida!

Looking to get into the Automotive Industry? Here's your chance, click below to see what positions are opening soon!

Parts Catalog

Chevelle & El Camino, Camaro, & Nova
Free

We Want To See Your Car!

Submit your car to be featured today!

MORE ARTICLES FROM SS396.COM!

Cyber Monday Sale
Savings Zone

Cyber Monday Sale – 15% Off Over $299*

24 HOURS ONLY Get 15% Off* when you apply the Code: CYB24 during checkout on orders over $299, valid until 12/03/24 (11:59pm ET). Don’t miss out on this Cyber Monday Sale and save on the essential parts that keep your restoration moving forward.

Read More »
30 Off
Savings Zone

Veterans Day Sale – $30 Off $299

Get $30 Off* when you apply the Code: VET11 during checkout on orders over $299.
Max Discount $30. Valid until 11/13/24 (9pm ET). Don’t miss out on this opportunity to save on the essential parts that keep your restoration moving forward.

Read More »
