1966 El Camino Restoration Information

The 1966 Chevrolet El Camino kept the same bed design as the 1964 El Camino and the 1965 El Camino, but the end sheet metal received numerous updates. The fenders of this El Camino featured a wrap-around design, and the new grille design was more extended and lower than previous years.

The 1966 El Camino was available in two levels of trim, including the base model El Camino and the El Camino Custom. These were equivalent to the Chevelle 300 Deluxe and the Chevelle Malibu trim levels.

The base El Camino featured more exterior trim than the previous year, including a bright tailgate latch, bright windshield molding, and chrome hood molding. The base El Camino chassis model identification number is 133- 13380 & 13480, depending on six or eight-cylinder engine choice.

The El Camino Custom featured the same trim pieces as the base model but also included bright body sill moldings, wheel opening moldings, roof drip moldings, windshield pillar moldings, and door frame moldings. Each configuration could be ordered with an inline six-cylinder or V8 engine. The El Camino Custom chassis model identification number is 135- 13580 & 13680, depending on six or eight-cylinder engine choice.

Buyers could have ordered several different El Camino exterior colors including Tuxedo Black, Ermine White, Mist Blue Metallic, Danube Blue Metallic, Marina Blue Metallic, Willow Green Metallic, Artesian Turquoise Metallic, Tropic Turquoise Metallic, Aztec Bronze Metallic, Madeira Maroon Metallic, Cameo Beige, Chateau Slate Metallic, and Lemonwood Metallic.

On the interior, bucket seats could only be optioned on the 13680 “Malibu” series pickup. The interior vinyl on the Custom was also of a slightly more luxurious design than that of the standard model.

Special gauge instrumentation could be optioned on any El Camino, just as with the Chevelle. A tachometer would be included in this package for any V8 equipped El Camino regardless of trim level, but the RPM range varied depending on engine choice. These tachometers could also be ordered separately from the gauge package on any of the V8 El Caminos. Base model El Camino interior colors were available in Fawn, Blue, or Red. El Camino Custom interiors could be had in Black, Fawn, or Red.

To complement the wide variety of available interior and exterior colors, were the available drive train combinations that could be optioned on the 1966 El Camino.

Base power was had by one of two six-cylinder engines: the Hi-Thrift 194 cid /120 hp or the Turbo-Thrift 230 cid / 140 hp.
Buyers who wanted more power could opt for one of the five available V8s: two versions of the Turbo-Fire 283 cid model were available with either 195 hp or 220 hp, followed by the Turbo-Fire 327 cid, making 275 hp. Finally, the two main Turbo-Jet 396 cid options were available in 325 or 360 hp versions respectively.

Although the 396 engine was available, there was no official 1966 El Camino Super Sport option. If an El Camino were optioned with the 396, it would receive the Turbo-Jet 396 flag emblems on the fenders as the only visible callout to the engine displacement. None of the SS396 Super Sport identifiers that were present on the Chevelle were available on the El Camino for 1966.

In early official literature, the 325 hp variant of the 396, the L35, was available along with the 360 hp L34. There were 1,865 known examples of the El Camino being sold with the L35 engine, yet only the total number of L34 and L78 engines sold among all body styles and service engines are known. The 375hp L78 was introduced midway into 1966, with only 3,099 units produced in total and an unknown amount in the El Camino.

There were also five different transmissions readily available in the El Camino for 1966. Manual transmissions were either a 3 speed, 3 speed with overdrive, or 4 speeds in either close or wide-ratio, and the only available automatic transmission was the 2 speed Powerglide.

Rear-axle ratios varied depending on a given engine and transmission combination. Standard equipment was the 3.36:1 axle for the base and 3.08:1 for Custom El Caminos. Some ratios were available on the Chevelle body styles that are not available here, such as the 3.73:1 ratio found on the L34 and L78 SS396 models. The 283 and 327 V8s could be optioned with either a 3.36:1 or 3.70:1 special purpose/mountain rear axle ratio.

All El Caminos and station wagons would receive vented gas caps, while all other Chevelles and Malibus would receive non-vented caps. All El Caminos came equipped with air-booster rear shocks, which could be inflated for extra load-carrying capability. Perhaps one aspect that differentiated an El Camino from a traditional pickup truck was the rear suspension, as El Caminos were equipped with four-wheel coil springs rather than rear leaf springs.

El Caminos were not built at all of the GM plants. Three plants built all of the available body styles, which were Baltimore, Fremont, and Kansas City.

Plants that did not build the El Camino were Atlanta, Flint, and Framingham. Additionally, all El Caminos sold in Canada during 1966 were produced in the U.S., so there are no Oshawa, Ontario built El Caminos in existence. In total, 458 El Caminos were exported from the U.S. in 1966.

About 35,000 1966 Chevrolet El Caminos were produced for 1966. The base El Camino total production was 9,321 units, meanwhile the El Camino Custom production totaled 25,798 units. These figures account for both domestic and exported units produced for the model year.

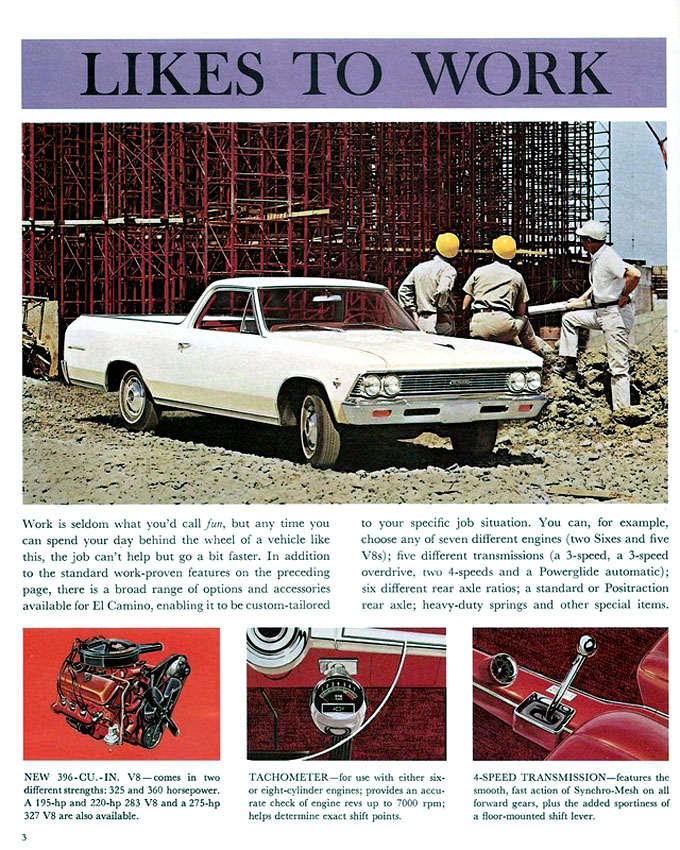

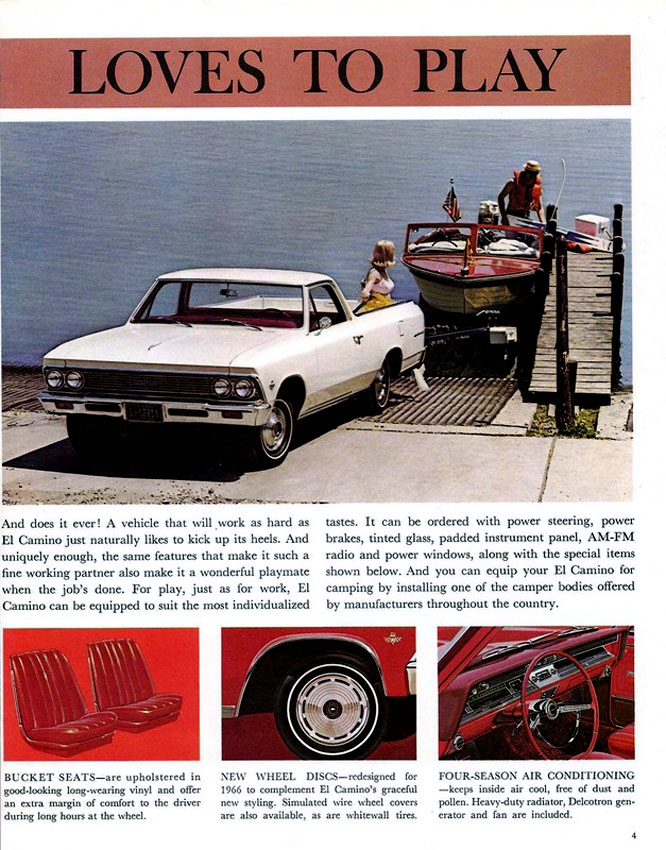

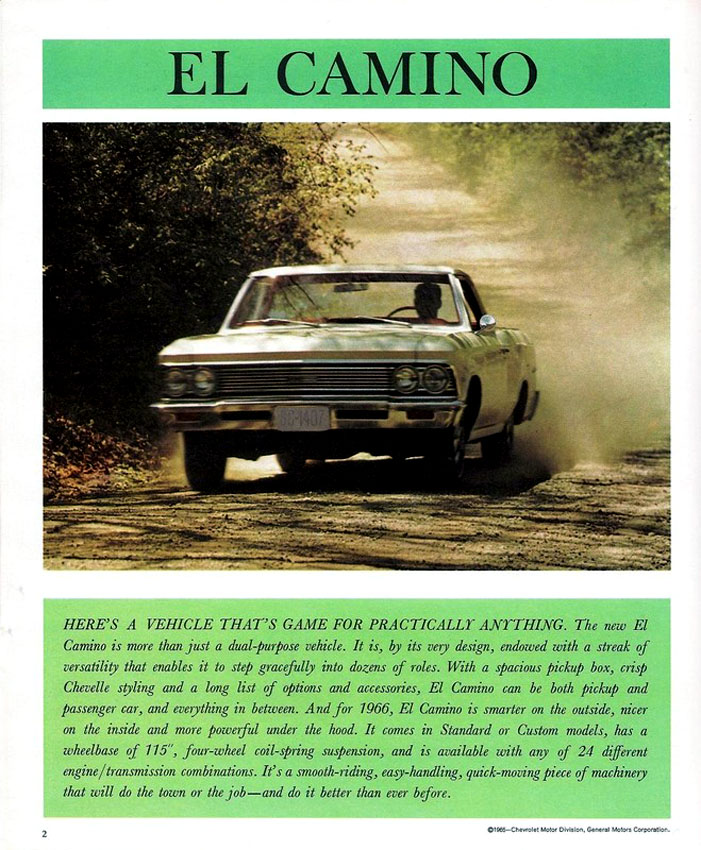

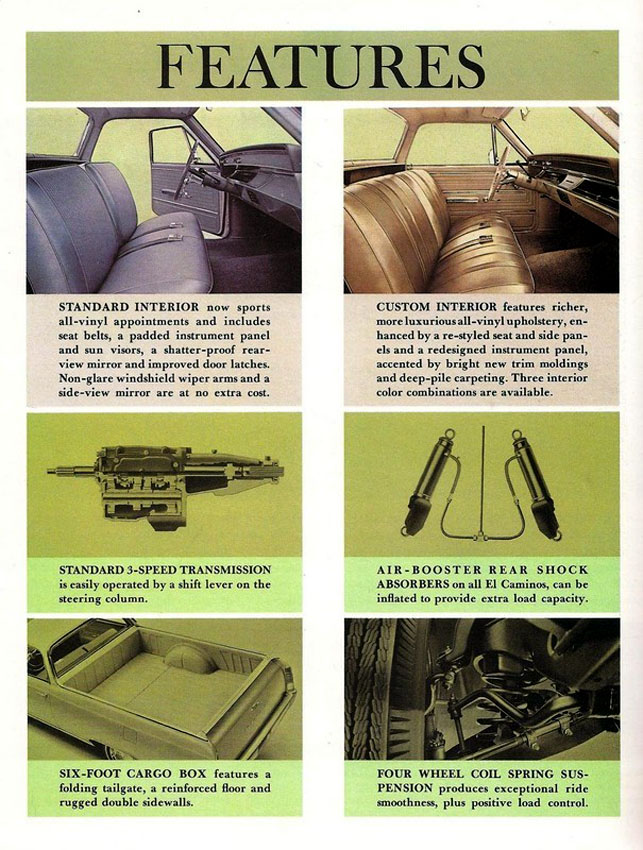

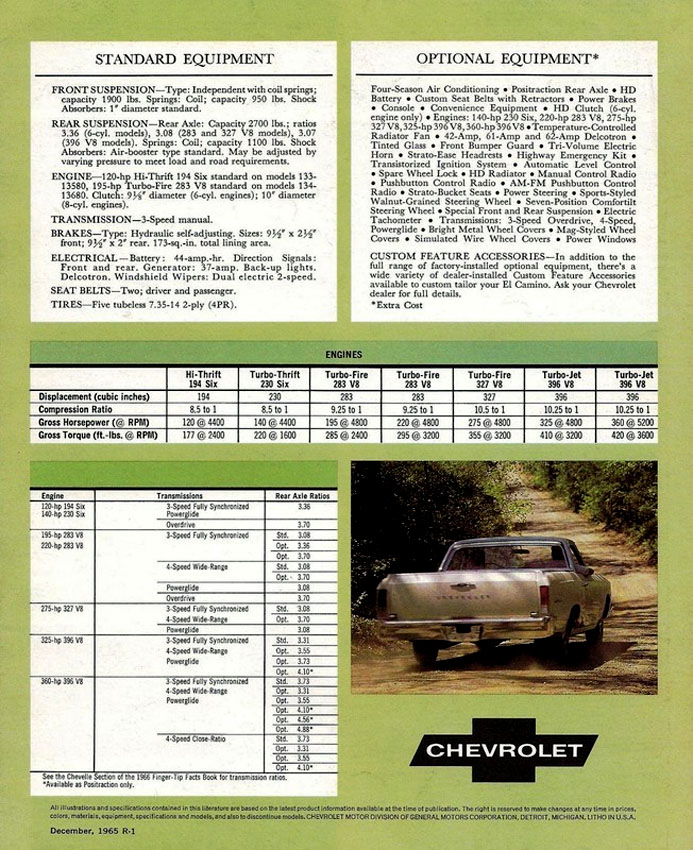

1966 El Camino OEM Brochure & Ads

Model Options

Series & Model Options:

Chevrolet El Camino

  • 2-Door Pick-up

Chevrolet El Camino Custom

  • 2-Door Pick-up

Engine Options by Series:

El Camino

  • 194 cubic inch 120 horsepower 6 cylinder (base)
  • 230 cubic inch 140 horsepower 6 cylinder (optional)
  • 283 cubic inch 195 horsepower V8 (base)
  • 283 cubic inch 220 horsepower V8 (optional)
  • 327 cubic inch 275 horsepower V8 (optional)
  • 396 cubic inch 325 horsepower V8 (optional)
  • 396 cubic inch 360 horsepower V8 (optional)

El Camino Custom

  • 194 cubic inch 120 horsepower 6 cylinder (base)
  • 230 cubic inch 140 horsepower 6 cylinder (optional)
  • 283 cubic inch 195 horsepower V8 (base)
  • 283 cubic inch 220 horsepower V8 (optional)
  • 327 cubic inch 275 horsepower V8 (optional)
  • 396 cubic inch 325 horsepower V8 (optional)
  • 396 cubic inch 360 horsepower V8 (optional)

Available Transmissions:
  • 3-speed manual (Base)
  • 3-speed manual w/ overdrive
  • 4-speed manual (wide-ratio)
  • 4-speed manual (close-ratio)
  • 2-speed Powerglide

Production Numbers:

El Camino

  • 3,424 (Six Cylinder)
  • 5,897 (Eight Cylinder)
  • 9,321 (Total)

El Camino Custom

  • 1,461 (Six Cylinder)
  • 24,337 (Eight Cylinder)
  • 25,798 (Total)

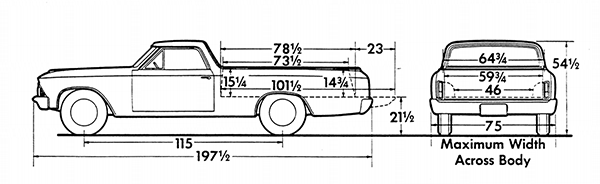

Dimensions & Capacities:



Length: 199.9

Width: 75.0

Height: 54.6

Wheelbase: 115.0

1966 El Camino Codes & Specs

Available Engine Specifications

TypeSize

Horsepower

Torque

Bore & Stroke (in.)

Compression Ratio

L6

194ci

120 hp @ 4400 RPM

177 lb-ft @ 2400 RPM

3.56 x 3.25

8.5:1

L6

230ci

140 hp @ 4400 RPM

220 lb-ft @ 1600 RPM

3.875 x 3.25

8.5:1

V8283ci

195 hp @ 4800 RPM

285 lb-ft @ 2400 RPM

3.875 x 3.00

9.25:1

V8283ci

220 hp @ 4800 RPM

295 lb-ft @ 3200 RPM

3.875 x 3.00

9.25:1

V8327ci

275 hp @ 4800 RPM

355 lb-ft @ 3200 RPM

4.00 x 3.25

10.5:1

V8396ci

325 hp @ 4800 RPM

410 lb-ft @ 3200 RPM

4.094 x 3.76

10.25:1

V8396ci

360 hp @ 5200 RPM

240 lb-ft @ 3600 RPM

4.094 x 3.76

10.25:1

Hi-Thrift 194 (L6)
Code

Size / Carb

HorsepowerRPOTransmissionPowertrain Options
AA

194 cid 1x1bbl

120 hp

n/a

3-Speed Manual

Overdrive
AC

194 cid 1x1bbl

120 hp

n/a

3-Speed Manual

Heavy Duty Clutch
AG

194 cid 1x1bbl

120 hp

n/a

3-Speed Manual

A.C.
AH

194 cid 1x1bbl

120 hp

n/a

3-Speed Manual

Heavy Duty Clutch/A.C.
AL

194 cid 1x1bbl

120 hp

n/a

Powerglide
AS

194 cid 1x1bbl

120 hp

n/a

3-Speed Manual

Overdrive/A.I.R.
AT

194 cid 1x1bbl

120 hp

n/a

3-Speed Manual

A.C./A.I.R.
Turbo-Thrift 230 (L6)
Code

Size / Carb

HorsepowerRPOTransmissionPowertrain Options
BL

230 cid 1x1bbl

140 hp

L26PowerglideA.I.R.
BM

230 cid 1x1bbl

140 hp

L26Powerglide

Air Conditioning & A.I.R.

BN

230 cid 1x1bbl

140 hp

L26

3-Speed Manual

Overdrive & A.I.R.

BO

230 cid 1x1bbl

140 hp

L26

3-Speed Manual

Air Conditioning & A.I.R.

CA

230 cid 1x1bbl

140 hp

L26

3-Speed Manual

Overdrive
CB

230 cid 1x1bbl

140 hp

L26

3-Speed Manual

Air Conditioning

CC

230 cid 1x1bbl

140 hp

L26Powerglide
CD

230 cid 1x1bbl

140 hp

L26Powerglide

Air Conditioning

Turbo-Fire 283 (V8)
Code

Size / Carb

HorsepowerRPOTransmissionPowertrain Options
DA

283 cid 1x2bbl

195 hp

n/a

3-Speed Manual

DB

283 cid 1x2bbl

195 hp

n/a

4-Speed Manual

DE

283 cid 1x2bbl

195 hp

n/a

Powerglide
DG

283 cid 1x4bbl

220 hp

L77

3/4-Speed Manual

DH

283 cid 1x4bbl

220 hp

L77Powerglide
DI

283 cid 1x2bbl

195 hp

n/a

3-Speed Manual

Overdrive & A.I.R.

DJ

283 cid 1x2bbl

195 hp

n/a

PowerglideA.I.R.
DK

283 cid 1x2bbl

195 hp

n/a

4-Speed Manual

A.I.R.
DL

283 cid 1x4bbl

220 hp

L77

3/4-Speed Manual

A.I.R.
DM

283 cid 1x4bbl

220 hp

L77PowerglideA.I.R.
Turbo-Fire 327 (V8)
Code

Size / Carb

HorsepowerRPOTransmissionPowertrain Options
EA/EAH*

327 cid 1x4bbl

275 hp

L30

3/4-Speed Manual

EB

327 cid 1x4bbl

275 hp

L30

3/4-Speed Manual

A.I.R.
EC

327 cid 1x4bbl

275 hp

L30PowerglideA.I.R.
EE

327 cid 1x4bbl

275 hp

L30Powerglide

EP**

327 cid 1x4bbl

350 hp

L79

H.D. 3-Speed or 4-Speed

ER**

327 cid 1x4bbl

350 hp

L79

H.D. 3-Speed or 4-Speed

A.I.R.

ES**

327 cid 1x4bbl

350 hp

L79

H.D. 3-Speed or 4-Speed

Turbo-Jet 396 (V8)
Code

Size / Carb

HorsepowerRPOTransmissionPowertrain Options
EDH*

396 cid 1x4bbl

325 hp

L35

3/4-Speed Manual

EF

396 cid 1x4bbl

360 hp

L34

3/4-Speed Manual

EG

396 cid 1x4bbl

375 hp

L78

3/4-Speed Manual

Holley Carb / Solid Cam

EH

396 cid 1x4bbl

325 hp

L35

3/4-Speed Manual

A.I.R. / Rochester Carb

EJ

396 cid 1x4bbl

360 hp

L34

3/4-Speed Manual

A.I.R.
EKH*

396 cid 1x4bbl

325 hp

L35PowerglideHolley Carb
EKR

396 cid 1x4bbl

325 hp

L35PowerglideRochester Carb
EL

396 cid 1x4bbl

360 hp

L34Powerglide
EM

396 cid 1x4bbl

325 hp

L35Powerglide

A.I.R. / Rochester Carb

EN

396 cid 1x4bbl

360 hp

L34PowerglideA.I.R.

1966 El Camino Transmission Codes & Specifications

3-Speed Manual Transmission Ratios

--

Base

L26

Base

L77

L30

L79

L35

L34

C.I.

194

230

283

283

327

327

396

396

1st Gear

2.85:1

2.85:1

2.85:1

2.85:1

2.54:1

2.54:1

2.41:1

2.41:1

2nd Gear

1.68:1

1.68:1

1.68:1

1.68:1

1.50:1

1.50:1

1.57:1

1.57:1

3rd Gear

1.00:1

1.00:1

1.00:1

1.00:1

1.00:1

1.00:1

1.00:1

1.00:1

Reverse

2.95:1

2.95:1

2.95:1

2.95:1

2.63:1

2.63:1

2.41:1

2.41:1

Clutch Diameter

9.12-10

9.12-10

10

10

10.4

10.4

11

11

3-Speed Manual Overdrive Transmission Ratios

--

Base

L26

Base

L77

L30

L79

L35

L34

C.I.

194

230

283

283

327

327

396

396

1st Gear

2.85:1

2.85:1

2.85:1

2.85:1

-

-

-

-

1st Overdrive

2.00:1

2.00:1

2.00:1

2.00:1

-

-

-

-

2nd Gear

1.68:1

1.68:1

1.68:1

1.68:1

-

-

-

-

2nd Overdrive

1.18:1

1.18:1

1.18:1

1.18:1

-

-

-

-

3rd Gear

1.00:1

1.00:1

1.00:1

1.00:1

-

-

-

-

3rd Overdrive

0.70:1

0.70:1

0.70:1

0.70:1

-

-

-

-

Reverse

2.95:1

2.95:1

2.95:1

2.95:1

-

-

-

-

Clutch Diameter

9.12-10

9.12-10

10

10

-

-

-

-

4-Speed Manual Transmission Ratios

--

Base

L26

Base

L77

L30

L79

L35

L34

C.I.

194

230

283

283

327

327

396

396

1st Gear

-

-

3.11:1

3.11:1

2.54:1

2.54:1

2.52:1

2.52:1

2nd Gear

-

-

2.20:1

2.20:1

1.80:1

1.80:1

1.88:1

1.88:1

3rd Gear

-

-

1.47:1

1.47:1

1.32:1

1.32:1

1.47:1

1.47:1

4th Gear

-

-

1.00:1

1.00:1

1.00:1

1.00:1

1.00:1

1.00:1

Reverse

-

-

3.11:1

3.11:1

2.54:1

2.54:1

2.59:1

2.59:1

Clutch Diameter

-

-

10.4

10.4

10.4

10.4

11

11

Powerglide Transmission Ratios

--

Base

L26

Base

L77

L30

L79

L35

L34

C.I.

194

230

283

283

327

327

396

396

1st Gear

1.82:1

1.82:1

1.82:1

1.82:1

1.76:1

1.76:1

1.76:1

1.76:1

2nd Gear

1.00:1

1.00:1

1.00:1

1.00:1

1.00:1

1.00:1

1.00:1

1.00:1

Reverse

1.82:1

1.82:1

1.82:1

1.82:1

1.76:1

1.76:1

1.76:1

1.76:1

1966 El Camino Rear Axle Ratios

Code

Axle Ratio

Notes

CA

3.08:1

-

CB

3.36:1

-

CC

3.73:1

-

CD

3.07:1

Positraction

CE

3.08:1

Positraction

CF

3.31:1

Positraction

CG

3.36:1

Positraction

CH

3.70:1

w/ Metallic Brakes

CI

3.73:1

Positraction

CJ

3.07:1

w/ Metallic Brakes

CK

3.07:1

Positraction w/ Metallic Brakes

CL

3.08:1

w/ Metallic Brakes

CM

3.08:1

Positraction w/ Metallic Brakes

CN

3.31:1

w/ Metallic Brakes

CO

3.31:1

Positraction w/ Metallic Brakes

CP

3.36:1

w/ Metallic Brakes

CQ

3.36:1

Positraction w/ Metallic Brakes

CR

3.70:1

Positraction

CS

3.70:1

Positraction w/ Metallic Brakes

CT

3.73:1

w/ Metallic Brakes

CU

3.73:1

Positraction w/ Metallic Brakes

CV

3.70:1

Overdrive

CW

3.31:1

-

CX

3.07:1

-

KC

2.73:1

w/ Metallic Brakes

KD

2.73:1

Positraction

KE

2.73:1

Positraction w/ Metallic Brakes

KF

3.55:1

w/ Metallic Brakes

KG

3.55:1

Positraction w/ Metallic Brakes

KH

3.55:1

Positraction

KI

2.73:1

396 w/ Powerglide

KJ

3.55:1

-

KK

4.10:1

Positraction

KL

4.10:1

Positraction w/ Metallic Brakes

KM

4.56:1

Positraction

KN

4.56:1

Positraction w/ Metallic Brakes

KO

4.88:1

Positraction

KP

4.88:1

Positraction w/ Metallic Brakes

1966 El Camino Rear Axle Availability

Hi-Thrift 194

Transmission

Standard Ratio

Special Ratio

3-Speed Manual

3.36:1

-

Powerglide

3.36:1

-

Overdrive

3.70:1

-

Turbo-Thrift 230

Transmission

Standard Ratio

Special Ratio

3-Speed Manual

3.36:1

-

Powerglide

3.36:1

-

Overdrive

3.70:1

-

Turbo-Fire 283 Base

Transmission

Standard Ratio

Special Ratio

3-Speed Manual

3.08:1

3.36:1

3.70:1

4-Speed Manual (Wide)

3.08:1

3.70:1

Powerglide

3.08:1

-

Overdrive

3.70:1

-

Turbo-Fire 283 L77

Transmission

Standard Ratio

Special Ratio

3-Speed Manual

3.08:1

3.36:1

3.70:1

4-Speed Manual (Wide)

3.08:1

3.70:1

Powerglide

3.08:1

-

Overdrive

3.70:1

-

Turbo-Fire 327 L30

Transmission

Standard Ratio

Special Ratio

3-Speed Manual

3.08:1

3.70:1

4-Speed Manual (WIde)

3.08:1

3.70:1

Powerglide

3.08:1

-

Turbo-Jet 396 L35

Transmission

Standard Ratio

Special Ratio

3-Speed Manual (Heavy Duty)

3.31:1

3.55:1

3.73:1

4.10:1

4-Speed Manual (Wide)

3.31:1

3.55:1

3.73:1

4.10:1

Powerglide

3.31:1

3.55:1

3.73:1

4.10:1

Turbo-Jet 396 L34

Transmission

Standard Ratio

Special Ratio

Powerglide

3.73:1

3.31:1

3.55:1

4.10:1

3-Speed Manual (Heavy Duty)

3.73:1

3.31:1

3.55:1

4.10:1

4-Speed Manual (Wide)

3.73:1

3.31:1

3.55:1

4.10:1

4-Speed Manual (Close)

3.73:1

3.31:1

3.55:1

4.10:1

4.56:1

4.88:1

1966 El Camino Factory Options

Regular Production Option (RPO)

RPODescriptionQuantity1966 PriceEstimated 2020 Price
A01Soft ray tinted glass (all windows)77,021$30.55$241.01
A02Soft ray tinted windshield (only)190,741$19.50$153.83
A31Power windows - n/a on Chevelle 300 or 300 Deluxe.3,164$100.10$789.68
A33Power rear window - sta. wag.12,020$26.35$207.87
A39Deluxe seat belts, front & rear115,001$10.55$83.23
A414-way front seat control - conventional seat, n/a on Chevelle 300.938$69.55$548.67
A464-way front seat control - bucket seat587$69.55$548.67
A49

Custom Deluxe Belts w/ retractors

9,370
A51Strato-Bucket seats - sport coupe, convertible & pickup95,482$110.60$872.51
A81

Headrests (w/ Strato-Bucket seats)

2,380$52.70$415.74
A82

Headrests (w/ standard bench seat)

689$42.15$332.52
A85Deluxe shoulder harness (requires A39) (Available March 1966)119
B90Door Window Frame Molding104$26.35$207.87
C06Power convertible top10,028$52.70$415.74
C08Vinyl roof cover32,507$73.75$581.81
C48

Heater & defroster deletion credit - n/a w/ A.C.

7,861$70.70$557.74
C50Rear window defroster - sedans & sport coupe only5,089$21.10$166.46
C51Air deflector, rear window - station wagons only1,517$19.00$149.89
C60Four season air conditioning - includes H.D. radiator, temp-controlled fan, 61-amp generator. Must order 7.75-14 or larger tires. Not available when 375-hp engine is ordered.44,965$4.75$37.47
G66Superlift rear shock absorbers1,752$36.90$291.10
G753.70:1 ratio rear axle900
G763.36:1 ratio rear axle1,265$2.15$16.96
G80Positraction rear axle67,905$36.90$291.10
G943.31:1 ratio rear axle430$2.15$16.96
G963.55:1 ratio rear axle2,577$2.15$16.96
H013.07:1 ratio rear axle (Available January 1966)33$2.15$16.96
H053.7:1 ratio rear axle3,075
J50

Power brakes - n/a w/ Sintered Metallic brake lining.

33,695$42.15$332.52
J65

Brakes w/ Sintered Metallic facings

7,837$36.90$291.10
K02Temperature-controlled radiator fan - incl. w/A.C.3,365$15.80$124.64
K19****Air Injection Reactor equipment - requires K24, for California registered vehicles only.54,166$44.75$353.03
K24****

Closed positive engine ventilation - n/a w/ L79 or L34.

954$5.25$41.42
K66Transistor ignition2,013$73.75$581.81
K76

61 amp Delcotron generator - incl. w/ A.C.

439$21.10$166.46
K79

42 amp Delcotron generator - n/a w/ A.C.

867$10.55$83.23
K8162 amp Delcotron generator123$73.75$581.81
L26140 hp Turbo-Thrift 230 engine66,943$26.35$207.87
L30275 hp Turbo-Fire 327 engine46,230$92.70$731.30
L34360 hp Turbo-Jet 396 engine (SS396)24,811$105.35$831.09
L35325 hp Turbo-Jet 396 engine1,865$182.95$1,443.27
L77220 hp Turbo-Fire 283 engine10,101$52.70$415.74
L78375 hp Turbo-Jet 396 engine3,099$237.00$1,869.67
M01

HD clutch - n/a w/ SS396, 155-hp L6, or A.I.R.

495$5.30$41.81
M10Overdrive transmission - available with L6 and 283.2,803$115.90$914.32
M13****Special 3-speed, fully synchronized201
M204-speed wide-range transmission (SS396)73,022$105.35$831.09
M214-speed close-ratio transmission - available with L79, L34, and L78 engines.5,012$105.35$831.09
M224-speed close-ratio transmission12
M35Powerglide transmission - SS396292,437$115.90$914.32
M55Transmission oil cooler28$15.80$124.64
N10Dual exhaust11,102$21.10$166.46
N33Comfortilt steering wheel - automatic or 4-speed only.6,115$42.15$332.52
N34

Sports-styled walnut-grained steering wheel w/ plastic rim

7,537$31.60$249.29
N40Power steering185,274$73.75$581.81
N96Mag-style wheel cover10,814$73.75$581.81
P01Bright metal wheel covers223,842$21.10$166.46
P02Simulated wire wheel covers6,974$73.75$581.81
P19Spare tire lock2,101$5.30$41.81
P587.35-14-4 pr whitewall tubeless tires106,413$39.15$308.85
P607.75-14 blackwall3,700
P617.75-14-4 pr whitewall tubeless tires, nylon4,897$72.40$571.16
P627.75-14-4 pr whitewall tubeless tires63,795$53.60$422.84
P676.95-14-4 pr whitewall tubeless tires76,821$28.20$222.47
T077.75-14-4 pr whitewall tubeless tires, nylon17,421
T60Battery, 70-amp-hour20,503$7.40$58.38
U03Tri-Volume Horn2,653$13.70$108.08
U14Special Instrumentation - available on sport coupe and convertible. Includes ammeter, temperature, and oil pressure gauges. Includes tachometer on V8 engines.32,436$79.00$623.22
U16Tachometer - V8 engines only.8,025$47.40$373.93
U63Push-button control radio313,897$57.40$452.82
U63/U80

Push-button control radio w/ rear speaker

U69Push-button control AM/FM radio5,689$133.80$1,055.53
U69/U80

Push-button control AM/FM radio w/ rear speaker

U73

Rear antenna - n/a with AM/FM or sta. wag.

66,846$9.50$74.94
U75Power rear antenna962$28.45$224.44
U80Speaker, radio auxiliary54,750$13.20$104.13
V01

HD radiator - incl. w/ A.C.

25,108$10.55$83.23
V31Front bumper guard16,298$9.50$74.94
V32Rear bumper guard - n/a on sta. wag., sedan pickup.13,067$9.50$74.94
V55Luggage carrier equipment - sta. wag.7,299$42.15$332.52
V74Hazard Warning System35,398$11.80$93.09
Z19Convenience group18,487$26.35$207.87
Z83Road hazard package (Discontinued December 1965)165$10.55$83.23
710Fawn vinyl interior - 13680 (01/07)9,005$5.40$42.60
720Fawn vinyl interior for 300 series1,775$5.30$41.81
761Black vinyl interior for Malibu sport coupe and sedan95,102$10.55$83.23
950Two-tone exterior paint combinations18,060$15.80$124.64

1966 El Camino Factory Colors

ColorCodeNameLuciteRinshed-MasonDitzler

ATuxedo Black88LA-9469300

CErmine White4024LA-11998259

DMist Blue4630LA-172013042

EDanube Blue4631LA-172113002

FMarina Blue4704LA-182313148

HWillow Green4633LA-171643391

KArtesian Turquoise4628LA-171843364

LTropic Turquoise4703LA-181643496

MAztec Bronze4707LA-1817R71525

NMadeira Maroon4624LHA-1711M50700

RRegal Red4625LHA-1712M71472

TSandalwood Tan4706LA-182122660

VCameo Beige4401LA-153022270

WChateau Slate4708LA-181932525

YLemonwood Yellow4709LA-182481528

1966 El Camino Additional Links:

Share this information with your friends!

Share on facebook
Facebook
Share on twitter
Twitter
Share on email
Email

COVID-19 Shipping Delays

See what brands are experiencing delays

COVID-19

See what we're doing at Ground Up SS396.com

Parts Catalog

Chevelle & El Camino, Camaro, & Nova
Free

We Want To See Your Car!

Submit your car to be featured today!

Follow Us On Social

MORE ARTICLES FROM GROUND UP SS396.COM

1967 camaro
Camaro

Earl L’s 1967 Camaro

This 1967 Camaro has been an ongoing project in Earl’s life since 2006, though he didn’t quite get started working on it immediately. He actually

Read More »
