1967 Camaro Parts and Restoration Information

1967 Camaro Specifications

2008_ks_237

With the Ford Mustang already eating up the new pony car market, Chevrolet announced its rebuttal on September 26th, 1966. Originally named Panther, the Camaro moniker was chosen instead.

Some experts believe the word means “companion” or “friend” but others argue that it simply has no meaning at all. Either way, this new pony car would mark the beginning of a whole new era of American muscle car icons.

The 1967 Camaro was available in many different configurations. From a plain Jane sport coupe to asphalt eating Super Sport, there was something for everyone! All 1967 Camaros shared the same body unlike the Chevelle and were available in either coupe or convertible. Buyers could choose from the base model Sport Coupe, drag strip ready Super Sport, or road racing Z-28. The Rally Sport option with hidden headlights could be added as a separate packing to any of those models.

Interiors could be optioned with either bucket seats or bench seats and were available in a variety of colors and styles. Standard interiors were available in Black, Light Blue, Red, White, or Gold. Buyers who ordered a deluxe interior received unique door panels and striped Comfortweave seats with color choices of Aqua with Dark Aqua stripe, Black with White stripe, Bright Blue with White stripe, Red with Black stripe, Off-White with Black stripe, or Gold with White stripe. A fold down rear seat was available but very rare. An optional console was available with our without gauges on bucket seat cars. The buyer could have ordered a number of different exterior colors including Tuxedo Black, Ermine White, Nantucket Blue, Deepwater Blue, Marina Blue, Granada Gold, Mountain Green, Emerald Turquoise, Tahoe Turquoise, Royal Plum, Madeira Maroon, Bolero Red, Sierra Fawn, Capri Cream, or Butternut Yellow.

To complement the wide variety of available colors were the available drive train combinations that could be opted for on the 1967 Camaro. Base power was had by one of two available six cylinder engines. Buyers who wanted more power could opt for aV-8. Manual transmissions were either 3 speeds or 4 speeds. The 2 speed Powerglide was the standard transmission and a 3 speed Turbo Hydramatic was optional.

About 221,000 1967 Camaros were produced, 195,765 coupe, 25,141 convertible, 220,906 total.


Model Options

Dimensions:

  • Length: 194.6 inches
  • Height: 51 inches
  • Width: 72.5 inches
  • Wheelbase: 108 inches

Models:

  • 1967 Camaro Standard Sport Coupe
  • 1967 Camaro Rally Sport (hidden headlights)
  • 1967 Camaro Super Sport
  • 1967 Camaro Rally Sport Super Sport (RS/SS)
  • 1967 Camaro Z/28
  • 1967 Camaro Rally Sport Z/28 (RS/Z/28)

Body Styles:

  • 2 Door Coupe
  • 2 Door Convertible (except Z/28)

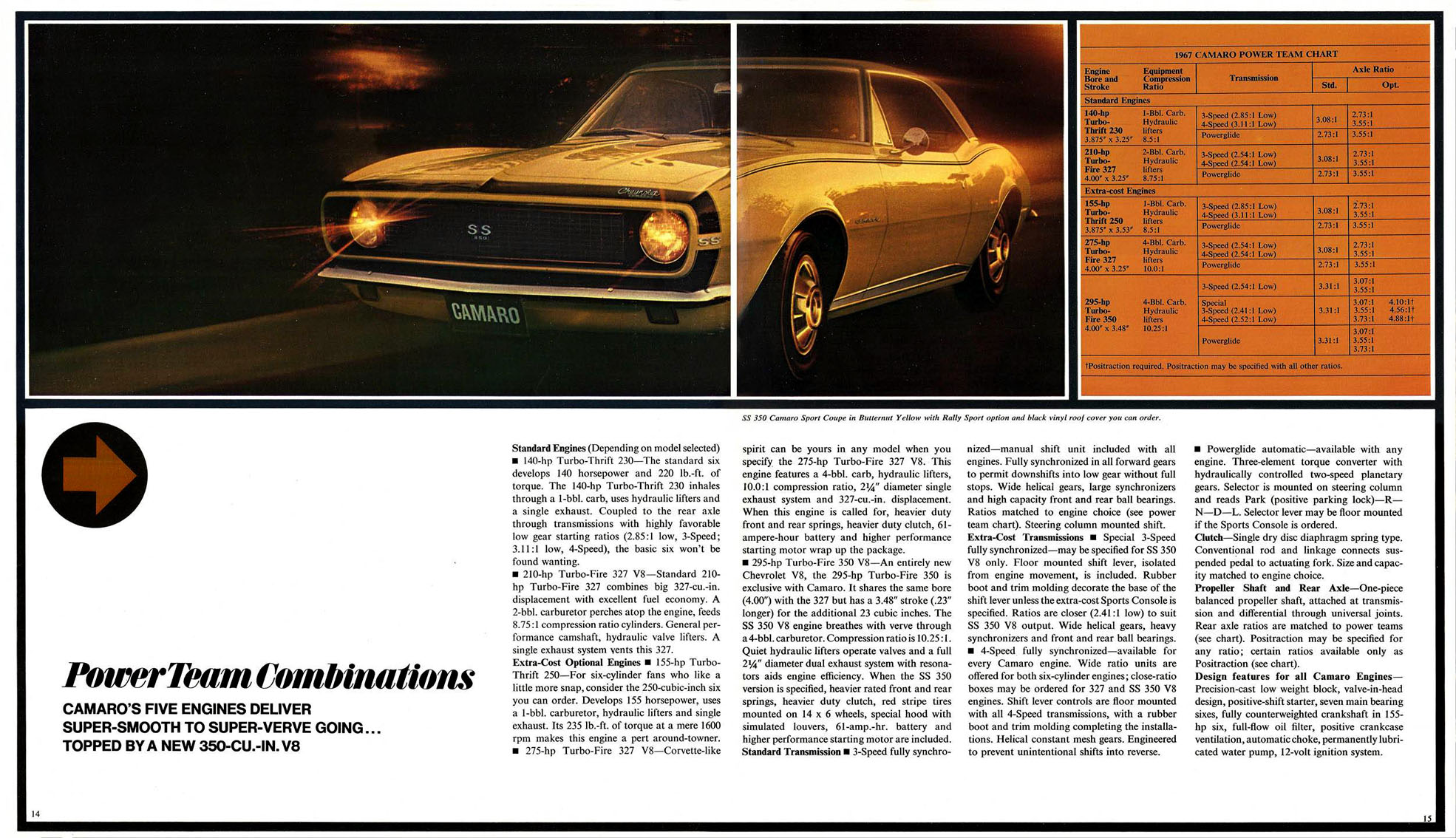

Engine Options:

  • 230 cubic inch 140 horsepower 6 cylinder (base)
  • 250 cubic inch 155 horsepower 6 cylinder (optional)
  • 302 cubic inch 290 horsepower V8 (base Z/28, Z/28 only)
  • 327 cubic inch 210 horsepower V8 (base)
  • 327 cubic inch 275 horsepower V8 (optional)
  • 350 cubic inch 295 horsepower V8 (base Super Sport, SS only)
  • 396 cubic inch 325 horsepower V8 (optional Super Sport, SS only)
  • 396 cubic inch 375 horsepower V8 (optional Super Sport, SS only

Drivetrains:

Notes:

“S”, “E”, and “P” under axle ratios stand for “Standard,” “Economy,” and “Performance,” ‘Heavy-duty floorshift 3-speed ratios given; normal 3-speed same as L-30. 3.55 and/or 3.73 optional. ‘Optional performance ratios range from 3.55 to 4.88. Positraction required with some low ratios. ‘Alternate 4-speed same as for L-35 396 V-8 a RS ratio 3.08; air conditioning uses 3.08 or 3.55 all transmissions. “N.O.” means “not offered.”


Engine Codes


Abbreviations

  • ac=air conditioning

  • ar=air injection reactor (required California)

  • at=Turbo-Hydramatic automatic transmission

  • ci=cubic inch

  • copo=central office production order

  • ex=export

  • pg=Powerglide automatic transmission

  • mt=manual transmission

  • tb=two-barrei carburetor

Transmission & Rear Axle Codes


1967 Factory Options


RPODescriptionQuantityRetail Price
12337Camaro Sport Coupe, 6-cylinder53,523$2,466.00
12367Camaro Convertible, 6-cylinder5,285$2,704.00
12437Camaro Sport Coupe, 8-cylinder142,242$2,572.00
12467Camaro Convertible, 8-cylinder19,856$2,809.00
AL4Front Seat, Strato-back (bench)6,583$26.35
AL5Rear Center Seat Belt, Deluxe------
AS1Belts, standard type front shoulder477$23.20
AS2Headrests, Strato-Ease2,342$52.70
A01Soft Ray tinted glass, all windows34,725$30.55
A02Soft Ray tinted glass, windshield only81,998$21.10
A31Power Windows4,957$100.10
A39Belts, custom deluxe front and rear51,247$6.35
A67Seat, rear folding17,993$31.60
A68Rear Center Seat Belt, Standard------
A85Belts, custom deluxe front shoulder894$26.35
B37Floor Mats, color-keyed front and rear23,747$10.55
B93Guards, door edge37,964$3.20
C06Top, power (convertible)11,783$52.70
C08Vinyl Roof Cover (coupe)52,455$73.75
C48Heater and Defroster Delete (credit)2,201$-31.65
C50Defroster, rear window (coupe only)7,031$21.10
C60Air Conditioning28,996$356.00
C94Axle, optional 3.31:1 ratio1,177$2.15
C96Axle, optional 3.55:1 ratio6,322$2.15
C97Axle, optional 2.73:1 ratio539$2.15
D33Mirror, left outside remote control8,630$9.50
D55Console (includes floor-mount shifter)129,477$47.40
D91Band, front accent24,370$14.75
F41Suspension, special purpose front/rear5,968$10.55
G80Positraction Rear Axle31,792$42.15
G94Rear Axle, 3.31 Ratio------
G96Rear Axle, 3.55 Ratio------
G97Rear Axle, 2.73 Ratio------
H01Axle, optional 3.07:1 ratio560$2.15
H05Axle, optional 3.73:1 ratio2,281$2.15
J50Power Brakes, front and rear drum24,549$42.15
J52Power Brakes, front disc, rear drum14,899$79.00
J56Brakes, h/d front disc, met. rear drum205$105.35
J65Brakes, front and rear drum, metallic1,217$36.90
K02Fan, temperature controlled (V8 only)2,375$15.80
K19Air Injector Reactor (required Calif)34,096$44.75
K24Ventilation, engine closed positive34,503$5.25
K30Speed and Cruise Control305$50.05
K76Generator, 61-amp Delcotron136$21.10
K79Generator, 42-amp Delcotron362$10.55
L22Engine, 250ci, 155hp Turbo-Thrift 6-cyl38,165$26.35
L30Engine, 327ci, 275hp Turbo-Fire V825,287$92.70
L35Super Sport, with 396ci, 325hp engine4,003$263.30
L48Super Sport, with 350ci, 295bp engine29,270$210.65
L78Super Sport, with 396ci, 375hp engine1,138$500.30
M11Shift Lever, floor mounted12,051$10.55
M13Transmission, special 3-speed manual681$79.00
M20Transmission, 4-speed wide range manual45,806$184.35
M21Transmission, 4-speed close ratio man1,733$184.35
M35Transmission, Powerglide automatic122,727$184.35
M40Transmission, Turbo Hydra-Matic auto1,453$226.45
N10Exhaust System, dual6,722$21.10
N30Steering Wheel, deluxe30,967$7.40
N33Tilt Steering Column7,980$42.15
N34Steering Wheel, walnut-grained plastic8,065$31.60
N40Power Steering92,181$84.30
N44Special Steering, quick ratio6,155$15.80
N61Exhaust System, dual/deep-tone mufflers13,748$21.10
N96Wheel Covers, mag style6,630$73.75
PQ2Tires, 7.35xl4 2-ply nylon white stripe10,913$52.00
PW6Tires, D70xl4 2-ply nylon red stripe8,330$62.50
P01Wheel Covers, bright metal137,163$21.10
P02Wheel Covers, simulated wire6,577$73.75
P12Wheels, (5),14×63,667$5.30
P58Tires, 7.35xl4 2-ply whitewall138,998$31.35
P676.95 – 14-4 PR Tires, Whitewall
T60Battery, heavy-duty7,964$7.40
U03Horn, tri-volume (coupe)1,580$13.70
U15Speed Warning Indicator3,698$10.55
U17Special Instruments (req. V8 & console)27,078$79.00
U25Light, luggage compartment24,787$2.65
U26Light, underhood22,965$2.65
U27Light, glovebox11,032$2.65
U28Light, ashtray25,538$1.65
U29Lights, courtesy (coupe)23,691$4.25
U35Clock, electric (included with RPO U17)13,185$15.80
U57Stereo Tape System2,746$128.50
U63Radio, AM pushbutton174,021$57.40
U69Radio, AM-FM pushbutton6,232$133.80
U73Antenna, manual rear mount32,223$9.50
U80Speaker, rear seat27,701$13.20
V01Radiator, heavy duty6,190$10.55
V31Guards, front bumper35,154$12.65
V32Guards, rear bumper35,029$9.50
Z21Style Trim Group79,016$40.05
Z22Rally Sport Package64,842$105.35
Z23Interior, special74,648$10.50
Z28Special Performance Package (coupe)602358.10
Z87Custom Interior69,103$94.80


1967 Colors


Paint Code

Exterior

Soft Top

Stripes

Interiors

AA

Tuxedo Black

Bk-Mb-W

W

B-Bb-Bk-G-Pb-R-T-Y

CC

Ermine White

Bk-Mb-W

Bk

B-Bb-Bk-G-Pb-R-T-Y

DD

Nantucket Blue

Bk-Mb-W

W

B-Bb-Bk-Pb

EE

Deepwater Blue

Bk-Mb-W

W

B-Bb-Bk-Pb

FF

Marina Blue

Bk-Mb-W

Bk-W

B-Bb-Bk-Pb

GG

Grenada Gold

Bk-Mb-W

Bk

Bk-G-Pb-Y

HH

Mountain Green

Bk-Mb-W

Bk

Bk-Pb

KK

Emerald Turquoise

Bk-Mb-W

Bk

Bk-Pb-T

LL

Tahoe Turquoise

Bk-Mb-W

W

Bk-Pb-T

MM

Royal Plum

Bk-Mb-W

W

Bk-Pb

NN

Madeira Maroon

Bk-Mb-W

W

Bk-G-Pb-R

RR

Bolero Red

Bk-Mb-W

Bk-W

Bk-Pb-R

SS

Sierra Fawn

Bk-Mb-W

Bk

Bk-G-Pb-Y

TT

Capri Cream

Bk-Mb-W

Bk

Bk-G-Pb-Y

YY

Butternut Yellow

Bk-Mb-W

Bk

Bk-Pb-T-Y




Vinyl Top Colors

  • White (code=1)
  • Black (code=2)
  • Blue (code=3)

Convertible Top Colors

  • White (code=1)
  • Black (code=2)
  • Blue (code=3)

Interior Codes

  • 707=Y-Cb

  • 709=G-Sb

  • 711=G-Cb

  • 712=G-Cbh

  • 716=Bb-Cbh

  • 717=B-Sb

  • 732=Bb-Cb

  • 739=B-Sbh

  • 741=R-Sb

  • 742=R-Cb

  • 756=Bk-Sbh

  • 760=Bk-Sb

  • 765=Bk-Cb

  • 767=Bk-Cbh

  • 779=T-Cb

  • 796=G-Sbh

  • 797=Pb-Cb

Abbreviations

  • B = Blue

  • Bb = Bright Blue

  • Bk = Black

  • Cb = Custom Bucket

  • Cbh = Custom Bench

  • G = Gold, Mb = Medium Blue

  • Pb = Parchment/Black

  • R = Red, Sb = Standard Bucket

  • Sbh = Standard Bench

  • T = Turquoise

  • W = White

  • Y = Yellow
