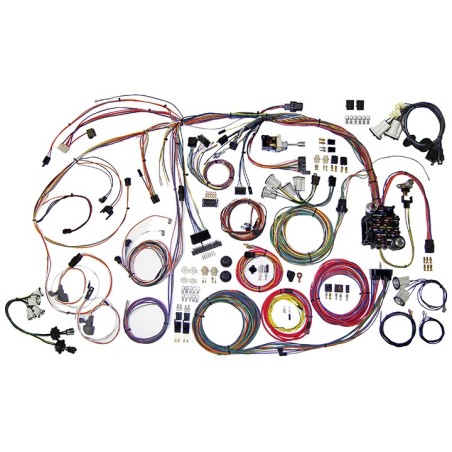

Classic Update complete wiring kits are made for the restoration enthusiast who wants some modern amenities in their classic vehicle. These kits include everything you need to modernize your classic vehicle: Headlight, Dimmer, and Ignition Switches; Boots, Tubes, and Grommets; Fuses, Relays, and Flashers; Original Connectors, Terminals, and Disconnects.Replacement headlight switch with internal 30 amp circuit breaker included. Retention collar nut, adjustable length shaft, and custom knob are also included.Standard turn signal flasher, hazard flasher, and horn relay mounted on fuse panel.Fuse box designed to fit in original location. All required hardware supplied. New ATO fuse allows easy fuse and circuit breaker accessibility. Harness is laid out and formed to allow for nearly all after market accessories such as; gauge packages, wiper systems, heat and air conditioning systems, etc.Original switch connector bodies! (Exclusive to American Autowire)Steering column connectors will plug directly into most after market steering columns as well as 1970-73 and later GM columns which utilize stock GM turn signal switches The original column can also be wired by using the supplied mating connector and terminals.Along with wiring for your original dome/interior lighting, we have included separate under dash light sockets.Instrument Cluster wiring is designed with a �cluster harness disconnect" system for easy service and assembly. All original terminals, connectors (exclusively from American Autowire), and light sockets are also supplied for original cluster gauges. However, the best aspect of the disconnect system is that any gauge cluster package can be easily and neatly wired in. This includes AUTOMETER, CLASSIC INSTRUMENTS, DAKOTA DIGITAL, STEWART WARNER, and VDO just to name a few.Rear body harness assembly is designed to plug into the main harness in the original connector bodies. Flexibility in harness design allows for original or custom routing. Rear body wiring includes backup light wires and mating connectors for backup light leads. License plate lead, connectors, and terminals included. Fuel tank sender wire and terminal included.EXCLUSIVE! You will find all the original style light socket pigtails packed into every aspect of this system making it the most complete system of its type in the industry!New floor dimmer switch is provided. Wire length and connection accommodate original floor mount dimmer switch.EXCLUSIVE! Original bulkhead connector for the engine and front light wiring is included and ready for installation. Original routing of the new harness without any body modifications!Engine wiring includes connectors for original points type as well as H.E.I. distributors. Power and tach connectors supplied for GM H.E.I. distributors. Alternator connectors are supplied for GM �SI" series internally regulated alternators. GM �CS" series alternator adapter is available separately.Engine wiring includes connectors for original points type as well as H.E.I. distributors. Power and tach connectors supplied for GM H.E.I. distributors. Alternator connectors are supplied for GM �SI" series internally regulated alternators. GM �CS" series alternator adapter is available separately.Front lighting includes extra long leads for special routing when custom under hood appearance is desired. All headlight, park light, and directional light connectors and terminals are provided, as well as a switched trigger wire for electric fan relay (usually recommended with AC).Color schematics and easy to understand installation instructions included.Helpful Articles: Wiring Tips & Tricks
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
- Ground Up Part #: 510336
- Brand: American Autowire
- Manufacturer Part #: 510336
- Sold As: Each
- Shipping Details: This item ships UPS Ground.
Customers Also Bought These With 510336
Installation Time: Info Unavailable
Installation Difficulty: Info Unavailable
Installation Guides: click here to download
