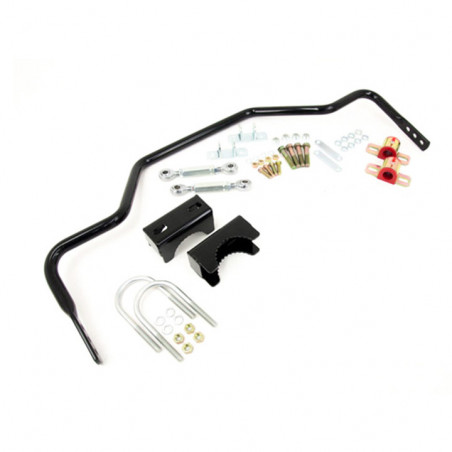

UMI Solid .75 Inch AutoX Rear Sway Bar, 3 Inch Rear End Housings, Black

UMI Solid .75 Inch AutoX Rear Sway Bar, 3 Inch Rear End Housings, Black

Product May Vary From Above Listed Image

(0) Reviews

1978-1987 Grand Prix UMI Solid .75 Inch AutoX Rear Sway Bar, 3 Inch Rear End Housings, Black 3052-300-B

Name: UMI Solid .75 Inch AutoX Rear Sway Bar, 3 Inch Rear End Housings, Black
Brand: UMI Performance
SKU: UMI-3052-300-B
Price: 499.99 USD
Availability: BackOrder

Ground Up Part #: UMI-3052-300-B

Manufacturer Part #: 3052-300-B

No Vehicle Selected

El Camino Monte Carlo Malibu Grand Prix Cutlass Regal

(fits 6 models)

Product May Vary From Above Listed Image

No Vehicle Selected

$499.99 (Each)

Ready to ship directly from the manufacturer

This product is eligible for free shipping with a promotional code.

You’re only $299 away from qualifying for free shipping with promotional code FSHIP!

Not Eligible For Discounting
Eligible For Free Shipping

Part Details Related Products Vehicle Fitment Reviews

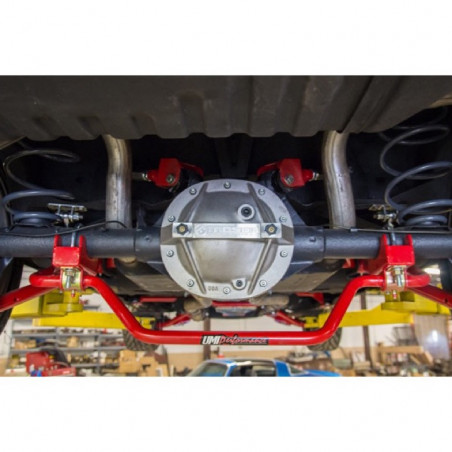

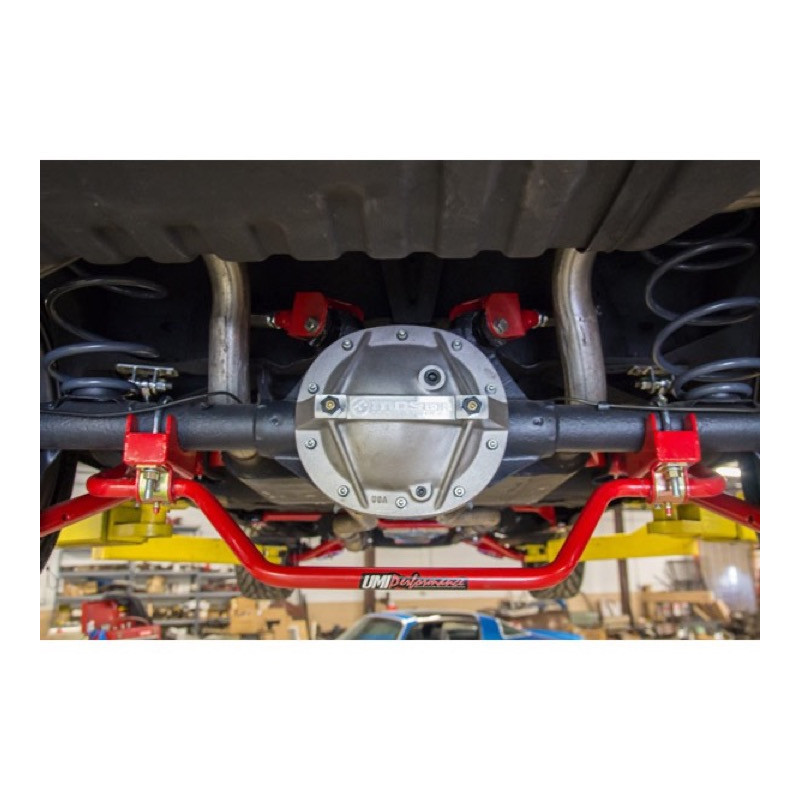

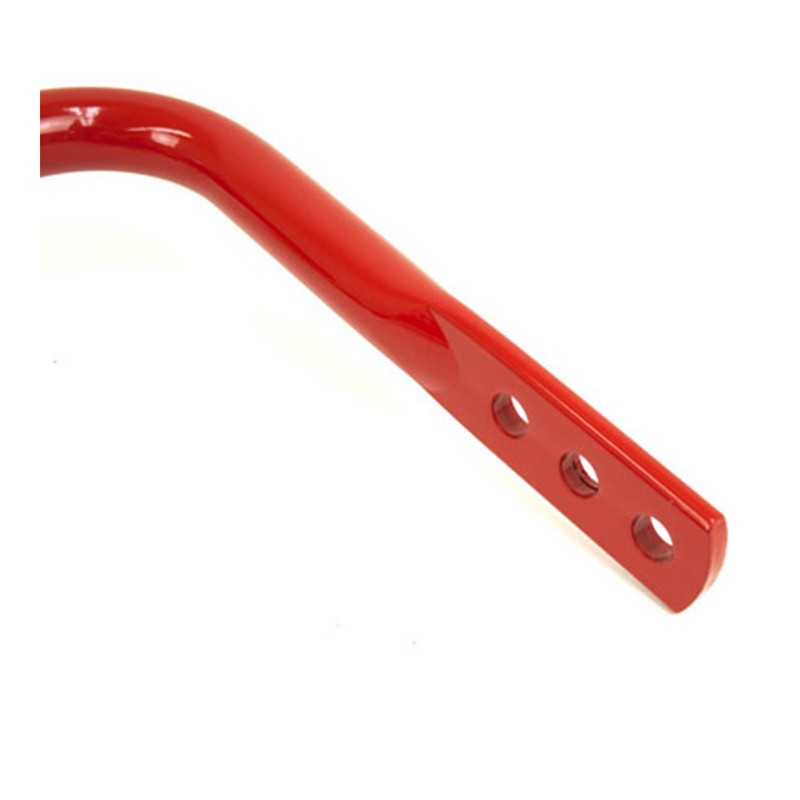

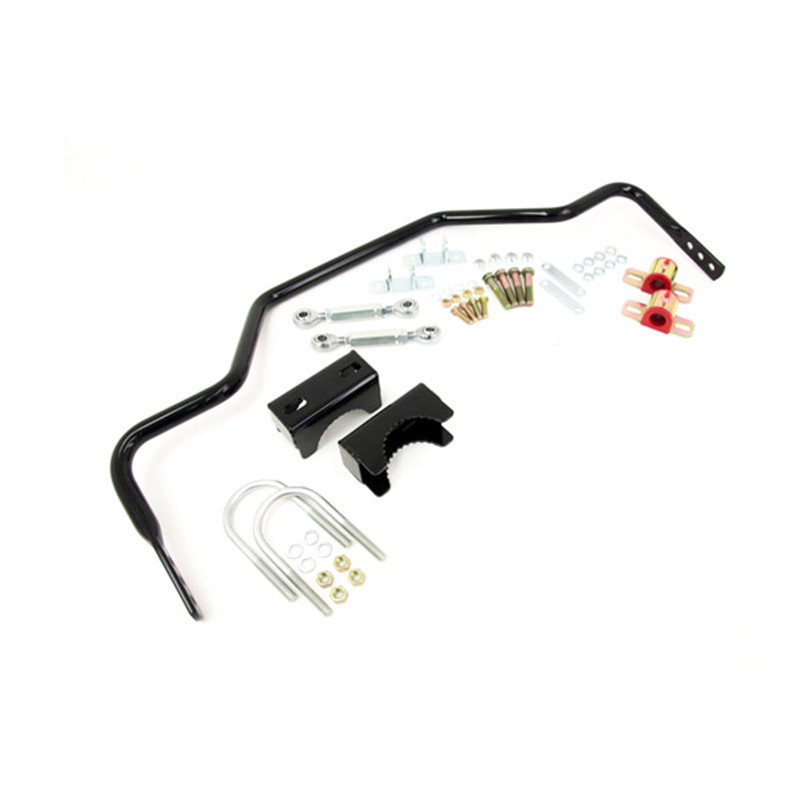

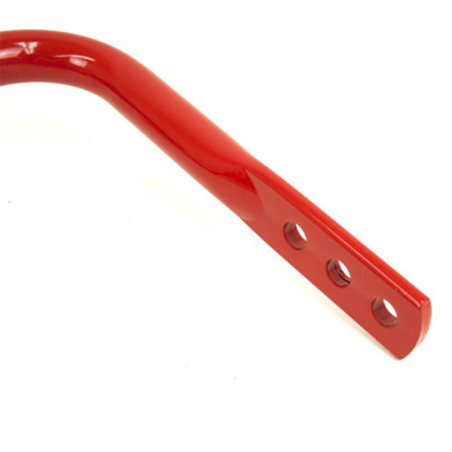

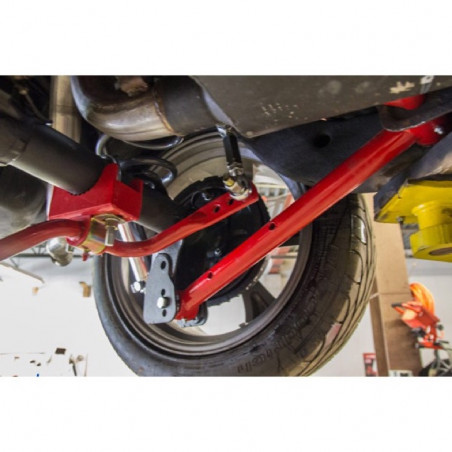

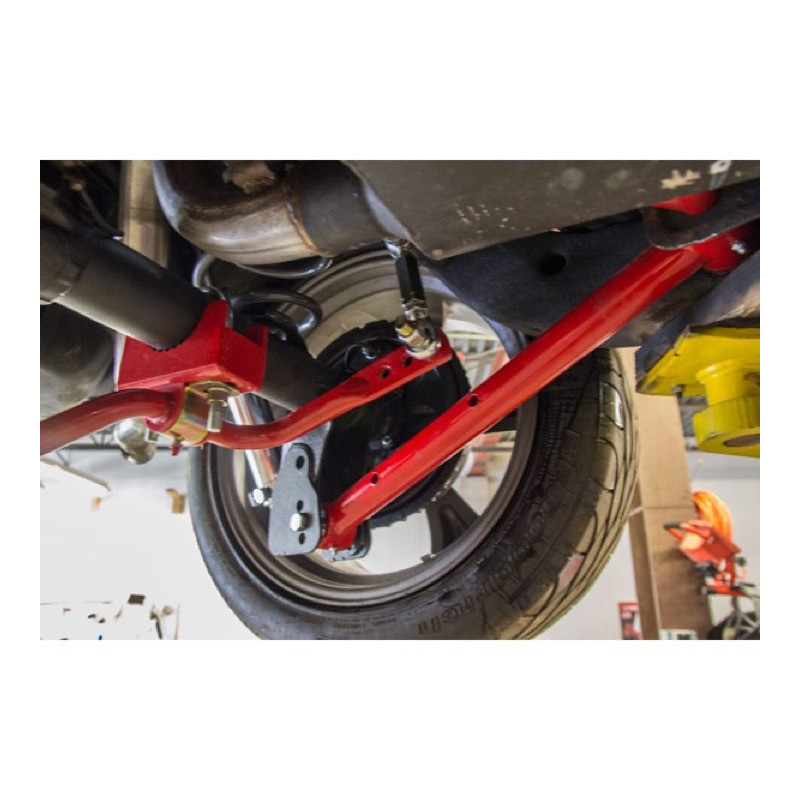

UMI's Grand Prix 3/4 inch solid rear sway bar is designed specifically to excel when used in autocross applications. The Grand Prix chassis, when coupled with the common high rate PT bar, tends to lift the inside rear tire during competition. The lower rate UMI-3052 bar prevents inside rear wheel lift while still providing roll resistance and enhancing rotation. The chassis and differential housing mounts reduce bind normally associated with the factory style bars. UMI's tried and true CNC machined clamping system allows differential housing mounting on 2.75 inch, 3 inch and 3.25 inch diameter housings. These can be bolted on, or welded for additional security. The double shear chassis mounts are held in place by four 3/8 inch fasteners. Drilling through the crossmember is required and a template/instructions are included. Choose the longest hole for street and high speed courses, middle hole for medium, and the shortest hole for maximum rotation.Features:Light weight 3/4 inch solid rear sway bar, CNC bent 4140 CrMoThree rates: 346 lb/in, 262 lb/in, 205 lb/inDesigned to clear all rear ends - Factory OEM 7.5, GN 8.5, 12-Bolt, 9 Inch, M9, S60 and othersHeavy duty race style CrMo spherical rod ends with Teflon raceHigh strength 4140 CrMo zinc plated u-boltsLaser cut sway bar mounts with grip teeth and reinforcement gussets1 Inch billet steel hex adjuster for extreme strengthPremium greaseable polyurethane bushings100 % bolt-in installationDurable long lasting powder coat finish

Manufacturer Part Number : 3052-300-B

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Brand

Additional Information

SS396.com Part #: UMI-3052-300-B
Brand: UMI Performance
Manufacturer Part #: 3052-300-B
Sold As: Each
Shipping Details: This Item Ships Free!

Customers Also Bought These With UMI Solid .75 Inch AutoX Rear Sway Bar, 3 Inch Rear End Housings, Black

Vehicle Fitment

Make	Model	Year	Body Style
Pontiac	Grand Prix	1978	-
Pontiac	Grand Prix	1979	-
Pontiac	Grand Prix	1980	-
Pontiac	Grand Prix	1981	-
Pontiac	Grand Prix	1982	-
Pontiac	Grand Prix	1983	-
Pontiac	Grand Prix	1984	-
Pontiac	Grand Prix	1985	-
Pontiac	Grand Prix	1986	-
Pontiac	Grand Prix	1987	-
