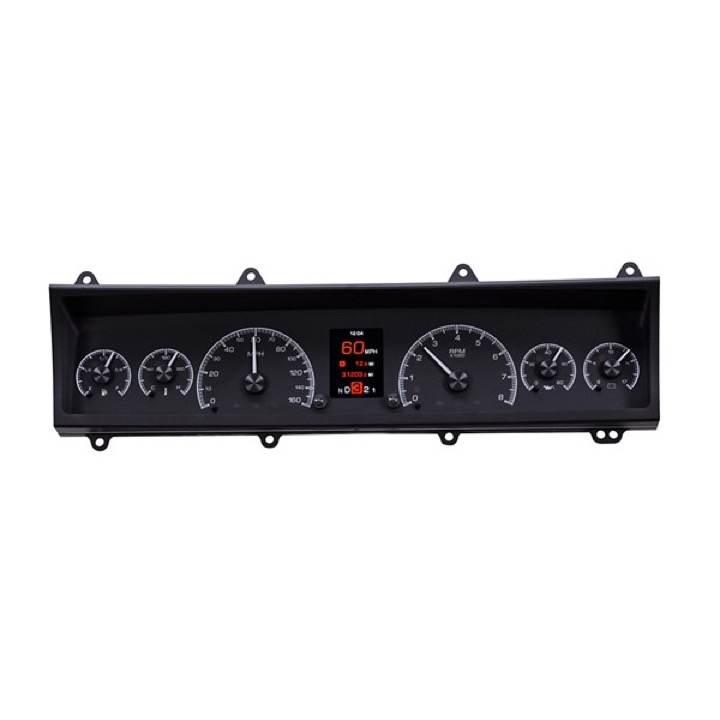

1969-1976 Chevrolet Dakota Digital HDX Instrument System - Black Alloy Gauge Face HDX-69C-NOV-K

Ground Up Part #: HDX-69C-NOV-K

Manufacturer Part #: HDX-69C-NOV-K

No Vehicle Selected
(fits 1 model)
No Vehicle Selected
(fits 1 model)
$1,420.95 (Each)

MSRP: $1495.00

(You Save: 5%)

closed box

Estimate Shipping

This product is eligible for free shipping with a promotional code.

You’re only $299 away from qualifying for free shipping with promotional code F299!

  • cross Not Eligible For Discounting
  • check mark Eligible For Free Shipping
Part Details Vehicle Fitment Reviews

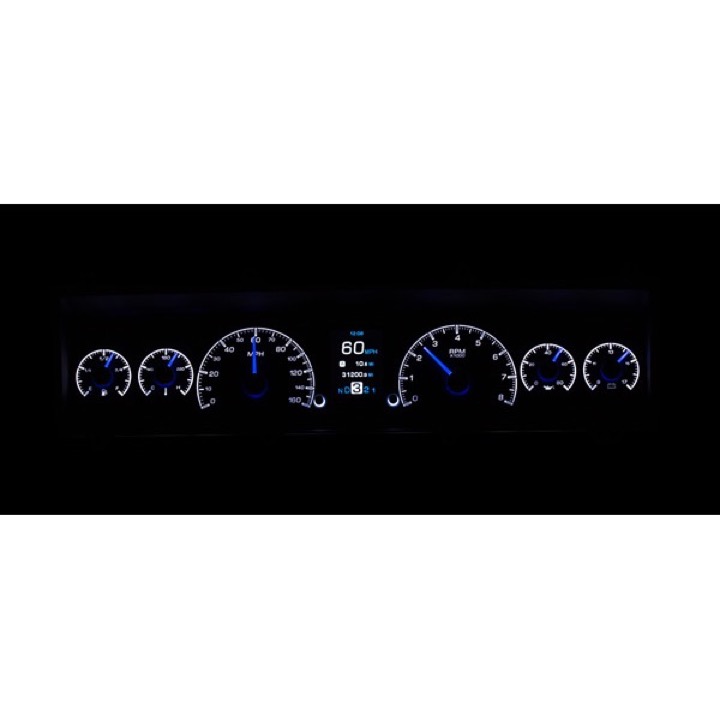

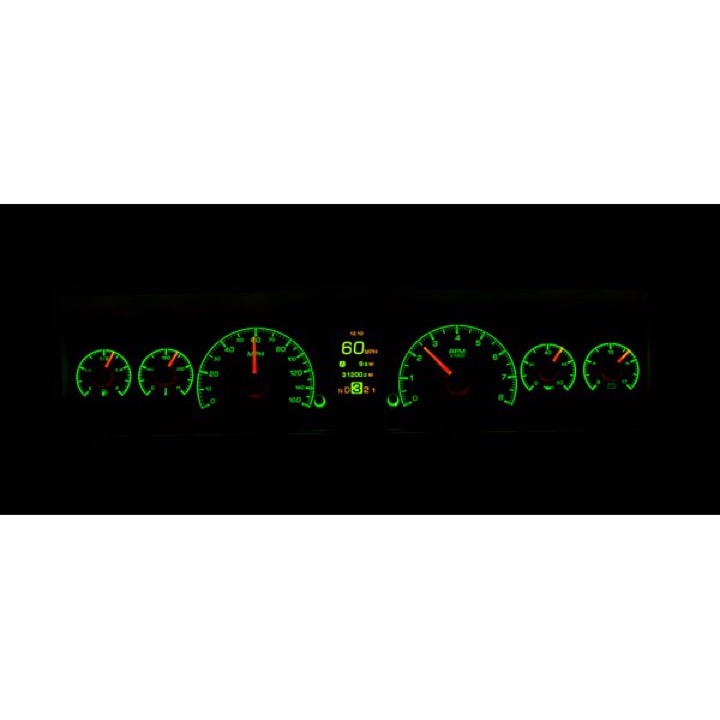

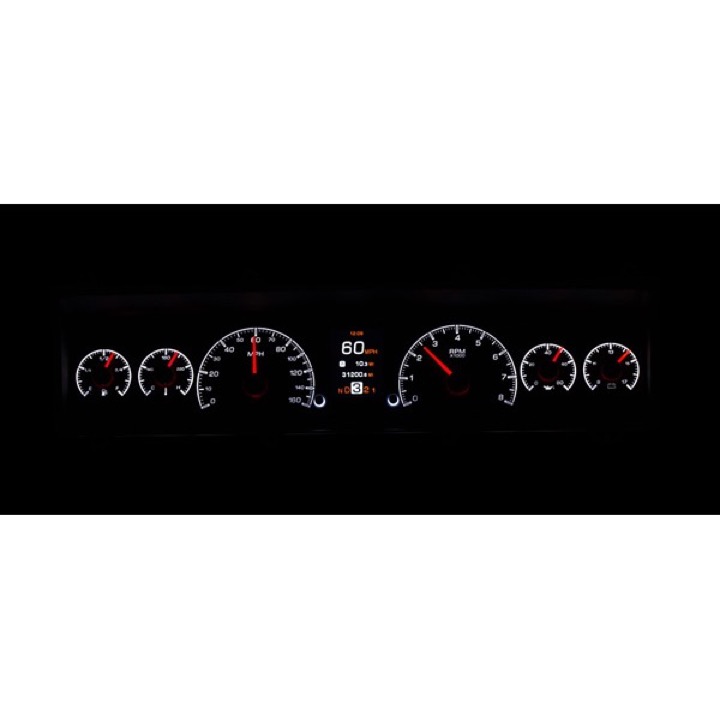

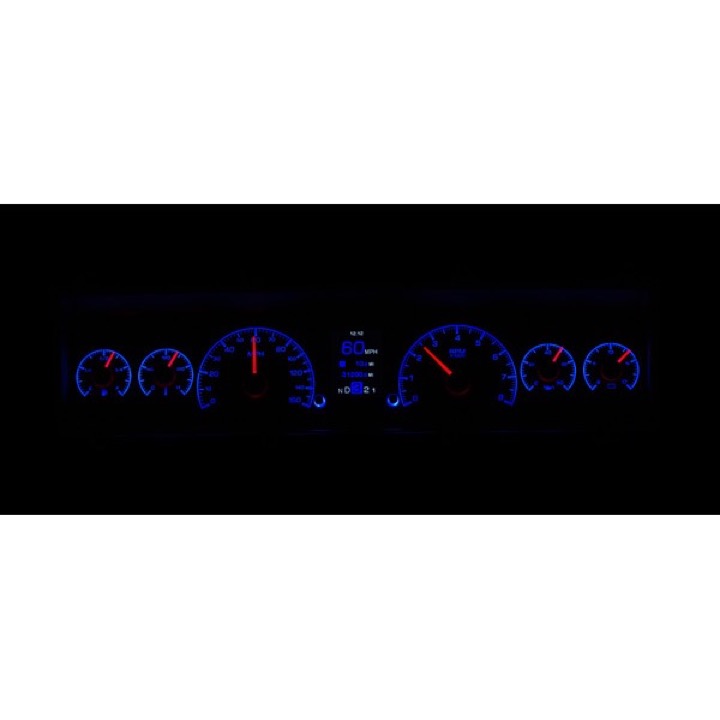

Chevrolet's take on the X-Body platform has proven extremely popular, and we just couldn't skip over it! Flesh out your stock instrument bezel with six analog instruments and a large TFT message center. Take your pick between black or silver face styling, and enjoy 21st century technology in a 1960s wrapper!Each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle harness sourced signals and supplied, solid-state sending units connecting cleanly to their respective terminals.Features:Included Sensors:Water Temperature: 1/8 in. NPT, ground isolated sensor with a 10ft harnessOil Pressure: 1/8 in. NPT solid state sensor with a 10ft harnessCable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10ft harnessBushings: Each kit comes with 1/8 inch to 1/4 inch, 3/8 inch and 1/2 inch NPT bushings along with bushings for 12mm and 16mm x 1.5 threadsCalibration & Use:Pushbutton: All HDX series instrument systems include LED lit onboard capacitive touch pushbuttons through the gauge face. These pushbuttons provide quick and consistent access to all functions, either in driving mode or while in the setup menu. Button press feedback is available through the TFT message center, or through the included buzzer. Additionally, remote mounted switches can be wired into the HDX system if this proves more accessible based upon seating position. The HDX series can also be completely configured through the Bluetooth app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the HDX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or secondary displayCalibration: All calibration settings are handled through onboard capacitive touch switches or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short drive of the vehicle.Manufacturer Part Number: HDX-69C-NOV-KManufacturer Part Number: HDX-69C-NOV-KManufacturer Part Number: HDX-69C-NOV-K

Part Notes:

Bezel is shown for illustration purposes and is not included. HDX Systems require use of an OEM or reproduction style bezel, sold separately.

warning WARNING: Cancer & Reproductive Harm -
Brand Logo Dakota Digital
Additional Information
  • Ground Up Part #: HDX-69C-NOV-K
  • Brand: Dakota Digital
  • Manufacturer Part #: HDX-69C-NOV-K
  • Sold As: Each
  • Shipping Details: This item ships UPS ground.
Vehicle Fitment
Make Model Year Body Style
Chevrolet Nova 1969 -
Chevrolet Nova 1970 -
Chevrolet Nova 1971 -
Chevrolet Nova 1972 -
Chevrolet Nova 1973 -
Chevrolet Nova 1974 -
Chevrolet Nova 1975 -
Chevrolet Nova 1976 -
Buick Apollo 1973 -
Buick Apollo 1974 -
Buick Apollo 1975 -
Buick Skylark 1975 -
Buick Skylark 1976 -
Oldsmobile Omega 1973 -
Oldsmobile Omega 1974 -
Oldsmobile Omega 1975 -
Oldsmobile Omega 1976 -
Pontiac Ventura 1971 -
Pontiac Ventura 1972 -
Pontiac Ventura 1973 -
Pontiac Ventura 1974 -
Pontiac Ventura 1975 -
Pontiac Ventura 1976 -
Installation Time
Installation Time: Info Unavailable
Installation Difficulty
Installation Difficulty: Info Unavailable
Installation Guides
Installation Guides: click here to download
