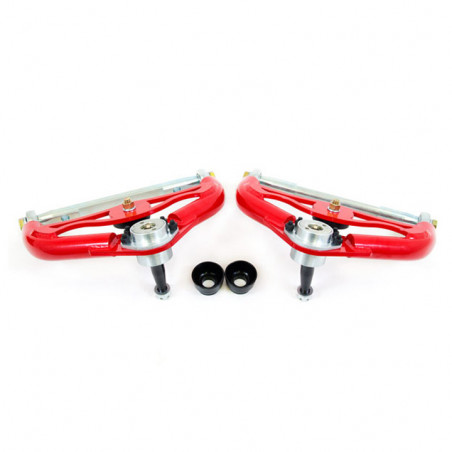

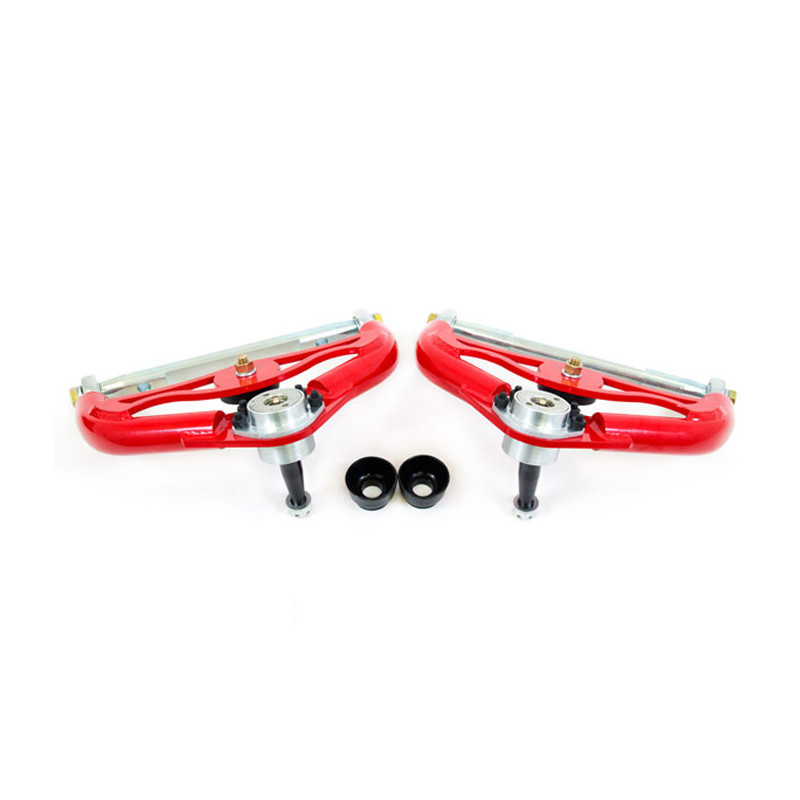

UMI Tubular Front Upper A-Arms, Adjustable 1 Inch Taller Ball Joints, Red

UMI Tubular Front Upper A-Arms, Adjustable 1 Inch Taller Ball Joints, Red

Product May Vary From Above Listed Image

(0) Reviews

1978-1988 Monte Carlo UMI Tubular Front Upper A-Arms, Adjustable 1 Inch Taller Ball Joints, Red 3056-3-R

Name: UMI Tubular Front Upper A-Arms, Adjustable 1 Inch Taller Ball Joints, Red
Brand: UMI Performance
SKU: UMI-3056-3-R
Price: 729.99 USD
Availability: BackOrder

Ground Up Part #: UMI-3056-3-R

Manufacturer Part #: 3056-3-R

No Vehicle Selected

El Camino

Monte Carlo

Malibu Grand Prix Cutlass Regal

(fits 6 models)

Product May Vary From Above Listed Image

No Vehicle Selected

$729.99 (Pair)

Ready to ship directly from the manufacturer

This product is eligible for free shipping with a promotional code.

You’re only $299 away from qualifying for free shipping with promotional code FSHIP!

Not Eligible For Discounting
Eligible For Free Shipping

Part Details Related Products Vehicle Fitment Reviews

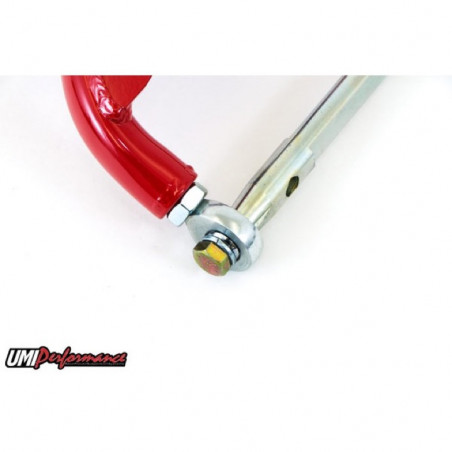

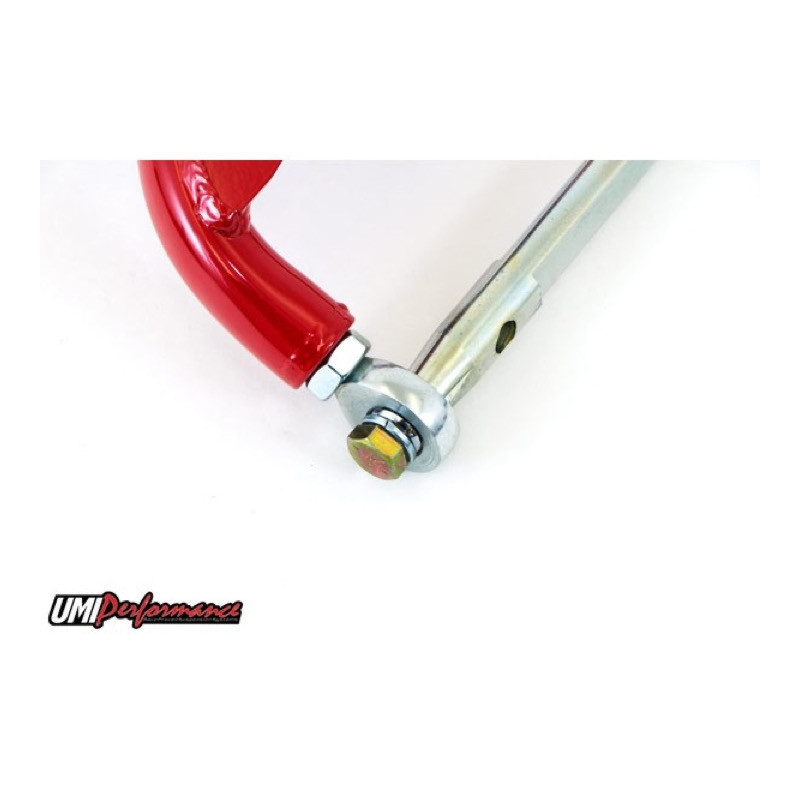

UMI's 3056-3 arms are the ultimate in performance and are race proven on the UMI Green Machine. These adjustable upper a-arms are designed to excel in Pro-Touring, road race, auto-x and hot street corner carving. The race quality rod ends provide shim-free camber and caster adjustment along with ultimate smooth travel. This arm features a relocated ball joint pad to increase caster and improve stability and steering feel as well as a shortened cross shaft to ball joint distance. We recommend the 3056 arm for all racing applications. Arm includes QA1 1 inch taller low friction ball joints for improved camber curve. 100% manufactured, tested and raced out of Philipsburg, PA USA.Features:Relocated ball joint pad for increased caster and improved steering feel without excess shims1 inch taller ball joint for improved camber curveLaser cut ball joint mounting pad0.120 inch wall thickness, 1.250 inch diameter DOM tubingTIG welded for superior strength and clean looks4130 chromoly cross shafts, CNC machined & zinc platedPolyurethane bump stops includedTravel limiting bolt compatibleDirect bolt-in compatible with factory or UMI lower a-armMay also work in conjunction with other lower a-arms and/or spindlesPackage includes recommended alignment specs and detailed installation instructionsDesigned, tested, manufactured and raced in Philipsburg, PA - USAExact upper a-arms on UMI's '79 Monte Carlo - The Green Machine

Manufacturer Part Number : 3056-3-R

Part Notes:

UPPER A-ARM UMI-3056-3 INCLUDES 1 INCH TALLER BALL JOINTS AND IS DESIGNED TO WORK WITH FACTORY SPINDLES. IN MOST CASES SHIMS ARE NOT NEEDED. SHIMS MAY STILL BE REQUIRED ON SOME APPLICATIONS.

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Brand

Additional Information

SS396.com Part #: UMI-3056-3-R
Brand: UMI Performance
Manufacturer Part #: 3056-3-R
Sold As: Pair
Shipping Details: This Item Ships Free!

Customers Also Bought These With UMI Tubular Front Upper A-Arms, Adjustable 1 Inch Taller Ball Joints, Red

Vehicle Fitment

Make	Model	Year	Body Style
Chevrolet	Monte Carlo	1978	-
Chevrolet	Monte Carlo	1979	-
Chevrolet	Monte Carlo	1980	-
Chevrolet	Monte Carlo	1981	-
Chevrolet	Monte Carlo	1982	-
Chevrolet	Monte Carlo	1983	-
Chevrolet	Monte Carlo	1984	-
Chevrolet	Monte Carlo	1985	-
Chevrolet	Monte Carlo	1986	-
Chevrolet	Monte Carlo	1987	-
Chevrolet	Monte Carlo	1988	-

Installation Time: Info Unavailable

Installation Difficulty: Info Unavailable

Installation Guides: Unavailable – Request Guide Creation
