1968-1972 El Camino UMI Stage 1.5 Handling Package, 1 Inch Lowering, Black ABF815-1-B

Ground Up Part #: UMI-ABF815-1-B

Manufacturer Part #: ABF815-1-B

No Vehicle Selected
information
Chevelle

El Camino

Monte Carlo
(fits 3 models)
No Vehicle Selected
information
Chevelle

El Camino

Monte Carlo
(fits 3 models)
$1,409.99 (Kit)
closed box

Estimate Shipping

  • cross Not Eligible For Discounting
  • cross Not Eligible For Free Shipping
Part Details Vehicle Fitment Reviews

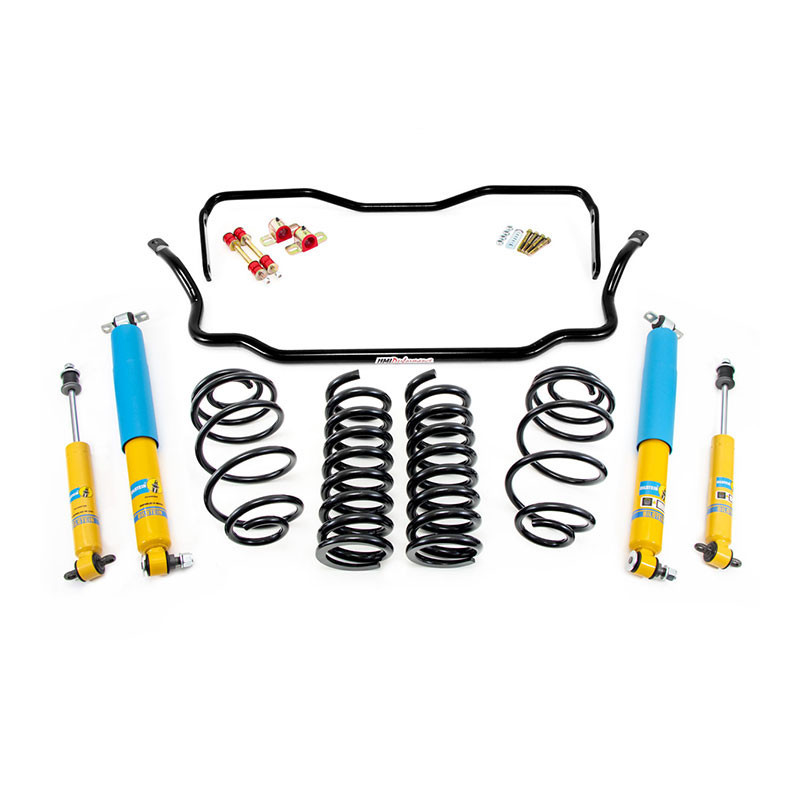

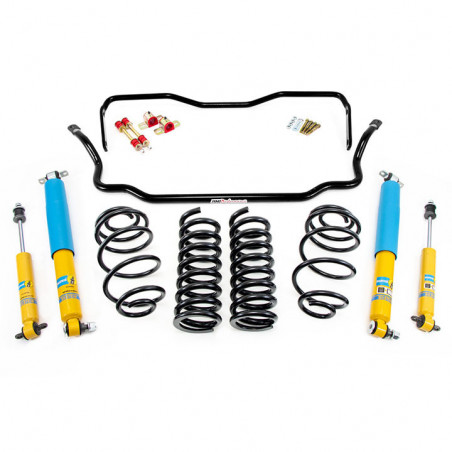

UMI's Stage 1.5 kit is the simple way to dramatically improve the handling and performance of your 1968-1972 El Camino. We start with our original Stage 1 kit and take it to the next level by adding UMI's new race worthy rebound adjustable monotube shocks. The 20-click adjustment range covers street cruising, corner carving and even autocross or road course use. The Stage 1.5 kit also tunes up the camber curve by including 1/2 inch taller than stock upper ball joints that easily bolt to factory and most aftermarket a-arms. High performance lowering springs feature medium stiffness to control body movement and reduce floating while still providing a comfortable, sporty ride. The UMI rebound adjustable monotube shocks feature a large diameter piston and nitrogen charge to dampen bumps and provide a crisp feel without being harsh. The shock is built with heavy duty mounts to ensure durability and fits in the stock location. They are easily adjustable with an external adjustment knob - no tools required. Stage 1.5 balances out with our tried and true 1.25 inch front sway bar and 1 inch rear sway bars reducing body roll and providing excellent chassis balance when handling at the limit. Every component in this kit, as with all UMI products, is made in the USA.
Features:
  • Race-proven rebound adjustable monotube shocks feature fixed medium compression and adjustable medium/high rebound for comfort combined with performance.
  • Suitable for corner carving, auto-x and road racing while still being street friendly.
  • Shocks are adjustable without tools, just turn the knob (20 clicks).
  • 1.25 inch CrMo front and 1 inch heat treated rear sway bars help control body roll.
  • 530lb/in linear front, 130lb/in linear rear lowering springs ensure crisp handling and a sporty ride.
  • 1/2 inch taller than stock upper ball joints to improve camber curve.

Manufacturer Part Number : ABF815-1-B

Part Notes:

Small Block and LS:Small Block Chevrolet and Pontiac 400 tend to sit level with this kit. Lightweight LS may require spring trimming.Big Block Engines:An additional 1/4 inch front end drop may occur on vehicles with full weight big block engines.

warning WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Brand
Brand Logo UMI Performance
Additional Information
  • SS396.com Part #: UMI-ABF815-1-B
  • Brand: UMI Performance
  • Manufacturer Part #: ABF815-1-B
  • Sold As: Kit
  • Shipping Details: This item ships in multiple oversize boxes.
Vehicle Fitment
Make Model Year Body Style
Chevrolet El Camino 1968 -
Chevrolet El Camino 1968 -
Chevrolet El Camino 1969 -
Chevrolet El Camino 1970 -
Chevrolet El Camino 1971 -
Chevrolet El Camino 1972 -
Installation Time
Installation Time: Info Unavailable
Installation Difficulty
Installation Difficulty: Info Unavailable
