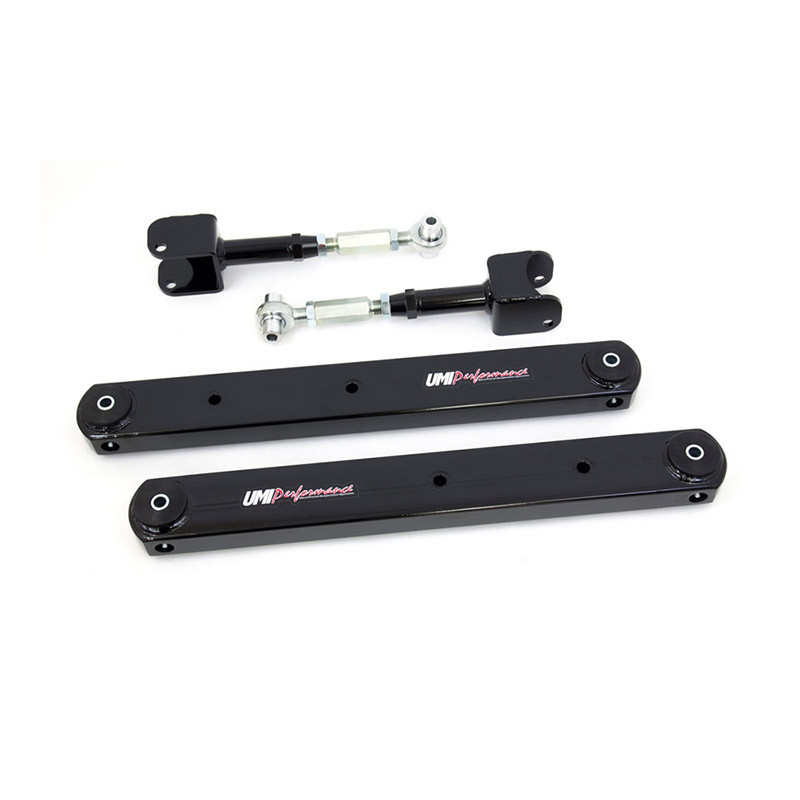

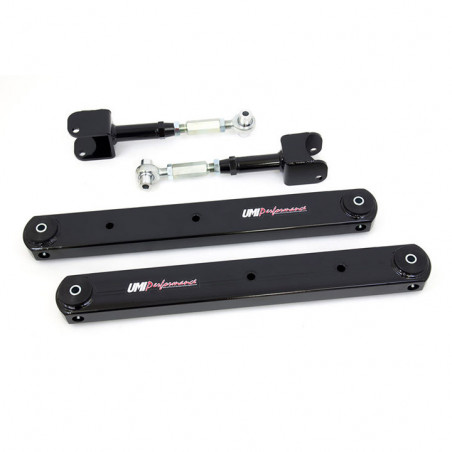

1968-1972 El Camino UMI Fully Boxed Lower and Adjustable Upper Control Arm Kit - Black 402117-B

Ground Up Part #: UMI-402117-B

Manufacturer Part #: 402117-B

No Vehicle Selected
information
Chevelle

El Camino

Monte Carlo
(fits 3 models)
No Vehicle Selected
information
Chevelle

El Camino

Monte Carlo
(fits 3 models)
$599.99 (Kit)
closed box

Estimate Shipping

This product is eligible for free shipping with a promotional code.

You’re only $299 away from qualifying for free shipping with promotional code F299!

  • cross Not Eligible For Discounting
  • check mark Eligible For Free Shipping
Part Details Vehicle Fitment Reviews
UMI's rear control arm kit is a bulletproof addition to your 1968-1972 El Camino. Suitable for street, strip or corner carving, this kit minimizes suspension deflection for a crisp handling setup and less wheel hop. Kit includes UMI's premium fully boxed lower control arms designed to offer a factory look while still providing enhanced performance to the vehicle. The fully boxed lower control arms are built from 3 inch x 1-1/2 inch rectangular tubing and feature CNC machined radius ends and reinforced sway bar holes. Boxed control arms include fully capped radius ends to prevent debris from entering into the arm while offering the factory look to your classic. The heavy duty upper control arms feature on-car adjustment using heavy duty chromoly adjusters and Teflon lined rod ends. The premium rod ends work as a solid bushing control arm with suspension articulation, designed for harder launches and less friction. Upper control arms feature heavy duty 1/4 inch thick laser cut mounting pads designed to work on all rear end housings. UMI's control arms are CNC machined for accuracy and assembled with high quality greaseable polyurethane bushings.
Features:
  • 1/8 inch wall mild steel tubing
  • Fully boxed design uses nicely capped ends to maintain factory look
  • CNC machined for accuracy and consistency
  • MIG welded heavy duty bushing holders
  • Chromoly and zinc plated heavy duty on-car adjuster
  • Heavy Duty 3/4 inch chromoly Teflon lined rod ends
  • CNC laser cut 1/4 inch upper mounting pad
  • Greaseable polyurethane bushings with zinc plated steel sleeves
  • Durable and long lasting powder coat finish
  • Made in Philipsburg, PA - USA

Manufacturer Part Number : 402117-B

warning WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Brand
Brand Logo UMI Performance
Additional Information
  • SS396.com Part #: UMI-402117-B
  • Brand: UMI Performance
  • Manufacturer Part #: 402117-B
  • Sold As: Kit
  • Shipping Details: This item ships UPS Ground.
Vehicle Fitment
Make Model Year Body Style
Chevrolet El Camino 1968 -
Chevrolet El Camino 1969 -
Chevrolet El Camino 1970 -
Chevrolet El Camino 1971 -
Chevrolet El Camino 1972 -
Installation Time
Installation Time: Info Unavailable
Installation Difficulty
Installation Difficulty: Info Unavailable
