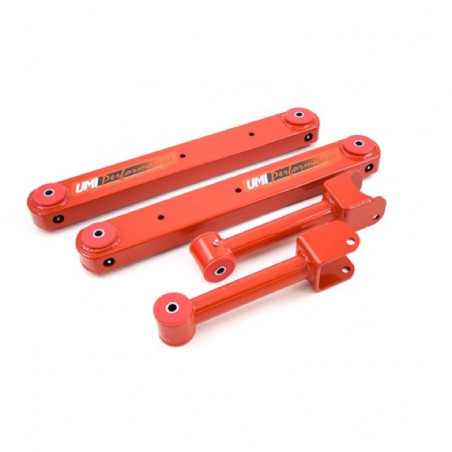

1968-1972 El Camino UMI Tubular Upper & Fully Boxed Lower Control Arm Kit - Red

Product May Vary From Above Listed Image

UMI's premium boxed lower control arms for 1968-1972 El Camino are fully boxed to offer the factory look while still providing enhanced performance to the vehicle. Our premium factory arms are built from larger 3 inch x 1-1/2 inch rectangular tubing and feature CNC machined radius ends and bushing holders. Boxed control arms include fully capped radius ends to prevent debris from entering into the arm while offering the factory look to your classic. Suitable for street, strip or corner carving, these arms minimize suspension deflection for a crisp handling setup and reduced wheel hop. Sway bar mounting holes are reinforced with TIG welded sleeves to allow factory style sway bar mounting, including UMI's popular 1 inch version. Boxed control arms are assembled with greaseable polyurethane bushings for a quiet comfortable ride.

Features:

  • 3 in. x 1-1/2 in. wall large mild steel rectangular tubing
  • Fully boxed design uses nicely capped ends to maintain factory look
  • CNC machined for accuracy and consistency
  • MIG welded heavy duty bushing holders
  • Greaseable polyurethane bushings with zinc plated sleeves
  • Durable and long lasting powder coat finish
  • Made in Philipsburg, PA - USA

Retail Price

$506.95

Your Price

$429.95

You Save: 15%

15.19%)
  • Ground Up Part # UMI-402116-R
  • Manufacturer Part # 402116-R
  • Brand UMI Performance
  • Sold As: Kit
  • Eligible For Discounting with Coupon No
  • Eligible For Free Shipping with Coupon Yes
  • Shipping Details: This item ships UPS Ground.


UMI's premium boxed lower control arms for 1968-1972 El Camino are fully boxed to offer the factory look while still providing enhanced performance to the vehicle. Our premium factory arms are built from larger 3 inch x 1-1/2 inch rectangular tubing and feature CNC machined radius ends and bushing holders. Boxed control arms include fully capped radius ends to prevent debris from entering into the arm while offering the factory look to your classic. Suitable for street, strip or corner carving, these arms minimize suspension deflection for a crisp handling setup and reduced wheel hop. Sway bar mounting holes are reinforced with TIG welded sleeves to allow factory style sway bar mounting, including UMI's popular 1 inch version. Boxed control arms are assembled with greaseable polyurethane bushings for a quiet comfortable ride.

Features:
  • 3 in. x 1-1/2 in. wall large mild steel rectangular tubing
  • Fully boxed design uses nicely capped ends to maintain factory look
  • CNC machined for accuracy and consistency
  • MIG welded heavy duty bushing holders
  • Greaseable polyurethane bushings with zinc plated sleeves
  • Durable and long lasting powder coat finish
  • Made in Philipsburg, PA - USA

Parts Application:

Average Customer Review: Not yet rated

Click here to write an review and share your thoughts with others.

Warranty:
  • UMI Performance warrants all UMI Performance products for a period of two (2) years from the original date of purchase.
  • This warranty is valid against defects in materials and workmanship for the two (2) year warranty period.  It is not valid against defect resulting from, but not limited to:
    • Misuse and/or abuse, neglect or accident.
    • Exceeding the item’s design limits.
    • Improper installation.
    • Acts of God, including lightning, floods, earthquakes, fire or high winds.
    • Damage in handling, including damage encountered during shipment.
  • This warranty is valid for the original purchaser of the UMI Product.  Warranty is not transferable or valid for second ownership.
  • This warranty shall be considered void if the warranted product is in any way altered, adjusted, tampered with or defaced.
  • The two (2) year warranty does not apply to normal wear and tear (the gradual deterioration of an asset which results naturally from use and/or age, i.e. bearings, bushings, etc.).
  • Non UMI manufactured parts are not covered or valid under this UMI Performance warranty.
  • UMI Performance cannot guarantee compatibility or performance of its products with other components used in conjunction with UMI Performance products.
  • UMI Performance cannot assume responsibility for any damages to UMI Products nor for claims for personal injury or property damage resulting from the use of UMI Performance’s products or the improper operation thereof or consequential damages arising from the products or use of the products.
  • UMI Performance two (2) year warranty excludes incidental charges incurred by the end user in the event of breakage (towing, labor, installation, etc.).  By their very nature, competition suspension parts are continuously expected to exceed to their limits (either by race or road use). UMI suspension components are designed to withstand intense race conditions, although it is impossible to control the quality of installation or the varying conditions in which they are used.
  • This warranty supersedes all other warranties and may only be modified by statement in writing, signed by UMI Performance owners/principals.
  • All Warranties implied by law, including the warranties of merchantability and fitness for a particular purpose, are hereby limited to the warranty period herein and shall expire at the end of such period.
