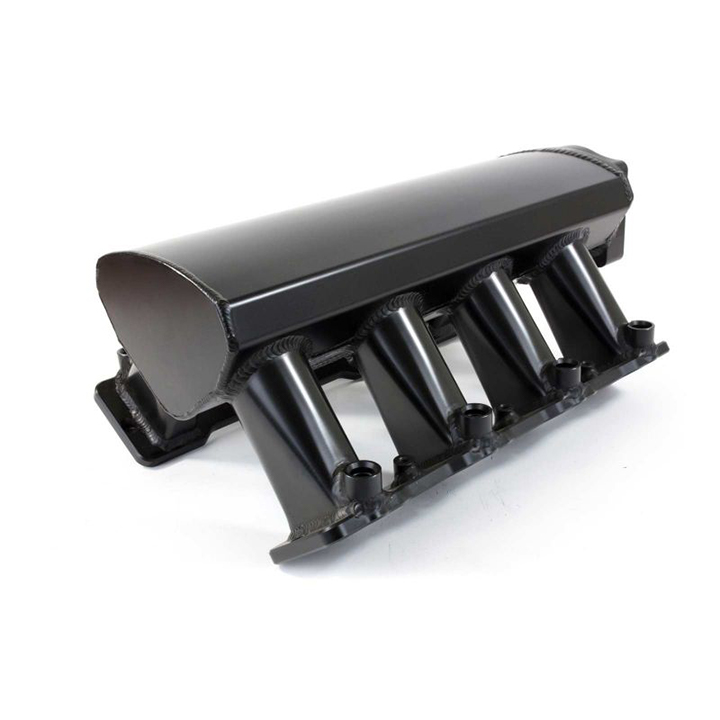

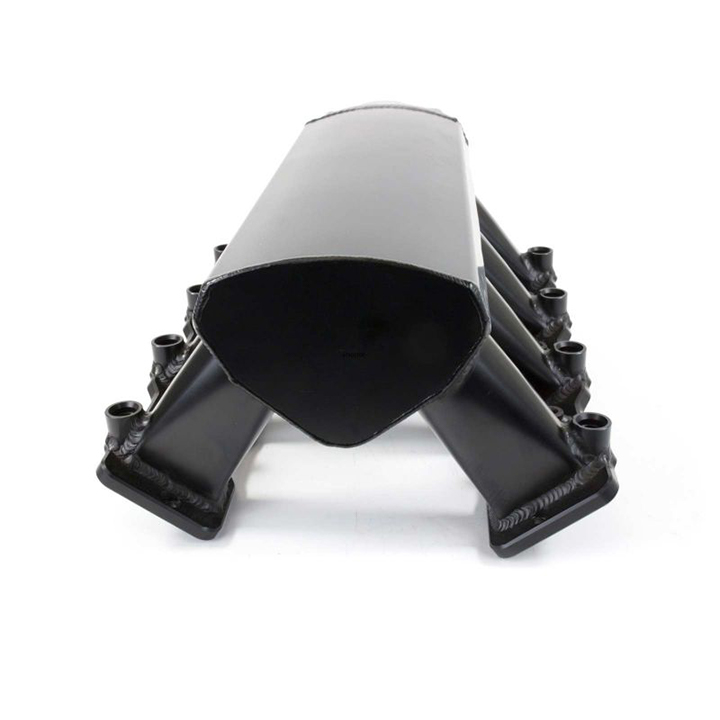

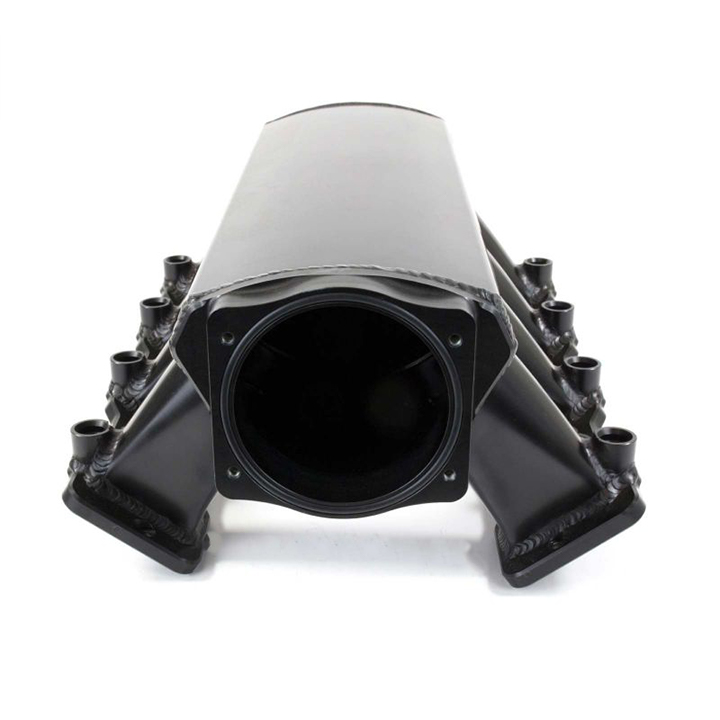

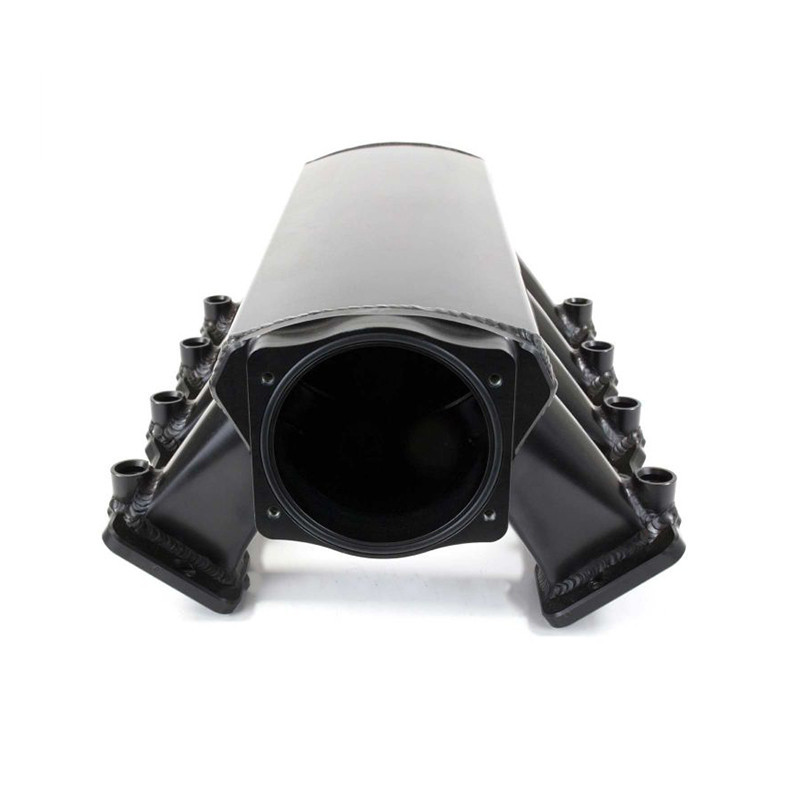

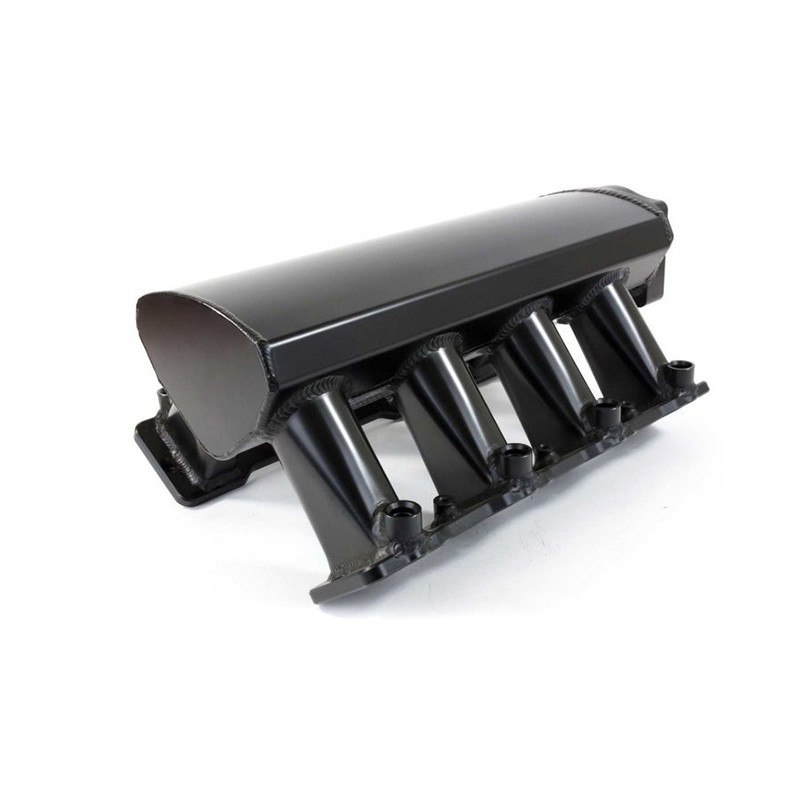

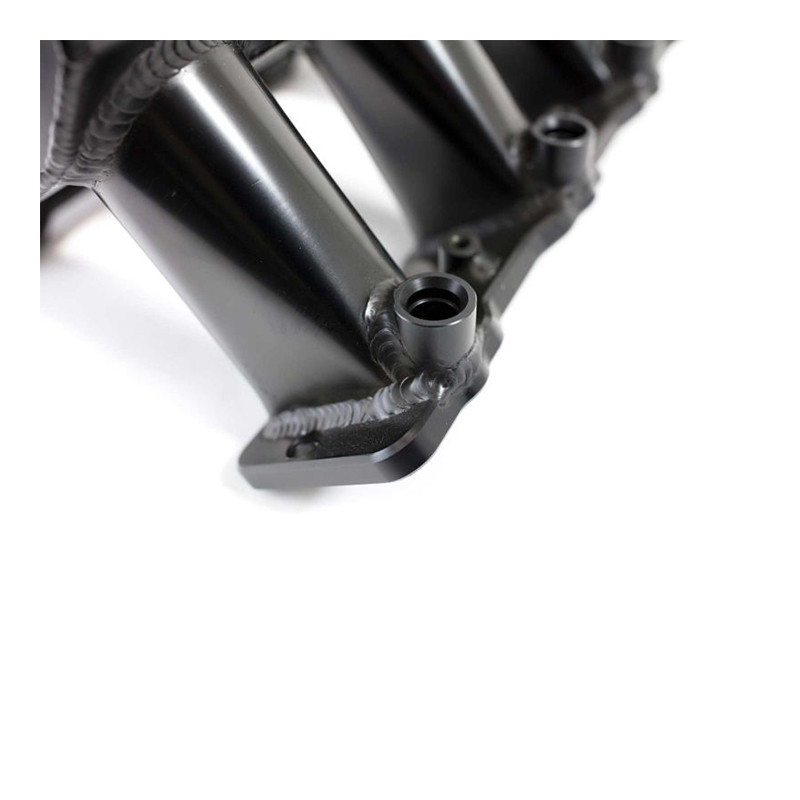

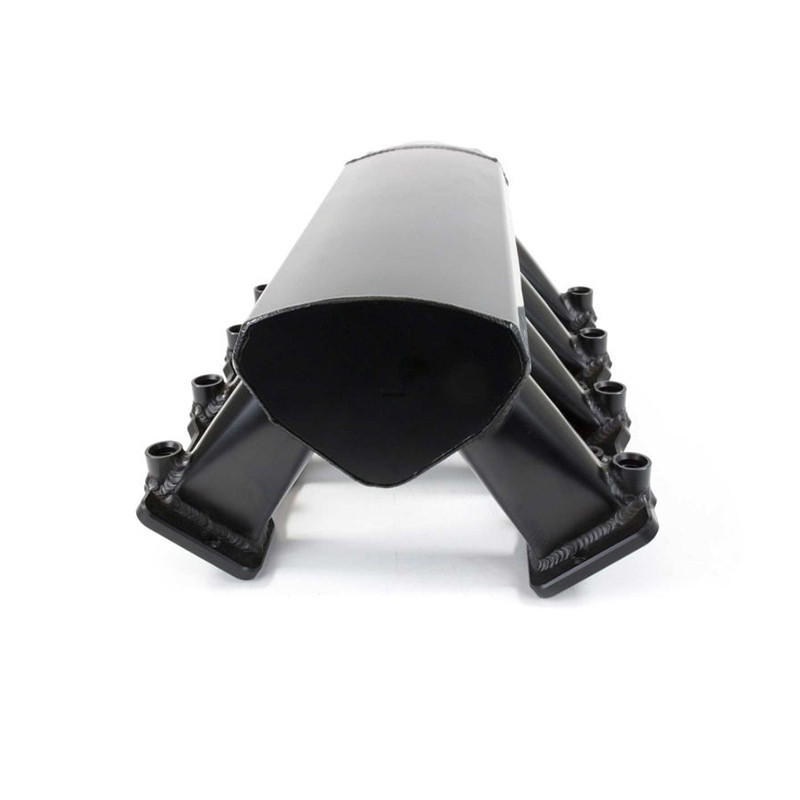

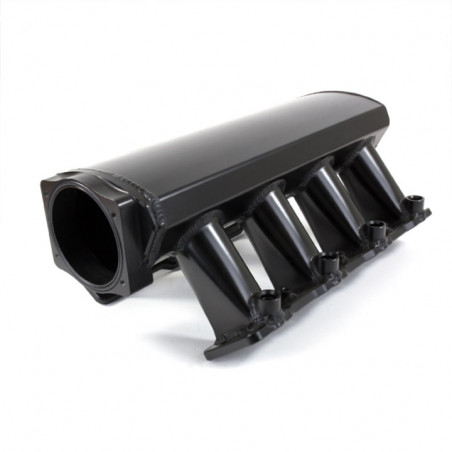

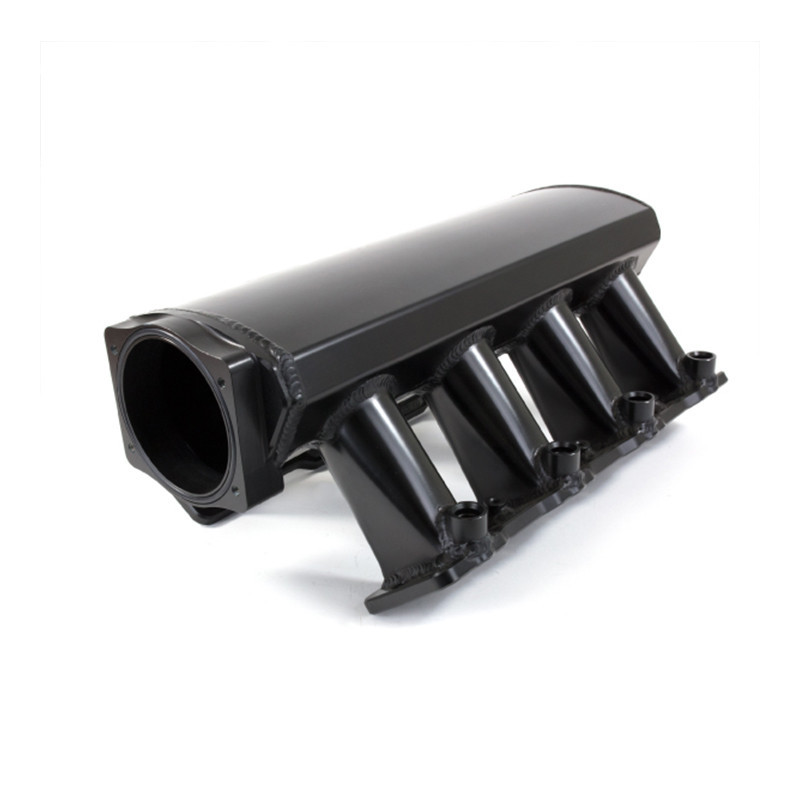

1964-1987 El Camino Velocity Series LS3/L92 Hi Ram Intake Manifold, Black Anodized, 102MM 81003TBK

Ground Up Part #: TSP-81003TBK

Manufacturer Part #: 81003TBK

No Vehicle Selected
information
No Vehicle Selected
information
$453.99 (Each)

MSRP: $522.09

(You Save: 13%)

closed box

Estimate Shipping

This product is eligible for free shipping with a promotional code.

You’re only $299 away from qualifying for free shipping with promotional code F299!

  • check mark Eligible For Discounting
  • check mark Eligible For Free Shipping
Part Details Vehicle Fitment Reviews

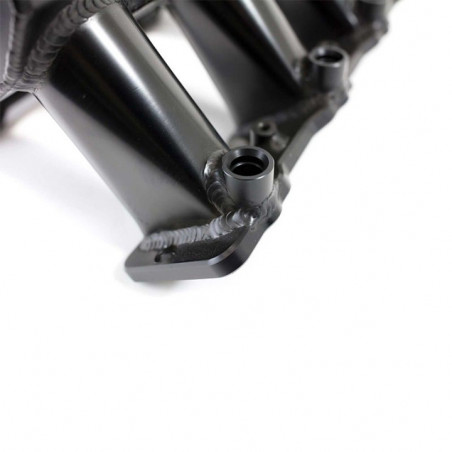

Top Street Performance designed their fabricated aluminum sheet metal intake manifold to improve the look and performance of your LS powered El Camino. It features a 102mm throttle body opening for maximum air flow. The runners are velocity stacked, allowing air to move more smoothly at high velocities. The manifold is constructed of 3.5mm thick T-6061 aluminum and is TIG welded to ensure consistent strength and performance. Individual port o-rings guarantee a good seal with the cylinder heads and throttle body. The first thing people notice when taking a closer at these intake manifold is the beautiful TIG (tungsten inert gas) welding throughout - all done by hand. This ensures solid construction that won't fail under stress. The head flanges are 7/16" thick, and the plenum is constructed of 3.5mm T-6061 aluminum, which means it can easily handle up to 25 lbs of boost - more than enough for most street performance applications. In addition to the premium build quality, these fabricated manifold include intelligent design features that set it apart from the rest. A 102mm throttle body opening and velocity-stacked intake runners guarantee maximum airflow for high-horsepower applications, and individual port o-rings ensure a tight seal to your cylinder heads.

Features and Specifications:

  • Injection Style: Multi-port
  • Fuel Rail Type: Custom TSP Design
  • Fuel Rails Included: No
  • Throttle Body Bore Size: 102mm
  • Throttle Body Bolt Pattern: Standard OE 4-Bolt Pattern
  • Throttle Body Flange Angle:
  • Throttle Body Included: No
  • Flange Material: T-6061 Billet Aluminum
  • Plenum Thickness: 3.5mm
  • Plenum Material: T-6061 Sheet Aluminum
  • Vacuum Ports: NPT 1/8 x 3 and NPT 1/4 x 1
  • Overall Height: 9"
  • Included: Port O-Rings and Hardware

Manufacturer Part Number : 81003TBK

Part Notes:

Fits LS-based engines with "rectangular" intake port shape only.

warning WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Brand
Brand Logo Top Street Performance
Additional Information
  • Ground Up Part #: TSP-81003TBK
  • Brand: Top Street Performance
  • Manufacturer Part #: 81003TBK
  • Sold As: Each
  • Shipping Details: This item ships UPS Ground.
Vehicle Fitment
Make Model Year Body Style
Chevrolet El Camino 1964 -
Chevrolet El Camino 1965 -
Chevrolet El Camino 1966 -
Chevrolet El Camino 1967 -
Chevrolet El Camino 1968 -
Chevrolet El Camino 1969 -
Chevrolet El Camino 1970 -
Chevrolet El Camino 1971 -
Chevrolet El Camino 1972 -
Chevrolet El Camino 1973 -
Chevrolet El Camino 1974 -
Chevrolet El Camino 1975 -
Chevrolet El Camino 1976 -
Chevrolet El Camino 1977 -
Chevrolet El Camino 1978 -
Chevrolet El Camino 1979 -
Chevrolet El Camino 1980 -
Chevrolet El Camino 1981 -
Chevrolet El Camino 1982 -
Chevrolet El Camino 1983 -
Chevrolet El Camino 1984 -
Chevrolet El Camino 1985 -
Chevrolet El Camino 1986 -
Chevrolet El Camino 1987 -
Installation Time
Installation Time: Info Unavailable
Installation Difficulty
Installation Difficulty: Info Unavailable
