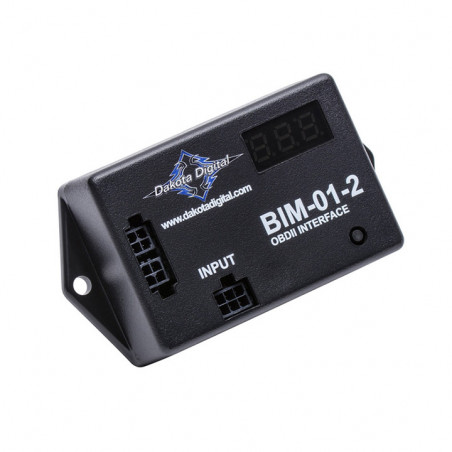

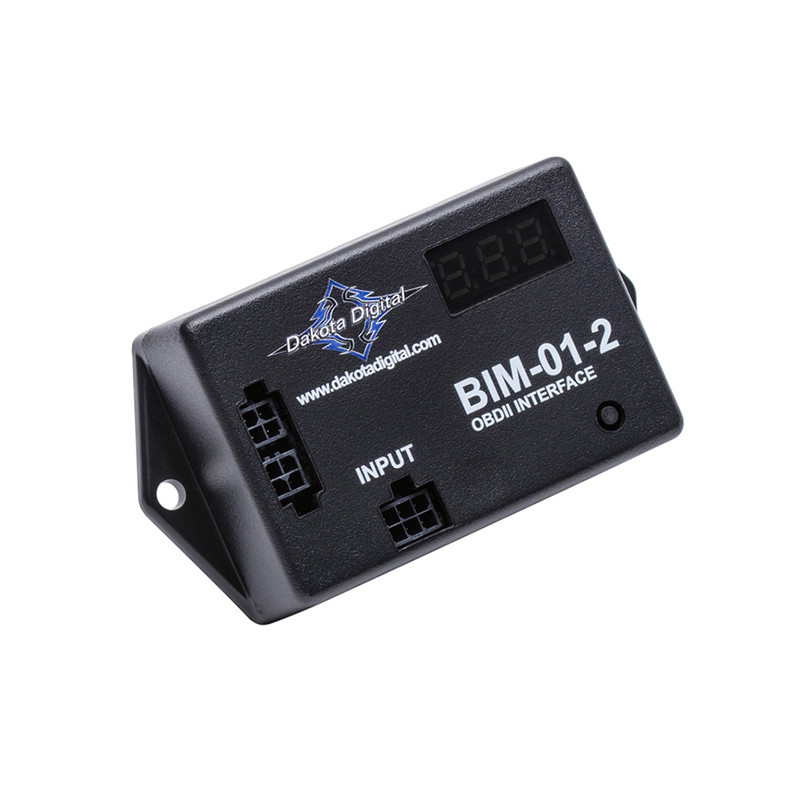

Dakota Digital OBDII Interface Module: BIM-01-2

Product May Vary From Above Listed Image

The BIM-01-2 OBD-II (J1850/CAN) Interface allows you to plug directly into the engine diagnostic port, extracting engine and transmission data from the vehicle's computer (ECM). The BIM-01-2 will collect and output the following information to Dakota Digital Instrument Systems*:

Always Available:

  • Speed
  • Tachometer
  • Engine Temp
  • Check Engine Indicator

Vehicle Specific:
  • Intake Air Temp
  • Transmission Temp
  • Ambient Air Temp
  • Gear Position
  • Oil Pressure
  • Boost

Please note: Due to the various factory and modified ECMs, additional data including (intake temp, transmission temp, ambient air temp, oil pressure and gear position) may be available, but will vary from application to application. Dakota Digital cannot guarantee the presence or accuracy of the coolant temp, intake temp, transmission temp, ambient air temp, oil pressure, boost or gear position displays since this is a function of the ECM and matching OEM functional sensors.

This product can provide a plus/minus 25% calibration to compensate for tire size or gear changes which have affected the speedometer output.

* The BIM-01-2 is designed to decode the information provided by the ECM through OBD-II and supply this information to the VFD3 rev G, VHX and HDX control box instruments only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of expansion modules.

Retail Price

$111.99

Your Price

$94.99

You Save: 15%

15.18%)
  • Ground Up Part # BIM-01-2
  • Manufacturer Part # BIM-01-2
  • Brand Dakota Digital
  • Sold As: Each
  • Eligible For Discounting with Coupon No
  • Eligible For Free Shipping with Coupon Yes
  • Shipping Details: This item ships UPS Ground.


The BIM-01-2 OBD-II (J1850/CAN) Interface allows you to plug directly into the engine diagnostic port, extracting engine and transmission data from the vehicle's computer (ECM). The BIM-01-2 will collect and output the following information to Dakota Digital Instrument Systems*:

Always Available:
  • Speed
  • Tachometer
  • Engine Temp
  • Check Engine Indicator

Vehicle Specific:
  • Intake Air Temp
  • Transmission Temp
  • Ambient Air Temp
  • Gear Position
  • Oil Pressure
  • Boost

Please note: Due to the various factory and modified ECMs, additional data including (intake temp, transmission temp, ambient air temp, oil pressure and gear position) may be available, but will vary from application to application. Dakota Digital cannot guarantee the presence or accuracy of the coolant temp, intake temp, transmission temp, ambient air temp, oil pressure, boost or gear position displays since this is a function of the ECM and matching OEM functional sensors.

This product can provide a plus/minus 25% calibration to compensate for tire size or gear changes which have affected the speedometer output.

* The BIM-01-2 is designed to decode the information provided by the ECM through OBD-II and supply this information to the VFD3 rev G, VHX and HDX control box instruments only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of expansion modules.



Instructions: Download Instructions
