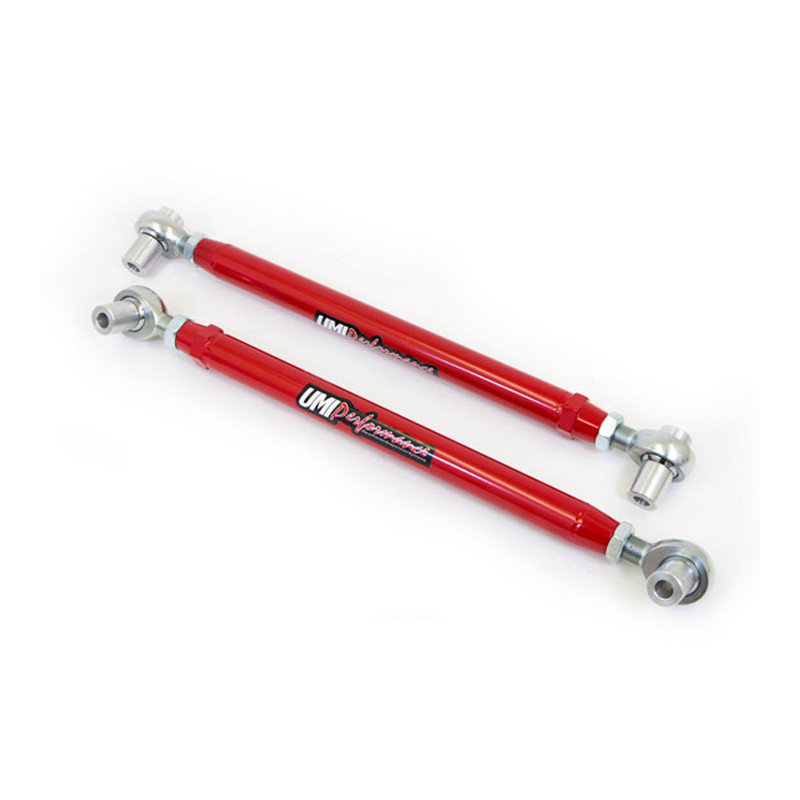

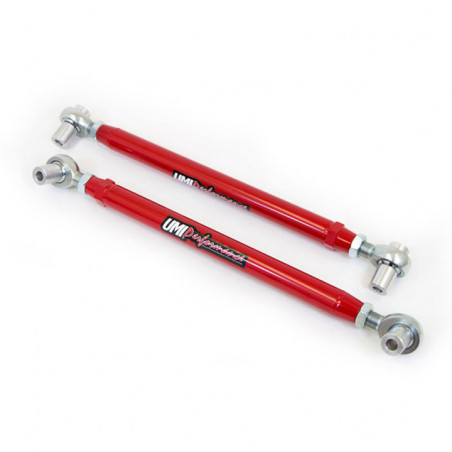

1964-1972 Chevelle UMI Tubular Chromoly Rear Lower Control Arms, Rod Ends, Offset Bushings, Red 4023OFCM-R

UMI 4023OFCM for 1964-1972 Chevelle features off-set aluminum bushings and smaller diameter tubing that place the control arm inward for additional clearance when running large tires. This type of set-up is also needed when running a mini-tub to achieve the most clearance as possible. The supplied aluminum step bushings place the control arm inward 3/8 of an inch further then our standard control arm version. These double adjustable control arms are designed for race applications and light duty street use. The spherical rod ends offer a solid foundation and work excellent as a solid bushing control arm while eliminating rear suspension bind. The double adjustment allows easy on car changes for wider tire clearance and to center aftermarket rear ends. These race application control arms are manufactured from 4130 chromoly steel and TIG welded for the utmost in strength. The premium Teflon lined rod ends attach to the control arms using in-house machined 4130 chromoly tube adaptors. UMI 4023OFCM allows adjustments of 1 inch longer or 1 inch shorter and are supplied pre-set to factory length. These race style control arms are designed for aftermarket sway bars that do not attach to the control arms; control arms are supplied with no sway bar holes.
Features:

• TIG welded 1.250 in. x 0.095 in. 4130 Chromoly tubing
• Stronger & lighter than factory control arms
• In-house machined 4130 Chromoly tube adaptors for increased thread durability
• 3/4 inch Teflon lined, high load capacity race rod ends, Teflon lined & self lubricating
• CNC machined light weight aluminum off set bushings
• Brilliant durable red or black powder coat
• Reuses factory hardware
• Designed and manufactured with pride in Philipsburg, PA - USA

Manufacturer Part Number : 4023OFCM-R
