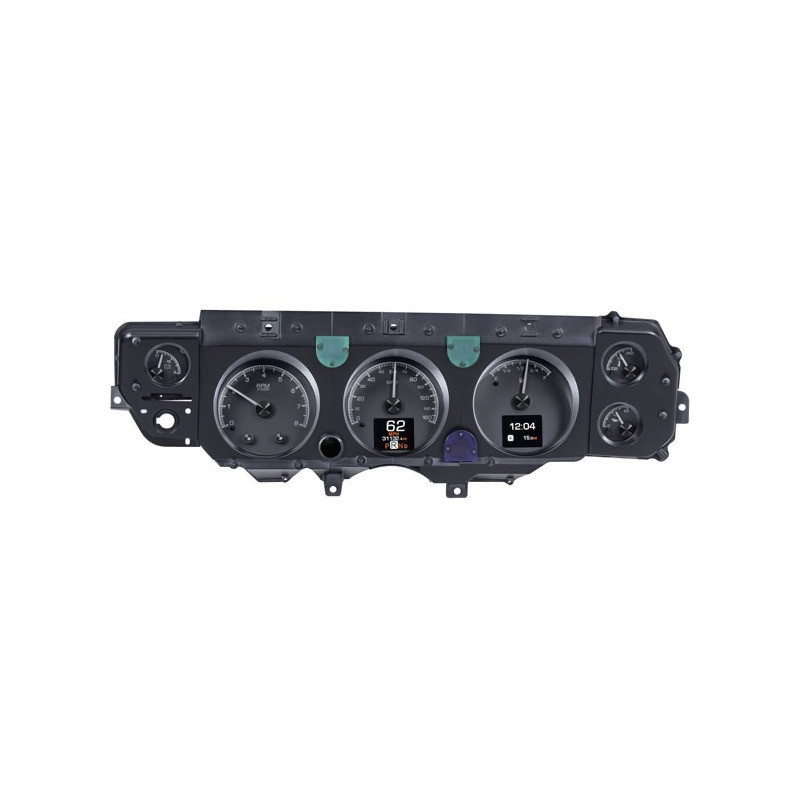

1970-1972 Chevelle Dakota Digital HDX Instrument System - Black Alloy Gauge Face

Product May Vary From Above Listed Image

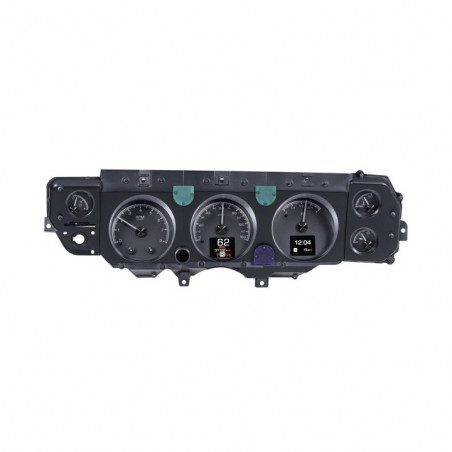

The King of muscle cars still reigns supreme. Upgrade your 1970-72 Chevelle (SS-style dash) with a bolt-in instrument system boasting six analog gauge sweeps, coupled with a pair of TFT message center displays. Original locations for turn signal, high beam, and brake indicators are updated with LEDs. Screws directly into an original or aftermarket gauge carrier, available separately.

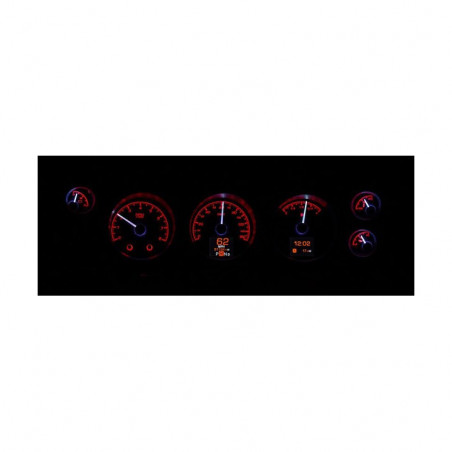

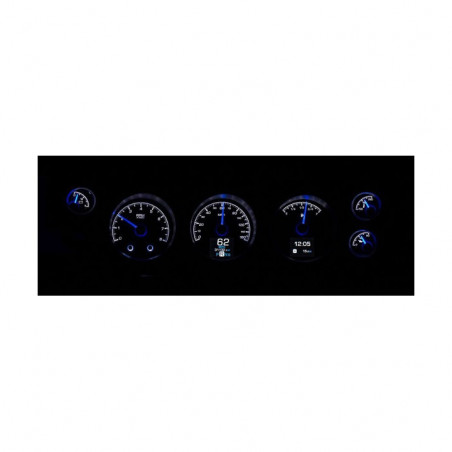

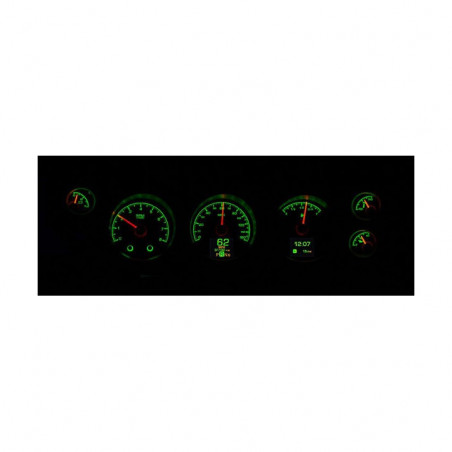

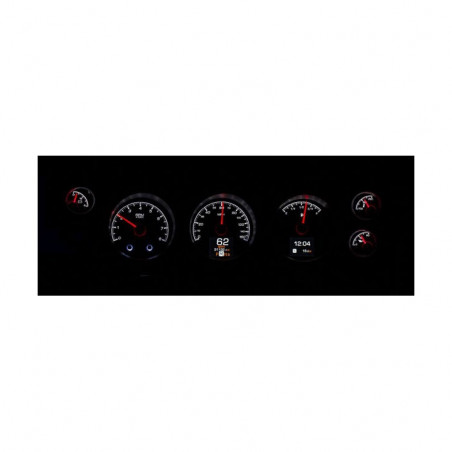

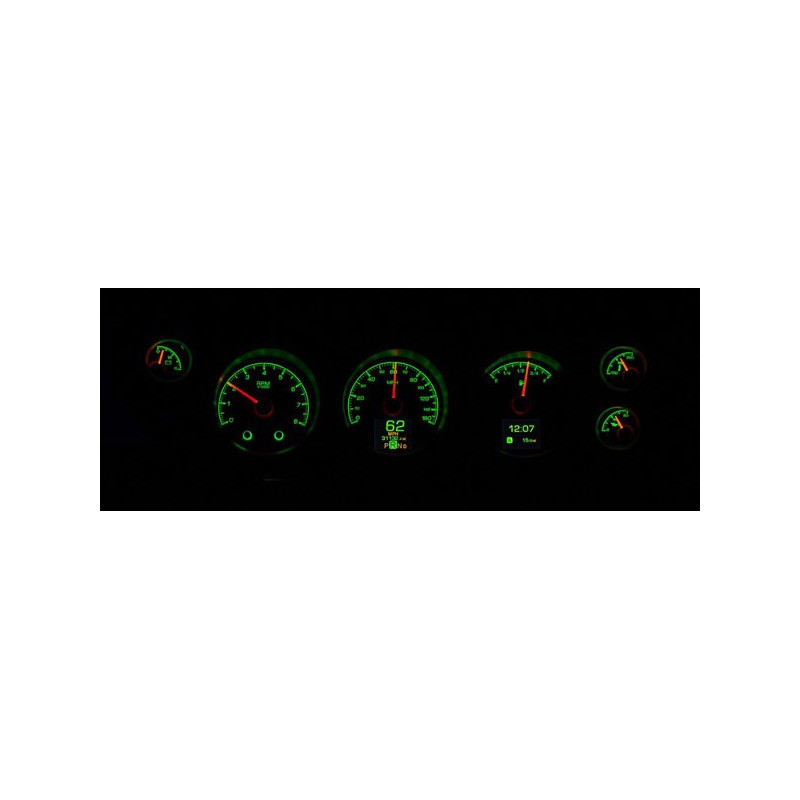

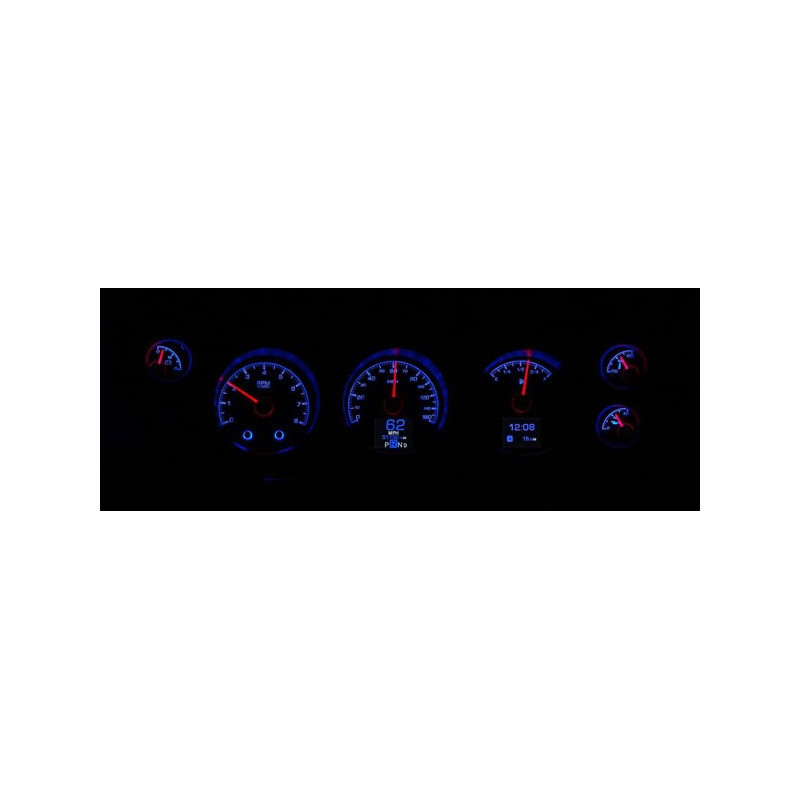

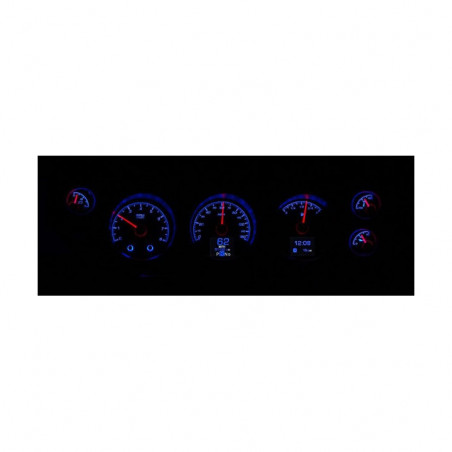

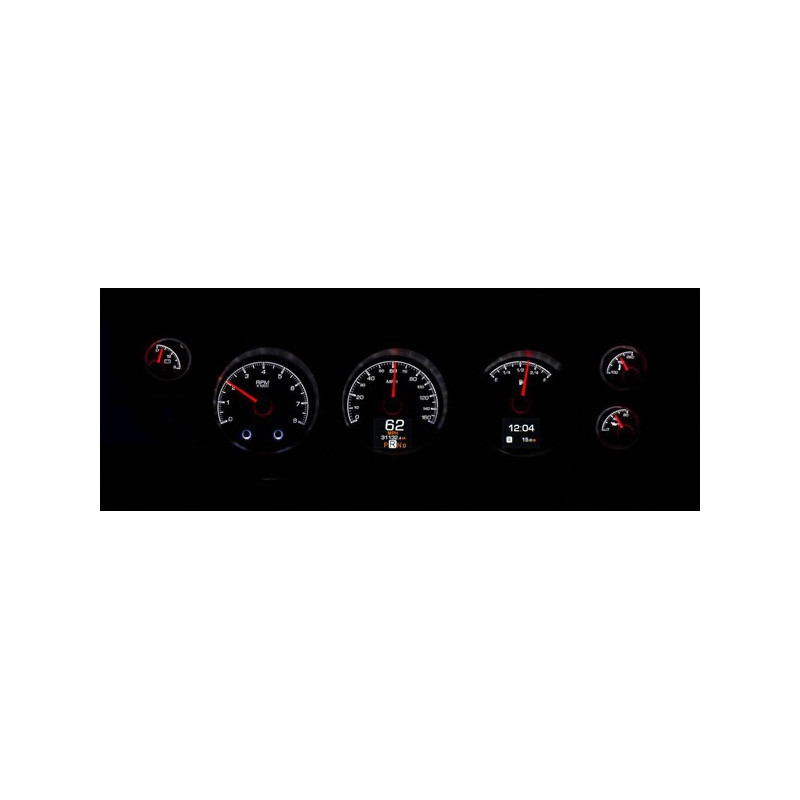

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminals.

Features:

Included Sensors:

  • Water Temperature: 1/8 in. NPT, ground isolated sensor with a 10ft harness
  • Oil Pressure: 1/8 in. NPT solid state sensor with a 10ft harness
  • Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10ft harness
  • Bushings: Each kit comes with 1/8 inch to 1/4 inch, 3/8 inch and 1/2 inch NPT bushings along with bushings for 12mm and 16mm x 1.5 threads

Calibration & Use:
  • Pushbutton: All HDX series instrument systems include LED lit onboard capacitive touch pushbuttons through the gauge face. These pushbuttons provide quick and consistent access to all functions, either in driving mode or while in the setup menu. Button press feedback is available through the TFT message center, or through the included buzzer. Additionally, remote mounted switches can be wired into the HDX system if this proves more accessible based upon seating position. The HDX series can also be completely configured through the Bluetooth app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the HDX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or secondary display
  • Calibration: All calibration settings are handled through onboard capacitive touch switches or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short drive of the vehicle.

Retail Price

$1449.99

Your Price

$1,230.99

You Save: 15%

15.10%)
  • Ground Up Part # HDX-70C-CVL-K
  • Manufacturer Part # HDX-70C-CVL-K
  • Brand Dakota Digital
  • Sold As: Each
  • Eligible For Discounting with Coupon No
  • Eligible For Free Shipping with Coupon Yes
  • Shipping Details: This item ships UPS ground.


The King of muscle cars still reigns supreme. Upgrade your 1970-72 Chevelle (SS-style dash) with a bolt-in instrument system boasting six analog gauge sweeps, coupled with a pair of TFT message center displays. Original locations for turn signal, high beam, and brake indicators are updated with LEDs. Screws directly into an original or aftermarket gauge carrier, available separately.

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminals.

Features:

Included Sensors:
  • Water Temperature: 1/8 in. NPT, ground isolated sensor with a 10ft harness
  • Oil Pressure: 1/8 in. NPT solid state sensor with a 10ft harness
  • Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10ft harness
  • Bushings: Each kit comes with 1/8 inch to 1/4 inch, 3/8 inch and 1/2 inch NPT bushings along with bushings for 12mm and 16mm x 1.5 threads

Calibration & Use:
  • Pushbutton: All HDX series instrument systems include LED lit onboard capacitive touch pushbuttons through the gauge face. These pushbuttons provide quick and consistent access to all functions, either in driving mode or while in the setup menu. Button press feedback is available through the TFT message center, or through the included buzzer. Additionally, remote mounted switches can be wired into the HDX system if this proves more accessible based upon seating position. The HDX series can also be completely configured through the Bluetooth app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the HDX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or secondary display
  • Calibration: All calibration settings are handled through onboard capacitive touch switches or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short drive of the vehicle.


Instructions: Download Instructions

Part Notes
Bezel is shown for illustration purposes and is not included. HDX Systems require use of an OEM or reproduction style bezel, sold separately.

Parts Application:

Average Customer Review: Not yet rated

Click here to write an review and share your thoughts with others.

Part Notes: Bezel is shown for illustration purposes and is not included. HDX Systems require use of an OEM or reproduction style bezel, sold separately.
Instructions: Download Instructions
