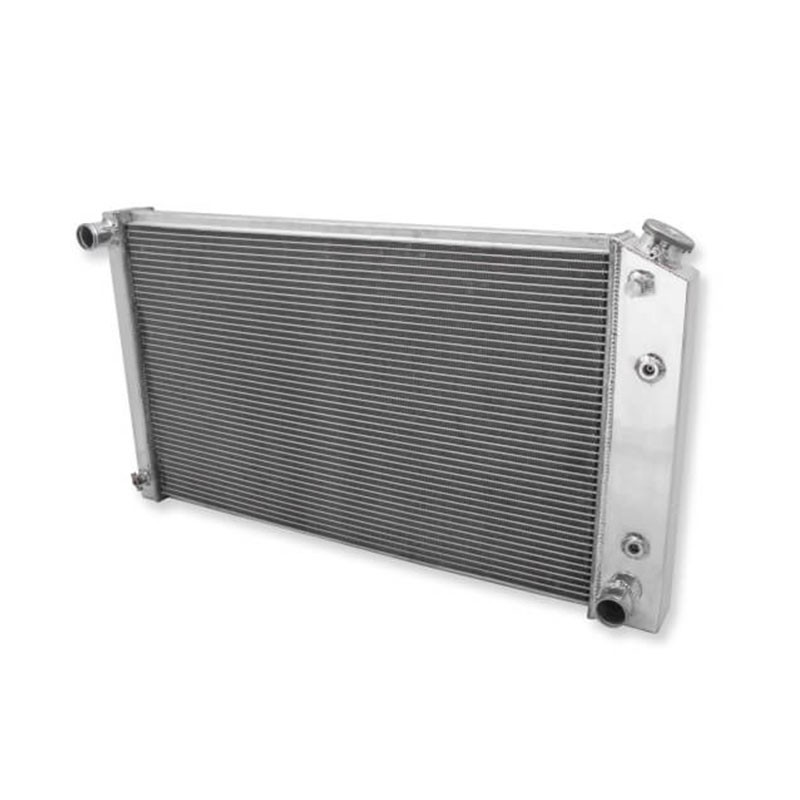

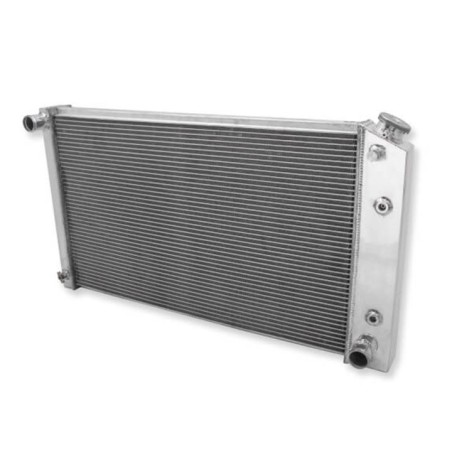

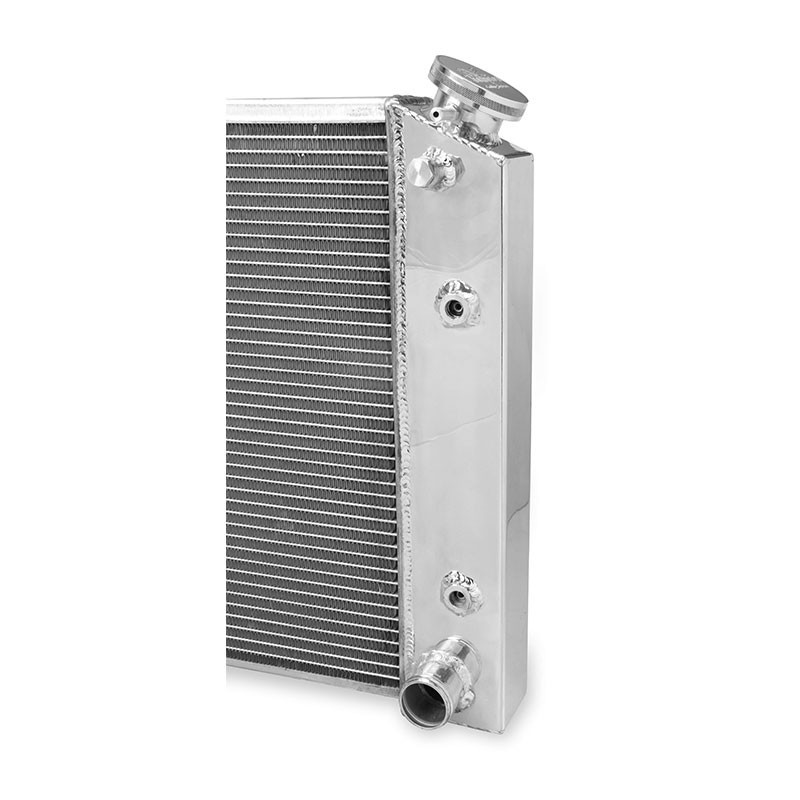

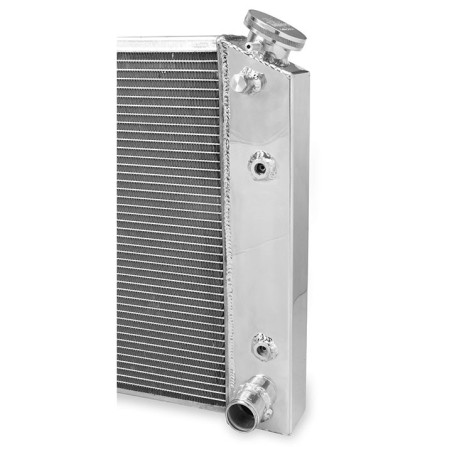

1968-1973 Chevelle V8 Frostbite Aluminum Radiator, 4 Row, for 28-1-4 In. Wide Core: FB134

Product May Vary From Above Listed Image

High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments.

Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products.

When it comes to keeping your ride cool, Make it Frostbite!

Features:

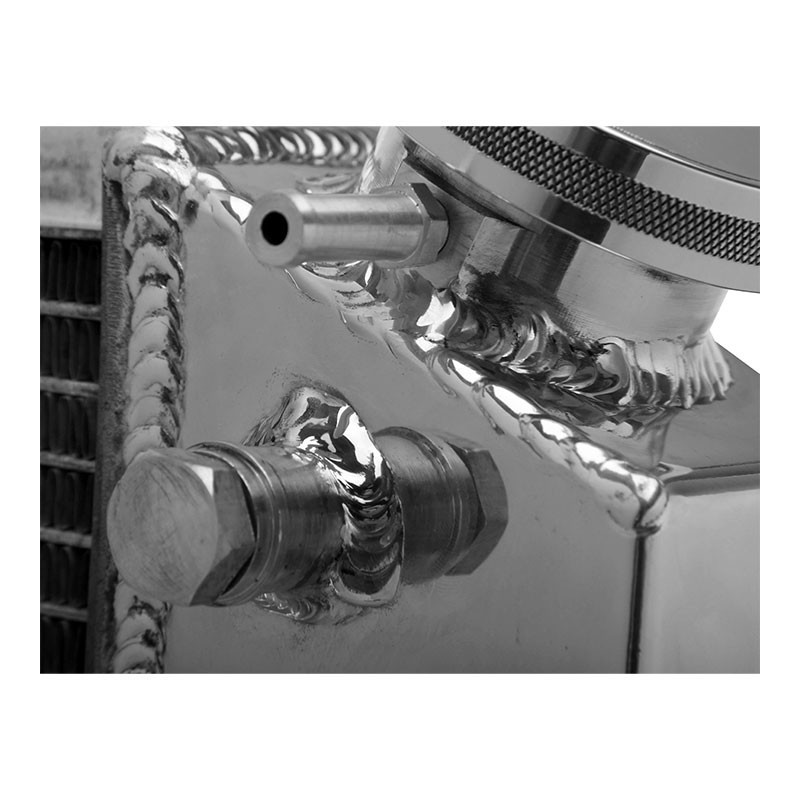

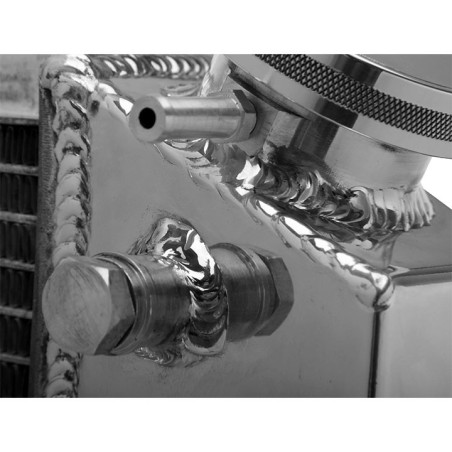

  • 100% TIG welded (brazed) seams
  • Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)

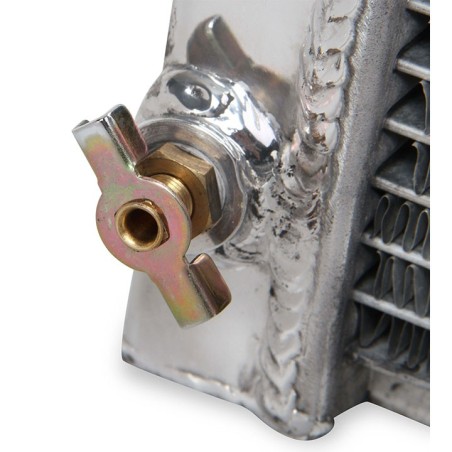

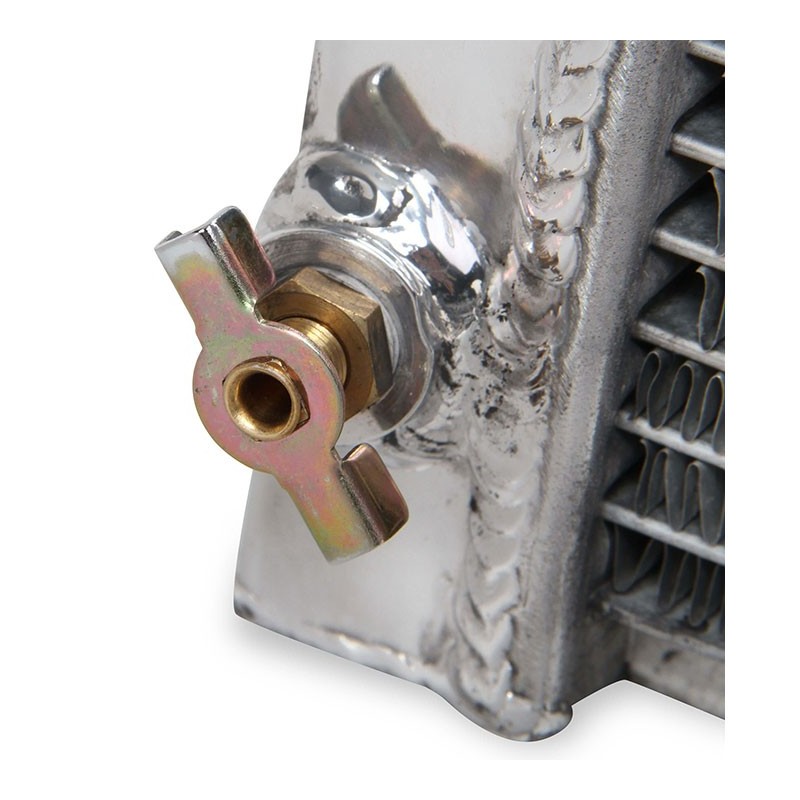

  • Billet Aluminum Filler Neck and OEM style Brass Petcock
  • More cooling fins per inch for more efficient cooling
  • Custom Frostbite High Performance 16lb. radiator cap
  • Polished top and tanks for custom show appearance
  • 4-Row Radiators supporting applications with 550-1000 horsepower
  • Manufacturer's 1-year Limited Warranty


Specifications:
  • Cooling Row Diameter: 11/16 inch
  • Core Dimension: 17x28-1/4 inch
  • Core Thickness: 2.76 inch
  • Flow Style: Cross Flow
  • Hose Location Inlet: Driver
  • Hose Location Outlet: Passenger
  • Inlet Size: 1-1/2 inch
  • Mounting Type: Saddle Mount
  • Outlet Size: 1-1/2 inch
  • Overall Dimension: 18-1/2x33 inch
  • Rows: 4
  • Transcooler Provision : 1/2-20 Straight Thread G 1/4

Retail Price

$553.00

Your Price

$496.99

You Save: 10%

10.13%)
  • Ground Up Part # FROST-FB134
  • Manufacturer Part # FB134
  • Brand Frostbite Performance Cooling
  • Sold As: Each
  • Eligible For Discounting w/ Promo Code No
  • Eligible For Free Shipping w/ Promo Code Yes
  • Shipping Details: This item ships UPS Ground.


High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments.

Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products.

When it comes to keeping your ride cool, Make it Frostbite!

Features:
  • 100% TIG welded (brazed) seams
  • Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
  • Billet Aluminum Filler Neck and OEM style Brass Petcock
  • More cooling fins per inch for more efficient cooling
  • Custom Frostbite High Performance 16lb. radiator cap
  • Polished top and tanks for custom show appearance
  • 4-Row Radiators supporting applications with 550-1000 horsepower
  • Manufacturer's 1-year Limited Warranty


Specifications:
  • Cooling Row Diameter: 11/16 inch
  • Core Dimension: 17x28-1/4 inch
  • Core Thickness: 2.76 inch
  • Flow Style: Cross Flow
  • Hose Location Inlet: Driver
  • Hose Location Outlet: Passenger
  • Inlet Size: 1-1/2 inch
  • Mounting Type: Saddle Mount
  • Outlet Size: 1-1/2 inch
  • Overall Dimension: 18-1/2x33 inch
  • Rows: 4
  • Transcooler Provision : 1/2-20 Straight Thread G 1/4
High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments.

Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products.

When it comes to keeping your ride cool, Make it Frostbite!

Features:
  • 100% TIG welded (brazed) seams
  • Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
  • Billet Aluminum Filler Neck and OEM style Brass Petcock
  • More cooling fins per inch for more efficient cooling
  • Custom Frostbite High Performance 16lb. radiator cap
  • Polished top and tanks for custom show appearance
  • 3-Row Radiators supporting applications with 450-750 horsepower
  • Manufacturer's 1-year Limited Warranty


Specifications:
  • # of Passes: Single
  • Cooling Row Diameter: 11/16 inch
  • Core Dimension: 17x28-1/4 inch
  • Core Thickness: 2.20 inch
  • Flow Style: Cross Flow
  • Hose Location Inlet: Driver
  • Hose Location Outlet: Passenger
  • Inlet Size: 1-1/2 inch
  • Mounting Type: Saddle Mount
  • Outlet Size: 1-1/2 inch
  • Overall Dimension: 18-1/2x33 inch
  • Rows: 3
  • Transcooler Provision: 1/2-20 Straight Thread G 1/4
High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments.

Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products.

When it comes to keeping your ride cool, Make it Frostbite!

Features:
  • 100% TIG welded (brazed) seams
  • Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
  • Billet Aluminum Filler Neck and OEM style Brass Petcock
  • More cooling fins per inch for more efficient cooling
  • Custom Frostbite High Performance 16lb. radiator cap
  • Polished top and tanks for custom show appearance
  • 2-Row Radiators supporting applications with 300-500 horsepower
  • Manufacturer's 1-year Limited Warranty


Specifications:
  • # of Passes: Single
  • Cooling Row Diameter: 3/4 inch
  • Core Dimension: 17 x 28-1/4 inch
  • Core Thickness: 1.57 inch
  • Flow Style: Cross Flow
  • Hose Location Inlet: Driver
  • Hose Location Outlet: Passenger
  • Inlet Size: 1-1/2 inch
  • Mounting Type: Saddle Mount
  • Outlet Size: 1-1/2 inch
  • Overall Dimension: 19-1/8 x 29-1/4 inch
  • Rows: 2
  • Transcooler Provision: 1/2-20 Straight Thread G 1/4
High-Horsepower street cars and truck can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weight less than older OEM style brass units. Choose from a variety of popular application specific fitments.

Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products.

When it comes to keeping your ride cool, Make it Frostbite!

Features:
  • 100% TIG welded (brazed) seams
  • Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
  • Dual Pass, Cross Flow design to maximize cooling efficiency
  • Billet Aluminum Filler Neck and OEM style Brass Petcock
  • More cooling fins per inch for more efficient cooling
  • Custom Frostbite High Performance 16lb. radiator cap
  • Polished top and tanks for custom show appearance
  • 3-Row Radiators supporting applications with 600+ horsepower
  • Manufacturer's 1-year Limited Warranty


Specifications:
  • # of Passes: Dual
  • Cooling Row Diameter: 11/16 inch
  • Core Dimension: 17 x 28-1/4
  • Core Thickness: 2.20
  • Flow Style: Dual Pass
  • Hose Location Inlet: Passenger
  • Hose Location Outlet: Passenger
  • Inlet / Outlet Size: AN Bungs
  • Inlet Size: AN Bungs
  • Mounting Type: Saddle Mount
  • Outlet Size: AN Bungs
  • Overall Dimension: 18-1/2 x 33 inch
  • Rows: 3
  • Steam Port Fitting Size: 1/4 inch NPT
  • Transcooler Provision: No


Instructions: Download Instructions

Part Notes
Fits 1968-1973 Chevrolet Chevelle, 1968-1977 Chevrolet El Camino, 1970-1977 Chevrolet Monte Carlo, 1973-1977 Chevrolet Malibu

Parts Application:



Part Notes: Fits 1968-1973 Chevrolet Chevelle, 1968-1977 Chevrolet El Camino, 1970-1977 Chevrolet Monte Carlo, 1973-1977 Chevrolet Malibu
Instructions: Download Instructions
