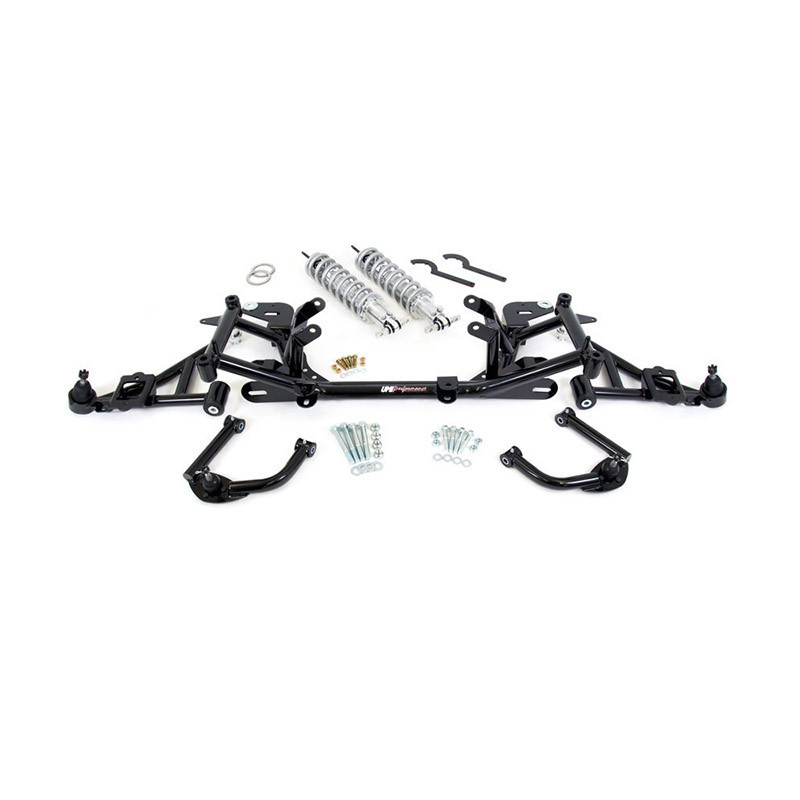

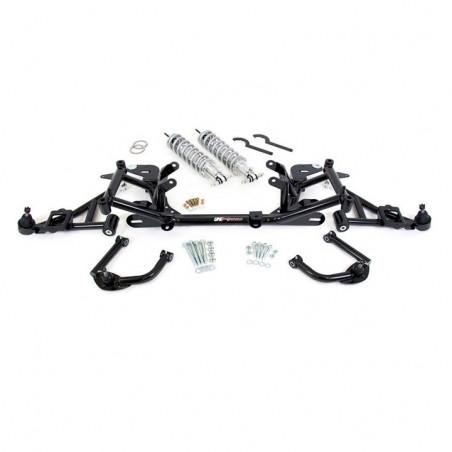

1993-1997 Camaro UMI LT1 Front End Kit, Street Stage 4, Black: FBT004-B

Product May Vary From Above Listed Image

UMI's Stage 4 kit for 1993-1997 Camaro provides a solid foundation for your street car used for corner carving duty. It features the best of both worlds with performance, weight reduction, strength and comfort. The dual tube k-member is known as the strongest in its class and can withstand wheel stand landings and street abuse while still shaving weight as well as protecting the oil pan. The lower arms feature poly bushings on the straight strut portion to absorb road noise while the non-adjustable uppers guide the suspension on greaseable poly bushings. UMI's k-member and Control Arms are built from strong USA DOM tubing, precision bent, CNC notched and welded in a jig to form a solid base. Upper and lower Control Arms are assembled with high quality polyurethane bushings and premium ball joints. Included in the kit are Viking front coilovers with double adjustable shocks that allow ride height, compression and rebound adjustment. The ride height adjustment is accomplished with the included spanner wrenches and thrust washers. The compression and rebound adjusters are clicked by hand (no tools!) and feature a total of 361 possible valving combinations. The included springs are 550lb/in and work excellent on daily driven and corner carving applications.

Features:

  • Heavy duty k-member with dual tube construction
  • Greaseable polyurethane bushings with zinc plated steel sleeves
  • Premium upper and lower ball joints installed
  • Double adjustable Viking shocks feature 361 possible valving combinations
  • Height adjustment from 0 inch to 2 inch lowering
  • 550 lb/in. USA made front springs
  • 33 lbs. of front end weight savings
  • Chromoly a-arms save an additional 1-1/2 lbs.
  • Works with factory steering rack
  • Direct bolt-in replacement, no welding
  • Manufactured in Philipsburg, PA - USA


UMI Stage 4 Includes:
  • UMI-2325 - Tubular dual tube k-member
  • UMI-2305 - Tubular street lower a-arms
  • UMI-2311 - Tubular street upper a-arms, polyurethane bushings
  • UMI-2303 - Grade 10.9 hardware with Ny-lock nuts

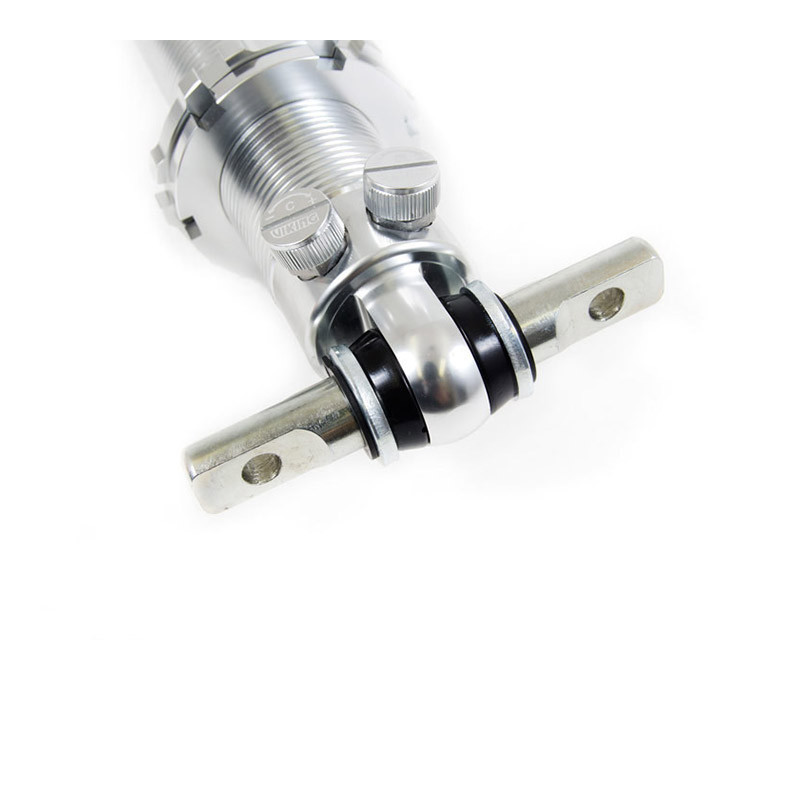

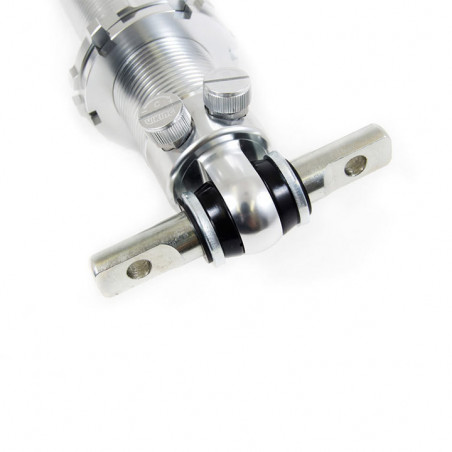

  • UMI-A206-300 - Viking front coilover kit, double adjustable
  • UMI-7995-102 - Thrust bearing and spanner wrench

Retail Price

$2284.95

Your Price

$1,939.95

You Save: 15%

15.10%)
  • Ground Up Part # UMI-FBT004-B
  • Manufacturer Part # FBT004-B
  • Brand UMI Performance
  • Sold As: Kit
  • Eligible For Discounting with Coupon No
  • Eligible For Free Shipping with Coupon No
  • Shipping Details: This item ships in multiple oversize boxes.


UMI's Stage 4 kit for 1993-1997 Camaro provides a solid foundation for your street car used for corner carving duty. It features the best of both worlds with performance, weight reduction, strength and comfort. The dual tube k-member is known as the strongest in its class and can withstand wheel stand landings and street abuse while still shaving weight as well as protecting the oil pan. The lower arms feature poly bushings on the straight strut portion to absorb road noise while the non-adjustable uppers guide the suspension on greaseable poly bushings. UMI's k-member and Control Arms are built from strong USA DOM tubing, precision bent, CNC notched and welded in a jig to form a solid base. Upper and lower Control Arms are assembled with high quality polyurethane bushings and premium ball joints. Included in the kit are Viking front coilovers with double adjustable shocks that allow ride height, compression and rebound adjustment. The ride height adjustment is accomplished with the included spanner wrenches and thrust washers. The compression and rebound adjusters are clicked by hand (no tools!) and feature a total of 361 possible valving combinations. The included springs are 550lb/in and work excellent on daily driven and corner carving applications.

Features:
  • Heavy duty k-member with dual tube construction
  • Greaseable polyurethane bushings with zinc plated steel sleeves
  • Premium upper and lower ball joints installed
  • Double adjustable Viking shocks feature 361 possible valving combinations
  • Height adjustment from 0 inch to 2 inch lowering
  • 550 lb/in. USA made front springs
  • 33 lbs. of front end weight savings
  • Chromoly a-arms save an additional 1-1/2 lbs.
  • Works with factory steering rack
  • Direct bolt-in replacement, no welding
  • Manufactured in Philipsburg, PA - USA


UMI Stage 4 Includes:
  • UMI-2325 - Tubular dual tube k-member
  • UMI-2305 - Tubular street lower a-arms
  • UMI-2311 - Tubular street upper a-arms, polyurethane bushings
  • UMI-2303 - Grade 10.9 hardware with Ny-lock nuts
  • UMI-A206-300 - Viking front coilover kit, double adjustable
  • UMI-7995-102 - Thrust bearing and spanner wrench

Part Notes

Due to increased demand and supplier delays, this item may take longer than normal to arrive during this time. Please click HERE for more information.





Parts Application:

Average Customer Review: Not yet rated

Click here to write an review and share your thoughts with others.

Part Notes:

Due to increased demand and supplier delays, this item may take longer than normal to arrive during this time. Please click HERE for more information.




Warranty: UMI Performance warrants all UMI Performance products for a period of two (2) years from the original date of purchase. This warranty is valid against defects in materials and workmanship for the two (2) year warranty period.
