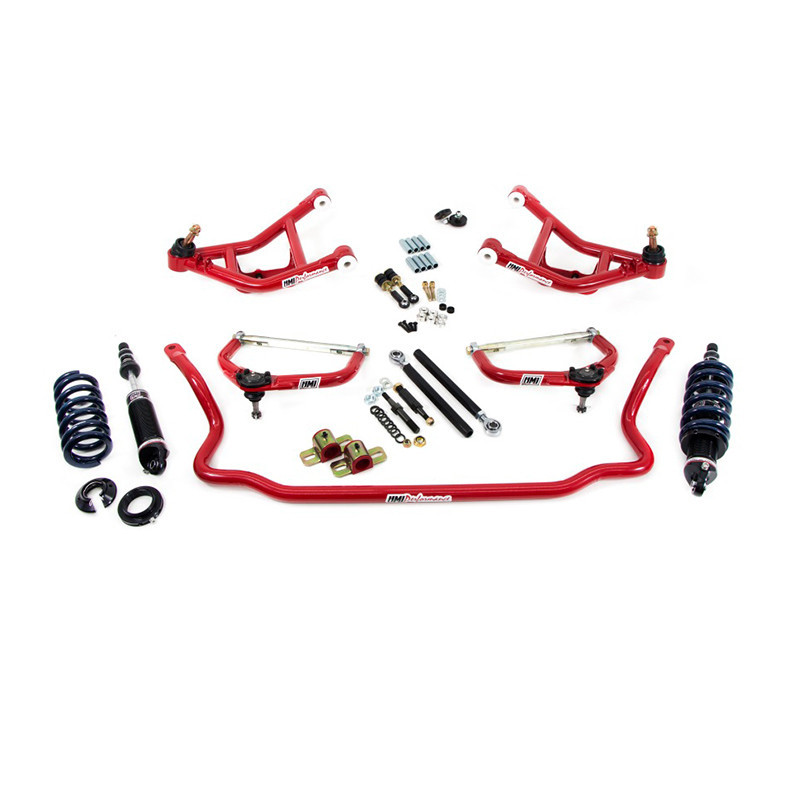

1970-1981 Camaro UMI Corner Max Kit, Race & Street Handling - Red: 266501-R

Product May Vary From Above Listed Image

UMI's Corner Max front end kits for 1970-1981 Camaro are a comprehensive system with our best corner carving parts under one easy to find part number. The Corner Max system combines geometry corrected a-arms with tall ball joints, higher rate springs, UMI rebound adjustable monotube shocks, heavy duty sway bar and a bump steer kit. The foundation of the kit includes our coilover-only lower a-arms featuring caster improvement, tall ball joints, and the ability to remove the spring and shock without taking the spindle apart. The upper a-arm features rod ends for smooth operation and the ability to adjust without shims. The 1-5/16th inch sway bar upgrade complete with UMI's fabricated end links reduces body roll and helps speed transitions. Racing coilover springs are paired with UMI's rebound adjustable coilover monotube shocks. Fine tuning is accomplished with a UMI bump steer kit. The Corner Max kit is built to make the stock GM clip work as well as it possibly can with a true bolt-on kit. All UMI Performance parts are fabricated and raced with pride out of Philipsburg, PA - USA. Race proven on many 2nd generation F-Bodies across the country.

Features:

  • Exceptional handling at 1 to 2-1/2 inch lowering.
  • Uses factory GM spindle and lowering spindles that equal factory height.
  • Up to 10 degrees static caster without moving the spindle pin.
  • Up to 1.2 degrees per inch camber gain.
  • 3/4 inch tall lower and standard upper ball joints.
  • Easily change shocks and springs at the track with UMI's unique quick change system.
  • 850 lb/in race proven spring rates for exceptional handling.
  • UMI rebound adjustable monotube shock with road race valving, 40 clicks of adjustment.
  • 1-5/16 inch solid sway bar with swivel end links to balance kit properly.
  • Bump steer kit for fine tuning.
  • Thrust bearings and adjusting wrench included for easy height changes.
  • Raced and tested on UMI equipped 2nd generation F-bodies across the country.
  • All UMI Suspension components are designed and manufactured in the USA.

Retail Price

$3061.99

Your Price

$2,599.99

You Save: 15%

15.09%)
  • Ground Up Part # UMI-266501-R
  • Manufacturer Part # 266501-R
  • Brand UMI Performance
  • Sold As: Kit
  • Eligible For Discounting with Coupon No
  • Eligible For Free Shipping with Coupon No
  • Shipping Details: This item ships in multiple oversize boxes.


UMI's Corner Max front end kits for 1970-1981 Camaro are a comprehensive system with our best corner carving parts under one easy to find part number. The Corner Max system combines geometry corrected a-arms with tall ball joints, higher rate springs, UMI rebound adjustable monotube shocks, heavy duty sway bar and a bump steer kit. The foundation of the kit includes our coilover-only lower a-arms featuring caster improvement, tall ball joints, and the ability to remove the spring and shock without taking the spindle apart. The upper a-arm features rod ends for smooth operation and the ability to adjust without shims. The 1-5/16th inch sway bar upgrade complete with UMI's fabricated end links reduces body roll and helps speed transitions. Racing coilover springs are paired with UMI's rebound adjustable coilover monotube shocks. Fine tuning is accomplished with a UMI bump steer kit. The Corner Max kit is built to make the stock GM clip work as well as it possibly can with a true bolt-on kit. All UMI Performance parts are fabricated and raced with pride out of Philipsburg, PA - USA. Race proven on many 2nd generation F-Bodies across the country.

Features:
  • Exceptional handling at 1 to 2-1/2 inch lowering.
  • Uses factory GM spindle and lowering spindles that equal factory height.
  • Up to 10 degrees static caster without moving the spindle pin.
  • Up to 1.2 degrees per inch camber gain.
  • 3/4 inch tall lower and standard upper ball joints.
  • Easily change shocks and springs at the track with UMI's unique quick change system.
  • 850 lb/in race proven spring rates for exceptional handling.
  • UMI rebound adjustable monotube shock with road race valving, 40 clicks of adjustment.
  • 1-5/16 inch solid sway bar with swivel end links to balance kit properly.
  • Bump steer kit for fine tuning.
  • Thrust bearings and adjusting wrench included for easy height changes.
  • Raced and tested on UMI equipped 2nd generation F-bodies across the country.
  • All UMI Suspension components are designed and manufactured in the USA.

Part Notes

Due to increased demand and supplier delays, this item may take longer than normal to arrive during this time. Please click HERE for more information.


If kit is used on a 1970-71 Camaro, the center link and inner tie rods must be used from a 1972-81 Camaro for the correct bump steer fitment.



Parts Application:

Average Customer Review: Not yet rated

Click here to write an review and share your thoughts with others.

Part Notes:

Due to increased demand and supplier delays, this item may take longer than normal to arrive during this time. Please click HERE for more information.


If kit is used on a 1970-71 Camaro, the center link and inner tie rods must be used from a 1972-81 Camaro for the correct bump steer fitment.


Warranty: UMI Performance warrants all UMI Performance products for a period of two (2) years from the original date of purchase. This warranty is valid against defects in materials and workmanship for the two (2) year warranty period.
