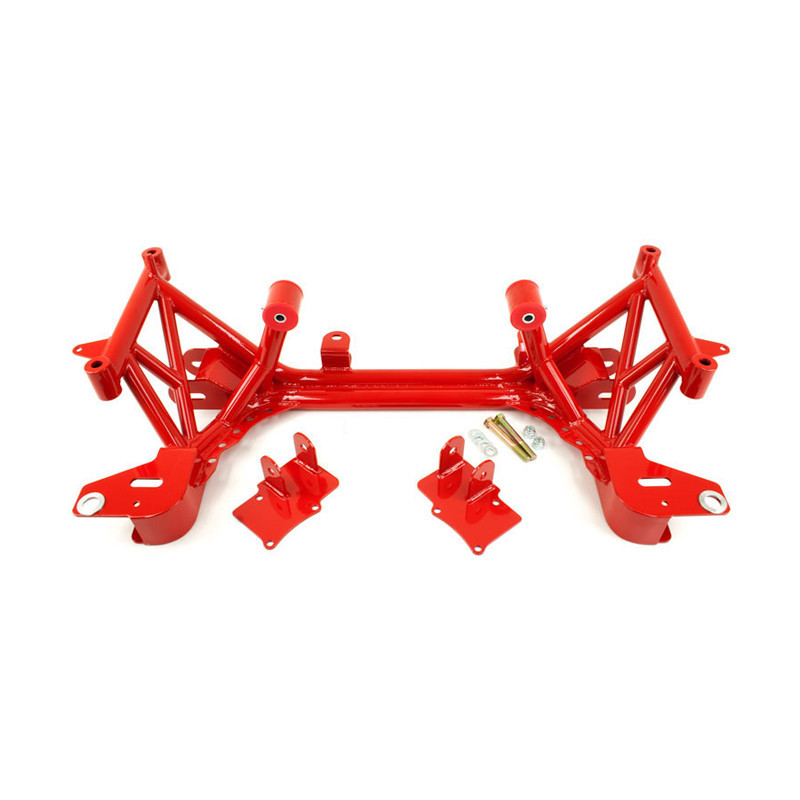

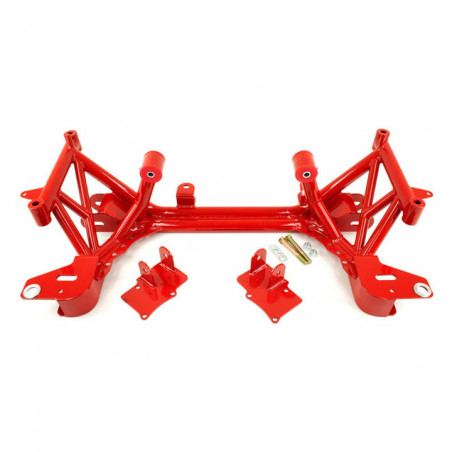

1993-1997 Camaro UMI SBC/BBC K-Member, Road Race Version, Red: 2324-R

Product May Vary From Above Listed Image

When it comes to serious racing you want an item built to withstand high amounts of abuse to prevent failure that could lead to down time and extra cost. Our road race version K-member is designed for the serious racer that exposes their vehicle to more stress than any street car will ever experience. We take are already over-built street K-member and improve it even more by using additional 1.000 inch tubing and tying together crucial areas. These areas are exposed to more stress from a road race vehicle than a street or drag race vehicle would ever apply. This item weighs in at 3lbs more than our standard version but still maintains a much needed weight savings.

This K-member allows the installation of a traditional Camaro small block or big block into a 1993-2002 Camaro. The UMI tubular K-member features integrated polyurethane mount mounts and fabricated mounting clam shells for maximum weight savings and installation ease. K-member includes power steering rack mounts and is a direct bolt in application.

Features:

  • Main center tube constructed of 1.500 in. x 0.120 in. DOM seamless steel tubing
  • Additional cross braces use 1.250 in. x 0.120 in. DOM seamless steel tubing
  • Entire k-member features both TIG & MIG welded construction for superior strength
  • Front & rear a-arm mounts CNC machined & fabricated from 0.188 in. thick steel
  • Rear a-arm mounts gusseted to withstand extreme side loads & pressure
  • Dual tube center section adds increased strength over any competitors design
  • All mounting plates are CNC machined to ensure hole to hole accuracy
  • Factory locator pins included for easy installation & exact fit
  • Completely fixture welded to ensure factory fitment with no grinding or cutting
  • Standard power steering rack mounts included
  • Durable powder coat finish, available bright red or gloss black
  • Automatically reduces 25 lbs. of front end weight
  • Offers additional clearance for headers & turbo piping
  • A-arm slots lengthened 1/2 in. over factory for additional adjustment
  • Rear main cross tube lowered for oil pan protection & coverage
  • Uses integrated motor mounts for maximum weight reduction

Retail Price

$941.95

Your Price

$799.95

You Save: 15%

15.08%)
  • Ground Up Part # UMI-2324-R
  • Manufacturer Part # 2324-R
  • Brand UMI Performance
  • Sold As: Each
  • Eligible For Discounting w/ Promo Code No
  • Eligible For Free Shipping w/ Promo Code Yes
  • Shipping Details: This item ships in multiple oversize boxes.


When it comes to serious racing you want an item built to withstand high amounts of abuse to prevent failure that could lead to down time and extra cost. Our road race version K-member is designed for the serious racer that exposes their vehicle to more stress than any street car will ever experience. We take are already over-built street K-member and improve it even more by using additional 1.000 inch tubing and tying together crucial areas. These areas are exposed to more stress from a road race vehicle than a street or drag race vehicle would ever apply. This item weighs in at 3lbs more than our standard version but still maintains a much needed weight savings.

This K-member allows the installation of a traditional Camaro small block or big block into a 1993-2002 Camaro. The UMI tubular K-member features integrated polyurethane mount mounts and fabricated mounting clam shells for maximum weight savings and installation ease. K-member includes power steering rack mounts and is a direct bolt in application.

Features:
  • Main center tube constructed of 1.500 in. x 0.120 in. DOM seamless steel tubing
  • Additional cross braces use 1.250 in. x 0.120 in. DOM seamless steel tubing
  • Entire k-member features both TIG & MIG welded construction for superior strength
  • Front & rear a-arm mounts CNC machined & fabricated from 0.188 in. thick steel
  • Rear a-arm mounts gusseted to withstand extreme side loads & pressure
  • Dual tube center section adds increased strength over any competitors design
  • All mounting plates are CNC machined to ensure hole to hole accuracy
  • Factory locator pins included for easy installation & exact fit
  • Completely fixture welded to ensure factory fitment with no grinding or cutting
  • Standard power steering rack mounts included
  • Durable powder coat finish, available bright red or gloss black
  • Automatically reduces 25 lbs. of front end weight
  • Offers additional clearance for headers & turbo piping
  • A-arm slots lengthened 1/2 in. over factory for additional adjustment
  • Rear main cross tube lowered for oil pan protection & coverage
  • Uses integrated motor mounts for maximum weight reduction

Part Notes

Due to increased demand and supplier delays, this item may take longer than normal to arrive during this time. Please click HERE for more information.


Although this K-member allows easy installation of a small block or big block Chevrolet engine modifications to firewall and other areas may be necessary for proper engine clearance.



Parts Application:



Part Notes:

Due to increased demand and supplier delays, this item may take longer than normal to arrive during this time. Please click HERE for more information.


Although this K-member allows easy installation of a small block or big block Chevrolet engine modifications to firewall and other areas may be necessary for proper engine clearance.


Warranty: UMI Performance warrants all UMI Performance products for a period of two (2) years from the original date of purchase. This warranty is valid against defects in materials and workmanship for the two (2) year warranty period.
