1993-2002 Camaro UMI Corner Max Front End Kit, Red: 207207-R

Product May Vary From Above Listed Image

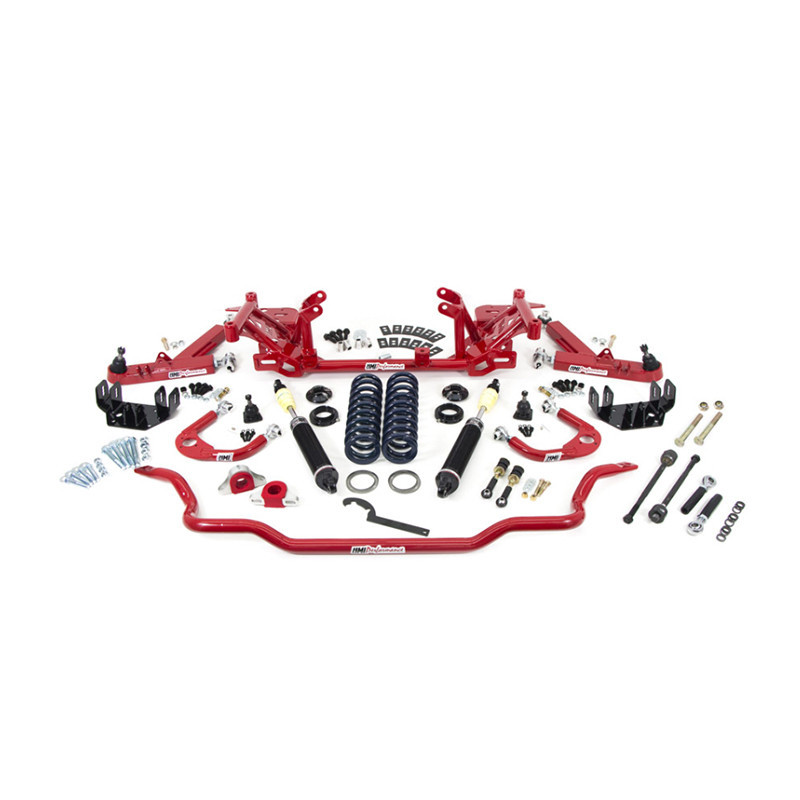

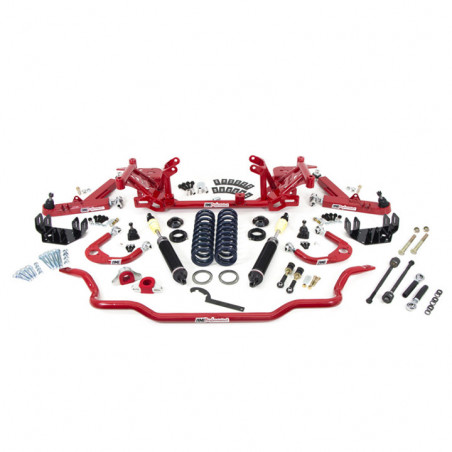

UMI's Corner Max front end kit is a complete corner carving, autocross and road race solution for the 4th gen 1993-2002 Camaro platform. Corner Max products optimize contact patch with a combination of increased caster and roll center height optimization, along with camber gain and bump steer improvements. This kit features UMI Afco rebound adjustable monotube shocks designed by multi-time SCCA solo champion Sam Strano. The kit includes caster corrected boxed lower arms as well as adjustable tubular upper a-arms. Together, these arms can achieve up to 9 degrees caster while maintaining factory wheelbase. Also included are bolt-in upper mounts to take the place of the corrosion-prone factory mounts and permit roll center height and camber gain adjustment. The UMI twin tube k-member is optimized with a raised roll center height to provide crisp slalom response and less body roll. A race proven heavy-duty bump steer kit and UMI's popular 35mm tubular sway bar rounds out the package. Expect the UMI Corner Max system to dramatically improve cornering performance while still providing a crisp daily drive worthy experience.

Features:

  • Kit is perfect for auto-x and track day cars also used for street corner carving or daily driving
  • Kit includes Strano tuned rebound adjustable monotube shocks built in USA by Afco as well as Made in USA 850 lb Hypercoils
  • K-member features UMI's exclusive roll center optimization and instantly trims 25 lbs off the front of the car
  • A-arm geometry adds caster without affecting wheelbase
  • Upper a-arm mount features three pickup point choices to further optimize roll center and camber gain
  • UMI light weight tubular UMI-2112 sway bar included (35mm)
  • Heavy duty bump steer kit built specifically for racing use (requires spindle drilling)

Your Price

$3,499.95

  • Ground Up Part # UMI-207207-R
  • Manufacturer Part # 207207-R
  • Brand UMI Performance
  • Sold As: Kit
  • Eligible For Discounting with Coupon No
  • Eligible For Free Shipping with Coupon No
  • Shipping Details: This item ships in multiple oversize boxes.


UMI's Corner Max front end kit is a complete corner carving, autocross and road race solution for the 4th gen 1993-2002 Camaro platform. Corner Max products optimize contact patch with a combination of increased caster and roll center height optimization, along with camber gain and bump steer improvements. This kit features UMI Afco rebound adjustable monotube shocks designed by multi-time SCCA solo champion Sam Strano. The kit includes caster corrected boxed lower arms as well as adjustable tubular upper a-arms. Together, these arms can achieve up to 9 degrees caster while maintaining factory wheelbase. Also included are bolt-in upper mounts to take the place of the corrosion-prone factory mounts and permit roll center height and camber gain adjustment. The UMI twin tube k-member is optimized with a raised roll center height to provide crisp slalom response and less body roll. A race proven heavy-duty bump steer kit and UMI's popular 35mm tubular sway bar rounds out the package. Expect the UMI Corner Max system to dramatically improve cornering performance while still providing a crisp daily drive worthy experience.

Features:
  • Kit is perfect for auto-x and track day cars also used for street corner carving or daily driving
  • Kit includes Strano tuned rebound adjustable monotube shocks built in USA by Afco as well as Made in USA 850 lb Hypercoils
  • K-member features UMI's exclusive roll center optimization and instantly trims 25 lbs off the front of the car
  • A-arm geometry adds caster without affecting wheelbase
  • Upper a-arm mount features three pickup point choices to further optimize roll center and camber gain
  • UMI light weight tubular UMI-2112 sway bar included (35mm)
  • Heavy duty bump steer kit built specifically for racing use (requires spindle drilling)

Part Notes

Due to increased demand and supplier delays, this item may take longer than normal to arrive during this time. Please click HERE for more information.





Parts Application:

Average Customer Review: Not yet rated

Click here to write an review and share your thoughts with others.

Part Notes:

Due to increased demand and supplier delays, this item may take longer than normal to arrive during this time. Please click HERE for more information.




Warranty: UMI Performance warrants all UMI Performance products for a period of two (2) years from the original date of purchase. This warranty is valid against defects in materials and workmanship for the two (2) year warranty period.
