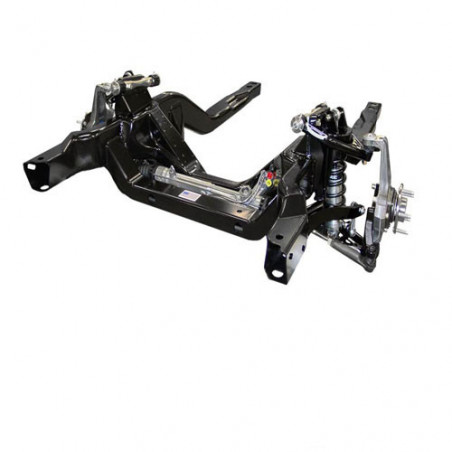

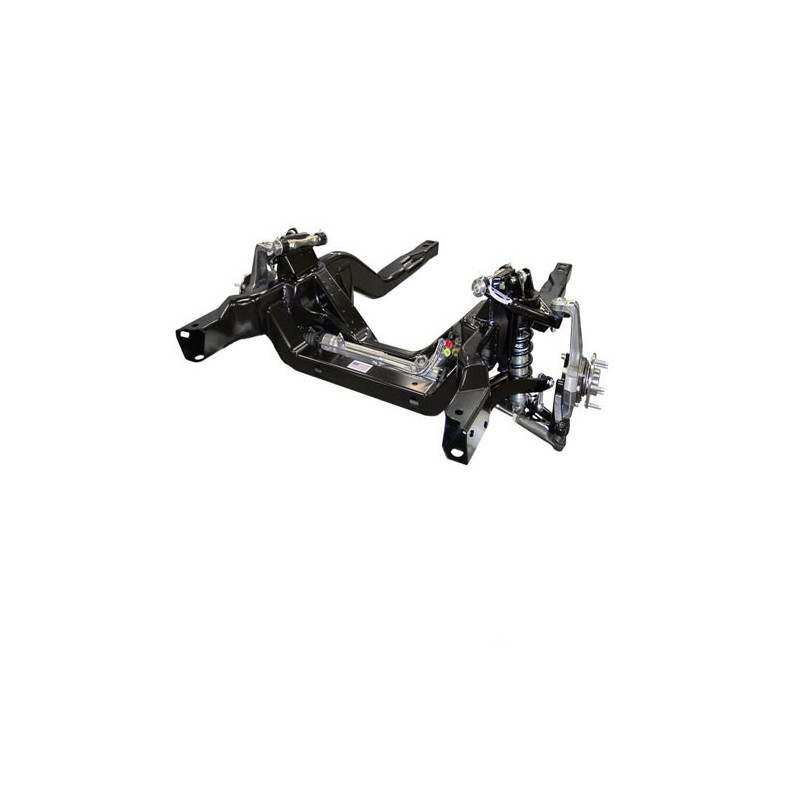

1970-1981 Camaro Big Block Detroit Speed Hydroformed Subframe, Assembled

Product May Vary From Above Listed Image

Detroit Speed's front subframe is a bolt-in replacement for the original stock subframe. It improves the handling and ride quality by utilizing DSE's unique suspension geometry. It is the ONLY subframe in the aftermarket industry with hydroformed frame rails. The hydroformed frame rails feature strength and stiffness, precise quality and repeatability. Hydroforming preserves the steel's strength and stiffness because it is performed at low temperatures, unlike traditional high temperature processes which decrease material strength.

The subframe comes complete with the following components:

  • Hydroformed Framerails
  • Stamped Crossmembers
  • Tubular Upper & Lower Control Arms
  • DSE/JRi Coilover Shocks with 'Detroit Tuned' Valving
  • Torrington Bearings
  • Coilover Springs
  • 'Detroit Tuned' Power Rack and Pinion Steering
  • Splined Anti-Roll Bar
  • Forged DSE Spindle
  • Spanner Tool for easy shock adjustments
  • Composite Anti-Roll Bar Bushings

Up to a 10 inch wide wheel can be packaged without modification to the inner wheel wells. Both the main and secondary crossmembers are stamped for structural rigidity. SBC, BBC, LS1, LS2 and LS7 engines have been designed as a direct bolt-in into this subframe

Must use at least 17 inch wheels that require a minimum inside wheel diameter of 16.250 inches.

The DSE subframe has been designed, engineered, and developed for the road and track. This subframe blends the benefits of current OEM technology and aftermarket performance in one product.

Base Shock: The DSE/JRi 'Detroit Tuned' base shock is a pure blood pedigree racing shock in its most efficient form as a non-adjustable unit. Although non-adjustable, it shares all the increased dynamic responses of all the JRi adjustable models while providing excellent ride quality on the street.

Hydroformed Subframe Specifications:
  • Nominal Camber: -0.5 deg.
  • Nominal Caster: +4.5 deg. (adjustable to 5.5 deg.)
  • Total Suspension Travel: 6.0 inches
  • Total Bumpsteer, 30 inch Toe-Span: 0.084 inch Over 6 inches of Travel
  • Turning Angle (18 in. x 10 in. or 17 in. x 9 in. Wheels): 30.0 deg.
  • Ackerman Angle (18 in. x 10 in. or 17 in. x 9 in. Wheels): 2.5 deg.
  • Turning Angle (18 in. x 9 in. Wheels): 33.8 deg.
  • Ackerman Angle (18 in. x 9 in. Wheels): 3.5 deg.

Retail Price

$10443.99

Your Price

$9,399.99

You Save: 10%

10.00%)
  • Ground Up Part # DSE032015
  • Manufacturer Part # 032015
  • Brand Detroit Speed
  • Sold As: Kit
  • Eligible For Discounting with Coupon No
  • Eligible For Free Shipping with Coupon No
  • Shipping Details: Ships truck freight to a commercial address.


Detroit Speed's front subframe is a bolt-in replacement for the original stock subframe. It improves the handling and ride quality by utilizing DSE's unique suspension geometry. It is the ONLY subframe in the aftermarket industry with hydroformed frame rails. The hydroformed frame rails feature strength and stiffness, precise quality and repeatability. Hydroforming preserves the steel's strength and stiffness because it is performed at low temperatures, unlike traditional high temperature processes which decrease material strength.

The subframe comes complete with the following components:
  • Hydroformed Framerails
  • Stamped Crossmembers
  • Tubular Upper & Lower Control Arms
  • DSE/JRi Coilover Shocks with 'Detroit Tuned' Valving
  • Torrington Bearings
  • Coilover Springs
  • 'Detroit Tuned' Power Rack and Pinion Steering
  • Splined Anti-Roll Bar
  • Forged DSE Spindle
  • Spanner Tool for easy shock adjustments
  • Composite Anti-Roll Bar Bushings

Up to a 10 inch wide wheel can be packaged without modification to the inner wheel wells. Both the main and secondary crossmembers are stamped for structural rigidity. SBC, BBC, LS1, LS2 and LS7 engines have been designed as a direct bolt-in into this subframe

Must use at least 17 inch wheels that require a minimum inside wheel diameter of 16.250 inches.

The DSE subframe has been designed, engineered, and developed for the road and track. This subframe blends the benefits of current OEM technology and aftermarket performance in one product.

Base Shock: The DSE/JRi 'Detroit Tuned' base shock is a pure blood pedigree racing shock in its most efficient form as a non-adjustable unit. Although non-adjustable, it shares all the increased dynamic responses of all the JRi adjustable models while providing excellent ride quality on the street.

Hydroformed Subframe Specifications:
  • Nominal Camber: -0.5 deg.
  • Nominal Caster: +4.5 deg. (adjustable to 5.5 deg.)
  • Total Suspension Travel: 6.0 inches
  • Total Bumpsteer, 30 inch Toe-Span: 0.084 inch Over 6 inches of Travel
  • Turning Angle (18 in. x 10 in. or 17 in. x 9 in. Wheels): 30.0 deg.
  • Ackerman Angle (18 in. x 10 in. or 17 in. x 9 in. Wheels): 2.5 deg.
  • Turning Angle (18 in. x 9 in. Wheels): 33.8 deg.
  • Ackerman Angle (18 in. x 9 in. Wheels): 3.5 deg.


Instructions: Download Instructions

Part Notes
Assembled. Subframe is satin black; upper and lower control arms and sway bar are gloss black. Stock engine mounts can be used.

Parts Application:

Average Customer Review: Not yet rated

Click here to write an review and share your thoughts with others.

Part Notes: Assembled. Subframe is satin black; upper and lower control arms and sway bar are gloss black. Stock engine mounts can be used.
Instructions: Download Instructions
