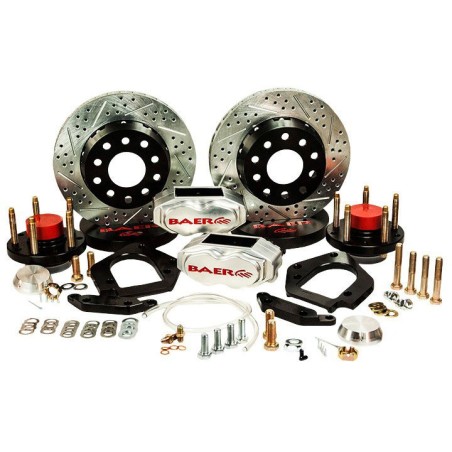

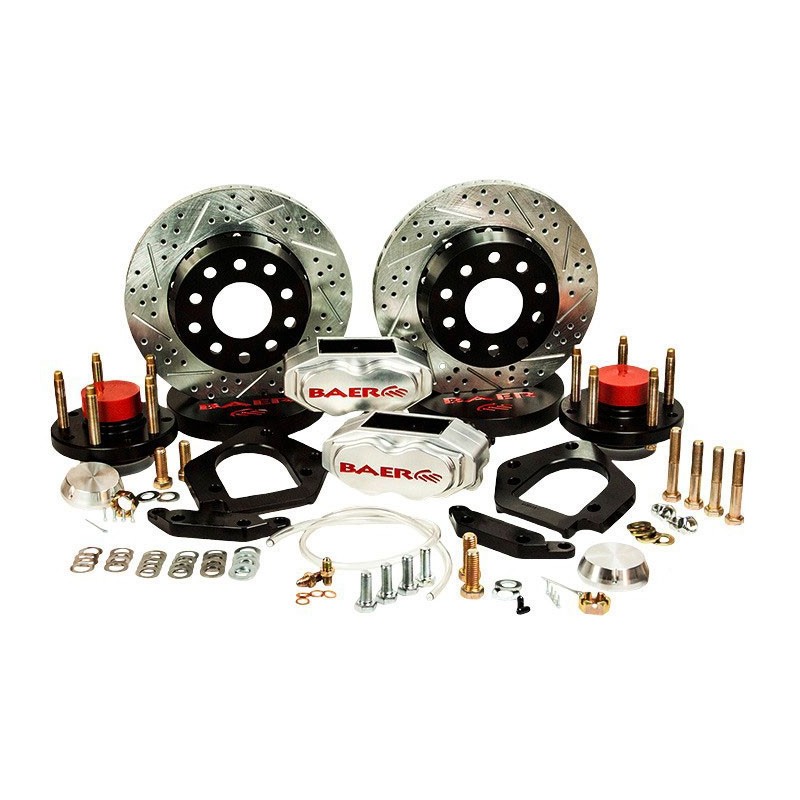

1970-1981 Camaro Baer Brakes 11 Inch SS4+ Deep Stage Drag Race Front Brake System Clear Anno Cali 4301452C

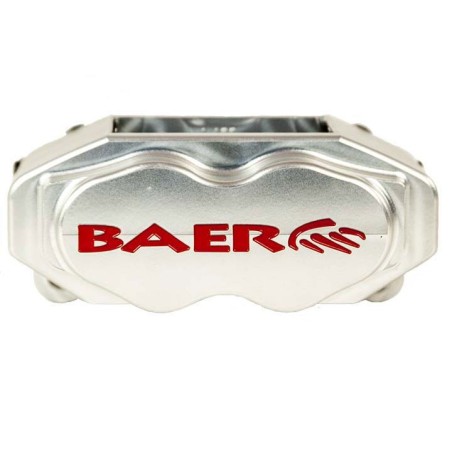

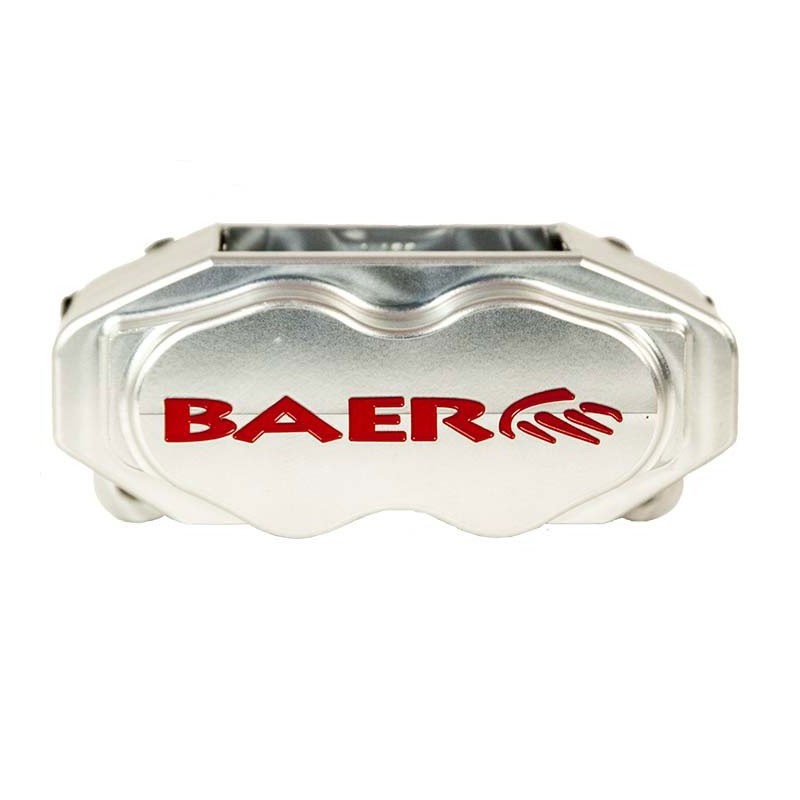

If you are looking for some serious stopping power for your 1970-1981 A-body with B-body large pins spindles, Baer brakes has you covered! This system features the 4-piston, S4 caliper mounted to a 11 inch 2 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease, ARP _� race studs and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware. Mounting brackets and hardware are also included. The SS4+ Deep Stage system is the first drag race system designed specifically for heavy, fast cars that might also see street use. The 11 inch SS4+ Deep Stage system fits most 15 inch and larger wheels. Rotor Style:11 X 1.02 Inch 2-piecePiston Count: 4 PistonPad Type:(DR1-N-MOD)Minimum Wheel Size:15 inch or largerIncludes: Calipers, Brake pads, Rotor and Hat assemblies, Billet aluminum hubs w/premium bearings, ARP studs, Billet dust caps, Brackets, -3AN fittings w/ copper crush washers. Does not include spindles or brake hoses.Notes:Designed to be used with GM B-Body Big Pin spindle, contact Baer for spindle vehicle donor list. Requires spindle modification.Applications:1970-1981 A-body with B-body large pins spindles Kit Features:4-piston, 2-piece design with 4, 10mm cross bolts for maximum stiffnessInternal crossover designStainless steel abutments and noise suppression springsHard anodized aluminum pistonsUses a common 4 piston pad for easy replacementsUses correct banjo style fittings, Baer does not use any pipe threadIncludes a set of modified spindles and comes pre-assembled ready for installationStainless braided hoses included100% MADE IN USA with US sourced material>

Manufacturer Part Number : 4301452C

Part Notes:

DESIGNED TO BE USED WITH GM B-BODY "BIG PIN" SPINDLE, CONTACT BAER FOR SPINDLE VEHICLE DONOR LIST. THIS SYSTEM COMES EQUIPPED WITH A HIGH FRICTION PAD THAT IS OPTIMIZED FOR DRAG RACE APPLICATIONS. THESE PADS OFTEN PRODUCE MORE DUST AND NOISE.
