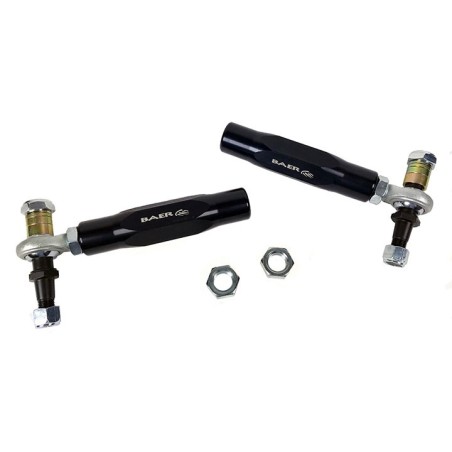

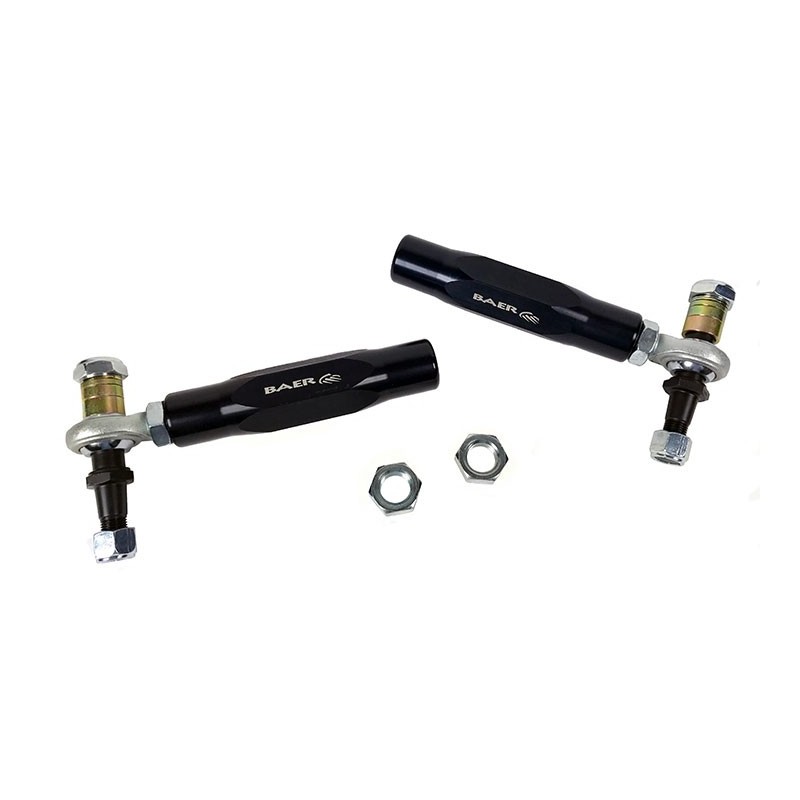

1970-1974 Camaro Baer Tracker Adjustable Tie Rod Ends 3301012

The Baer Tracker adjustable tie-rods feature 6061 T-6 aluminum, fully machined sleeve with a black anodized finish, a Teflon lined 5/8 inch heim joint and 4140 steel pin which. The pin is machined with the correct taper so no modification to the OE spindles is required and then heat treated. The Trackers Tie Rods are vehicle specific, mounting to the OE inner tie rod and offer approximately .875 inch of adjustment at the spindle to help correct bump steer issues due to modified suspensions and/or poor OE design. Best of all these are made in the USA! Sleeve Length:6.600 inchInner sleeve thread size:11/16 inch x18 LH ThreadOuter sleeve thread size:5/8 inch x18 RH ThreadHeim:5/8 inch x 5/8 inch Teflon linedApplications:1970-1974 GM F-Body with stock spindles Kit Features:Direct bolt on upgradeFully adjustableSimple installationTapered pin for NO spindle modificationsVehicle specific

Manufacturer Part Number : 3301012

Part Notes:

1970-74 GM F-BODY CARS WITH STOCK SPINDLES.1975 PONTIAC FIREBIRD WITH STOCK SPINDLES NOTE: THERE ARE 2 FACTORY TIE RODS ON THE 1975 FIREBIRD. THIS TRACKER IS FOR EARLY DESIGN WITH OE OUTER END MEASURING 5.750 INCH FROM CENTER OF BOWL TO END OF TIE ROD.
